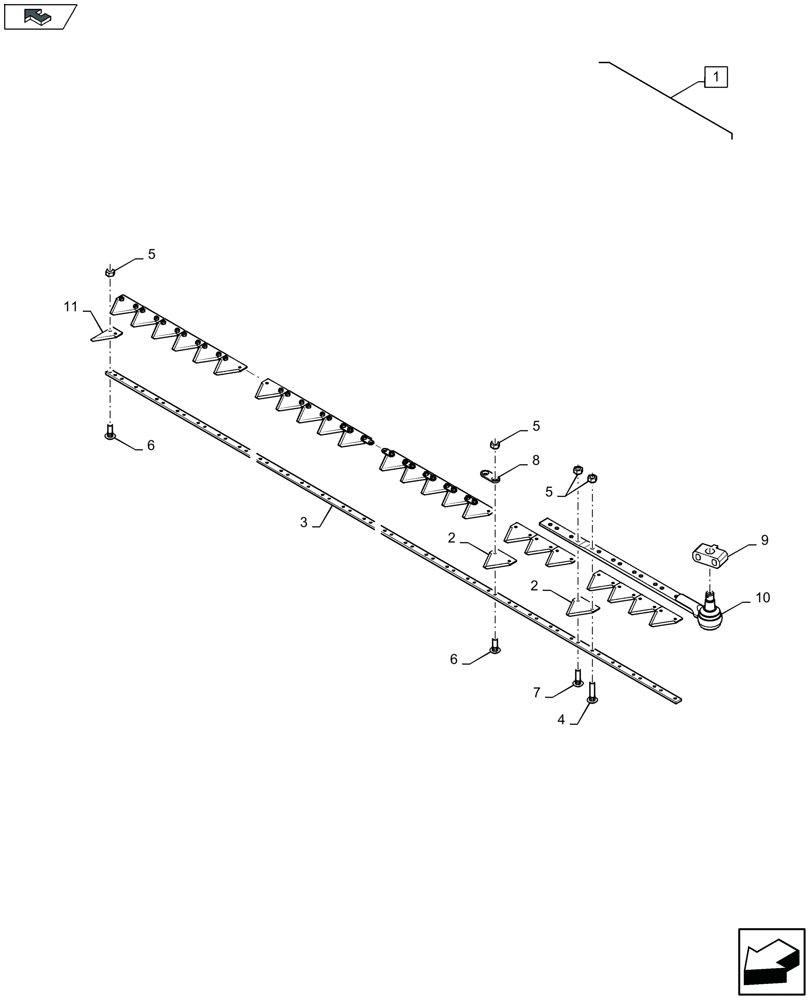

Запчасти Case IH 3050-30FT (88.058.023) - DIA KIT : KNIFE - GREEN CONDITIONS - C954 (88) - ACCESSORIES

1

84162061

DIA KIT, HARVESTER

Incl 2 - 11

1шт.

2

87728900

KNIFE SECTION

120шт.

3

84141413

KNIFE HOLDER

1шт.

4

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

9шт.

5

84429102

LOCK NUT

242шт.

6

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

229шт.

7

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

4шт.

8

87544154

KNIFE CLIP

18шт.

9

87644006

COUPLING BLOCK

1шт.

10

87719766

KNIFE HEAD

1шт.

11

87736075

KNIFE SECTION

1шт.
