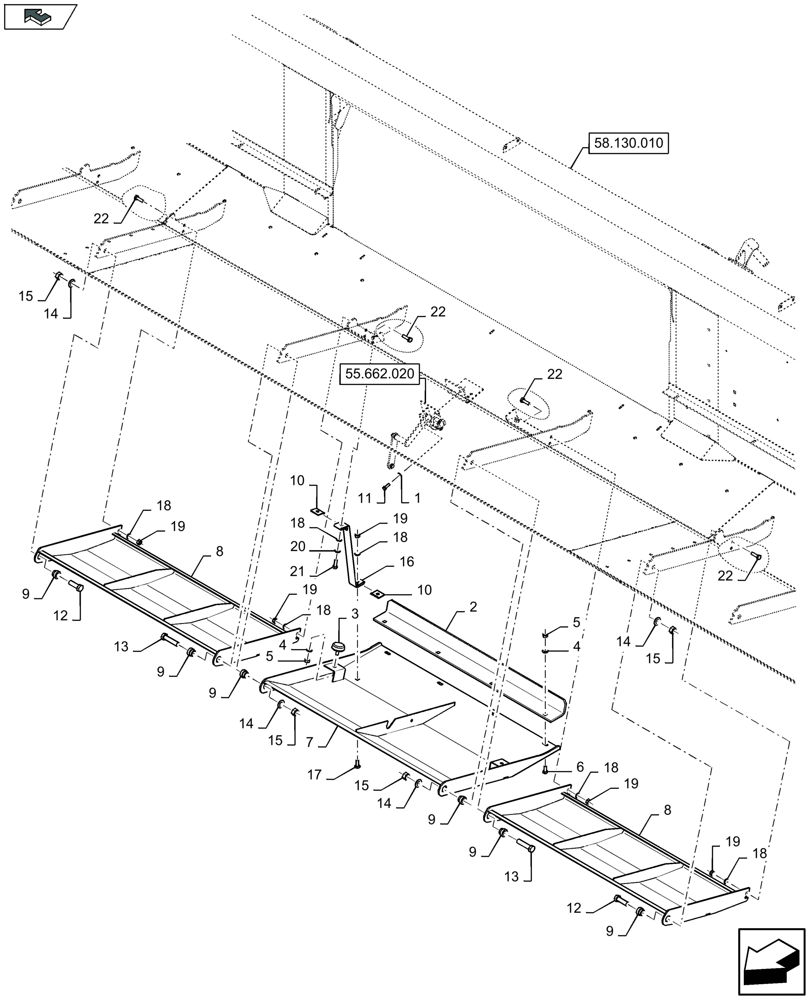

Запчасти Case IH 3050-30FT (58.130.141) - SKID PLATES, CENTER - C051 (58) - ATTACHMENTS/HEADERS

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

2

84161479

PLATE

1шт.

3

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

5

100016

NUT,M10 x 1.5, Cl 8

6шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

7

87723710

SKID PLATE

,, Serial Range: -C941

1шт.

7

84161474

SKID PLATE

,, Start Serial: D942

1шт.

8

87723719

SKID PLATE

2шт.

FOR 35 FT ONLY

1шт.

8

84149355

SKID PLATE

2шт.

FOR 30 FT ONLY

1шт.

9

87728003

BUSHING

6шт.

10

84036081

CLAMP,12mm ID, 11mm Bolt Hole, J Type

4шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

12

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

13

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

14

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

,, Serial Range: -C949

4шт.

14

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

,, Start Serial: D950

4шт.

15

100020

NUT,M16 x 2.0, Cl 8

,, Serial Range: -C949

4шт.

15

86000441

NUT,M16 x 2.0, Cl 8

,, Start Serial: D950

4шт.

16

87619973

STRIP

2шт.

17

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

,, Serial Range: -C949

8шт.

18

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

,, Start Serial: D950

8шт.

19

84442904

LOCK NUT,M10 x 1.5, Cl 8.8

,, Serial Range: -C949

6шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

,, Start Serial: D950

6шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

22

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.
