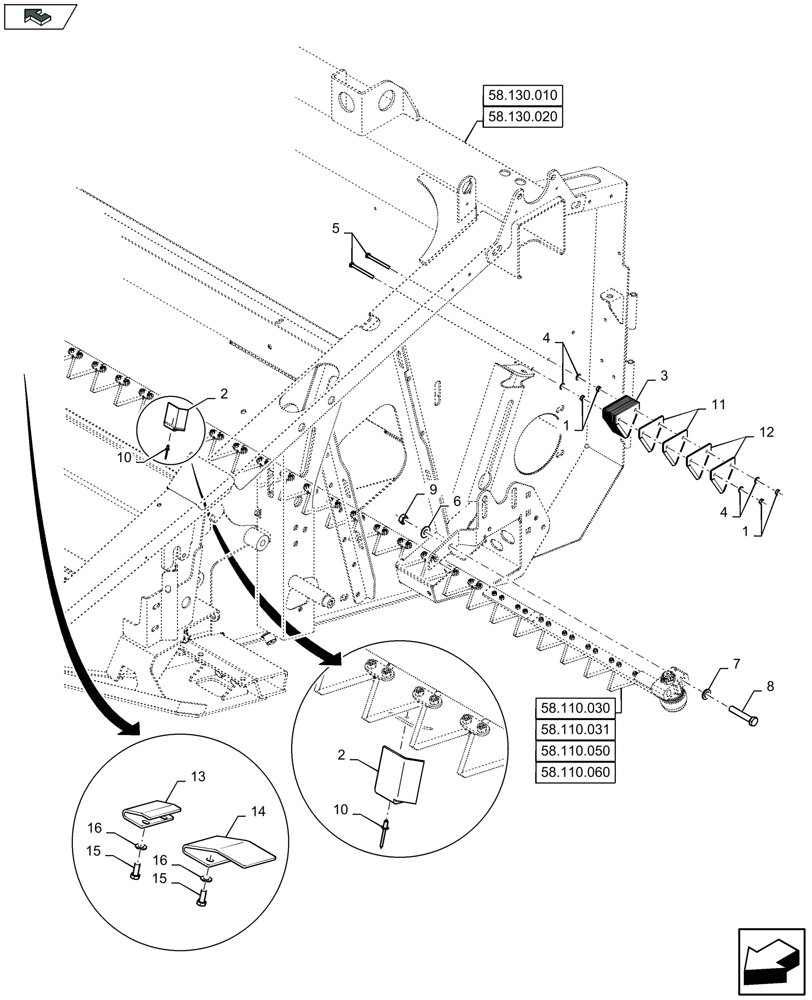

Справочник запчастей Case IH 3050-25FT L (58.110.210) - SPARE KNIFE (58) - ATTACHMENTS/HEADERS со схемами

1

9706755

NUT,M6, Cl 8

4шт.

2

87677527

PLATE

5шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

7шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

9шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

6шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

8шт.

FOR 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

9шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

10шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

2

87677527

PLATE

12шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

3

87728899

KNIFE SECTION

, Serial Range: -C104

14шт.

3

47980548

KNIFE SECTION

, Start Serial: D105

14шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

5

397985

BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Serial Range: -C003

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

, Start Serial: D004

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

, Serial Range: -C003

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

7

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

, Start Serial: D004

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

7

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

8

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

, Serial Range: -C003

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

8

120092

BOLT,M16 x 70mm, Cl 8.8

, Start Serial: D004

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

8

120092

BOLT,M16 x 70mm, Cl 8.8

4шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

9

337475

NUT,M12, Cl 10

, Serial Range: -C003

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

9

100020

NUT,M16 x 2.0, Cl 8

, Start Serial: D004

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

9

100020

NUT,M16 x 2.0, Cl 8

4шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

7шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

9шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

10

14642091

RIVET,Pop, M3.29mm OD x 12mm L

,, Serial Range: -C955

8шт.

FOR 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

,, Start Serial: D956

8шт.

FOR 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

10

14642091

RIVET,Pop, M3.29mm OD x 12mm L

,, Serial Range: -C955

9шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

,, Start Serial: D956

9шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

10

14642091

RIVET,Pop, M3.29mm OD x 12mm L

,, Serial Range: -C955

10шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

,, Start Serial: D956

10шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

12шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

11

87728899

KNIFE SECTION

, Serial Range: -C104

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

11

47980548

KNIFE SECTION

, Start Serial: D105

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

11

84468785

KNIFE SECTION

, Serial Range: -C061

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

11

47702539

KNIFE SECTION

, Serial Range: -F062104

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

11

47980557

KNIFE SECTION

, Start Serial: D105

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

12

87728899

KNIFE SECTION

, Serial Range: -C104

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

12

47980548

KNIFE SECTION

, Start Serial: D105

2шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

12

84468783

KNIFE SECTION

, Serial Range: -C061

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

12

47702538

KNIFE SECTION

, Serial Range: -F062104

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

12

47980555

KNIFE SECTION

, Start Serial: D105

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

13

47474185

PLATE

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

14

47474182

PLATE

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.
