Запчасти Case IH 3050-25FT L (58.101.050) - REEL DISCS (58) - ATTACHMENTS/HEADERS

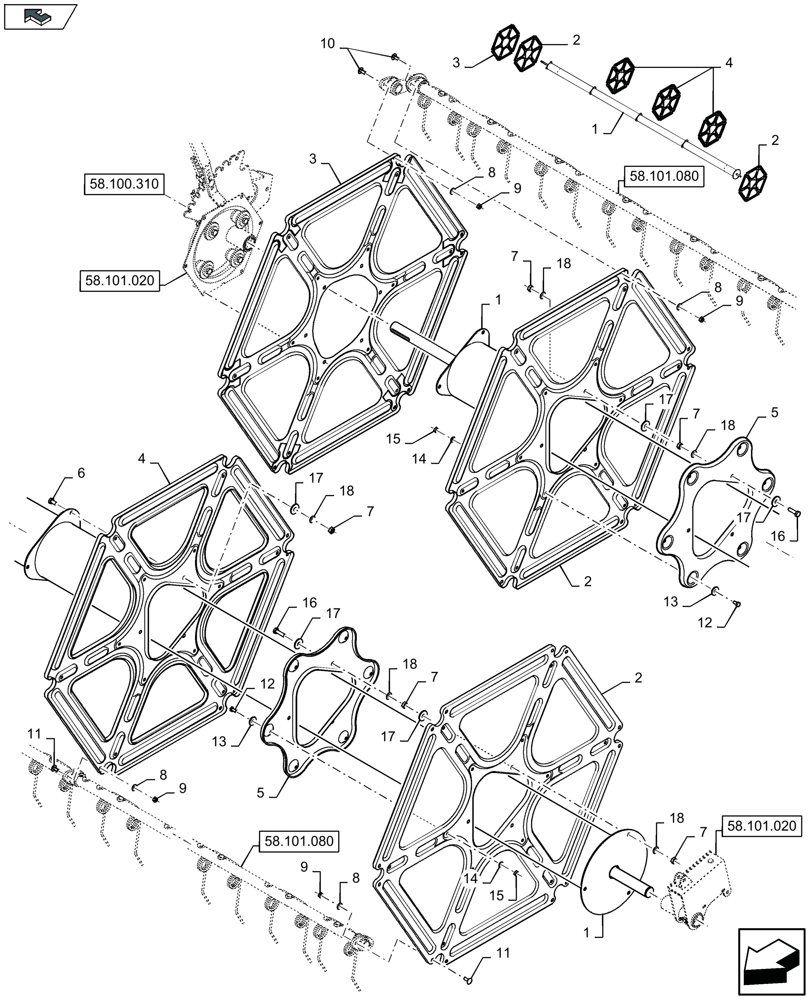

Схема запчастей Case IH 3050-25FT L - (58.101.050) - REEL DISCS (58) - ATTACHMENTS/HEADERS
7
58.101.080
15
58.101.020
18
14
15
18
17
17
17
3
8
3
9
12
16
18
1
14
5
1
12
home
58.100.310
18
17
9
6
2
7
5
4
18
13
16
2
7
2
4
7
58.101.020
2
13
9
8
7
17
9
10
58.101.080
11
8
8
11
1

Артикул

Название

Примечание

Количество

1

84584471

TUBE

, Serial Range: -C027

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

1

47496226

TUBE

, Start Serial: D028

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

1

84583391

SHAFT

, Serial Range: -C027

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

1

47496229

SHAFT

, Start Serial: D028

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

1

84577936

SHAFT

1шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

1

84298140

TUBE

1шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

1

84164181

TUBE

1шт.

FOR 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

2

84032737

DISC

2шт.

MAINTENANCE PART

1шт.

3

84058667

DISC

1шт.

MAINTENANCE PART

1шт.

4

84400172

DISC

3шт.

MAINTENANCE PART

1шт.

5

9838272

DISC

2шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

9шт.

7

100016

NUT,M10 x 1.5, Cl 8

18шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

7

100016

NUT,M10 x 1.5, Cl 8

21шт.

FOR 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

60шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

72шт.

FOR 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

60шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

72шт.

FOR 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

10

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

24шт.

11

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

, Serial Range: -C027

36шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

11

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

, Start Serial: D028

36шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

11

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

48шт.

FOR 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

12шт.

13

140041

WASHER,M8 x 28mm OD x 3mm Thk

,, Serial Range: -C964

12шт.

13

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

,, Start Serial: D965

12шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

15

9706690

NUT,M8 x 1.25, Cl 8

1шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

17

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

18шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

17

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

21шт.

FOR 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

21шт.

FOR 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER AND 3050-25FT H-GRAIN HEADER ONLY

1шт.

Выбрано товаров: 55
