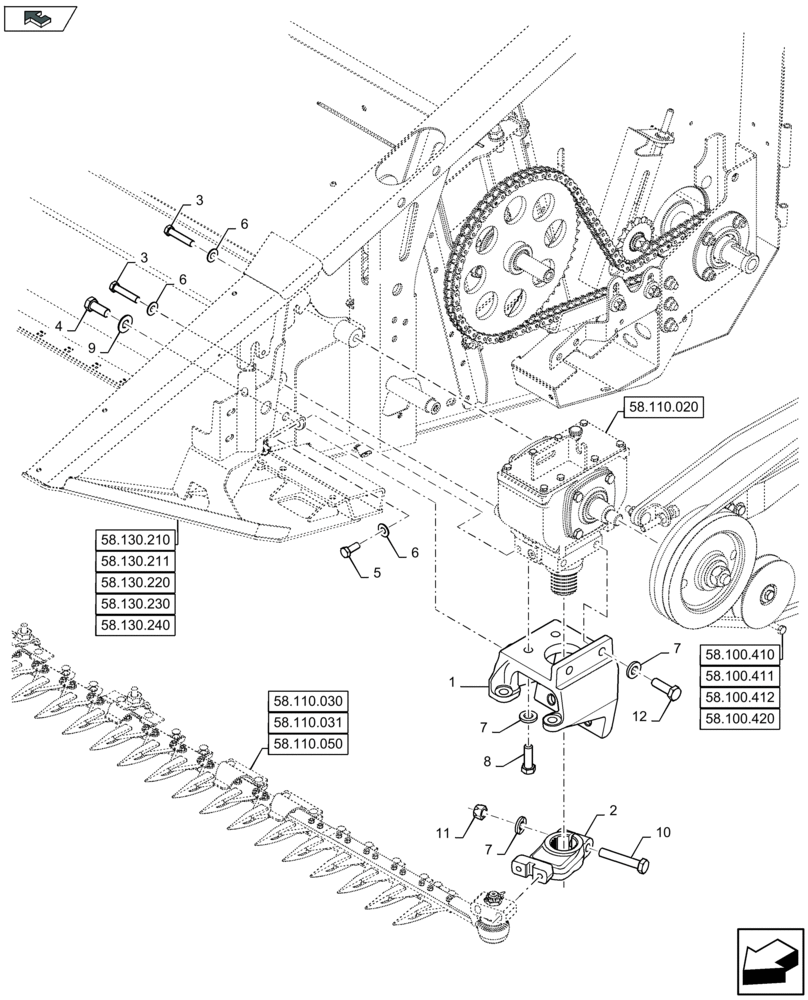

Запчасти Case IH 3050-25FT H (58.110.010) - WOBBLE BOX, SUPPORT - LH (58) - ATTACHMENTS/HEADERS

1

84136743

SUPPORT

,, Serial Range: -C941

1шт.

1

84178484

SUPPORT

,, Serial Range: -F942955

1шт.

1

84224187

SUPPORT

,, Start Serial: D956

1шт.

2

87719769

PIVOTING ARM

, Serial Range: -C003

1шт.

MAINTENANCE PART

1шт.

2

47390301

ARM

, Start Serial: D004

1шт.

MAINTENANCE PART

1шт.

3

309086

BOLT,Hex, M12 x 60, 8.8, Full Thd

2шт.

4

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

1шт.

5

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

7

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

8

15840521

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

,, Serial Range: -C965

2шт.

8

15981031

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

,, Start Serial: D966

2шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

10

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

1шт.

11

86000441

NUT,M16 x 2.0, Cl 8

1шт.

12

15840521

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

,, Serial Range: -C965

2шт.

12

11391531

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

,, Start Serial: D966

2шт.
