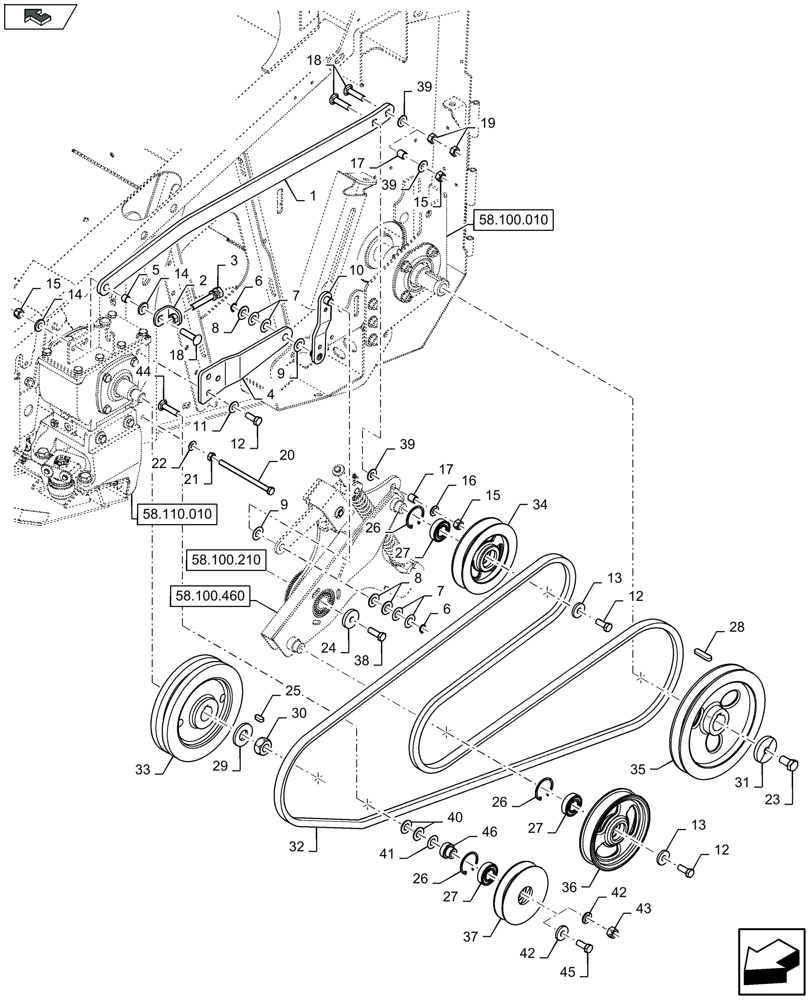

Запчасти Case IH 3050-25FT H (58.100.410) - BELT DRIVE FOR CUTTERBAR - C955 (58) - ATTACHMENTS/HEADERS

1

84138465

LEVER

,, Serial Range: -C949

1шт.

1

84143522

LEVER

,, Start Serial: D950

1шт.

2

87656043

SUPPORT

1шт.

3

87651588

BOLT,Hex Flg, M12 x 90mm, Low CST

1шт.

MAINTENANCE PART

1шт.

4

84136763

SUPPORT

,, Serial Range: -C949

1шт.

4

84143526

SUPPORT

,, Start Serial: D950

1шт.

5

87677970

BUSHING

1шт.

MAINTENANCE PART

1шт.

6

300625

SNAP RING,M16, Ext

2шт.

7

87524775

SHIM,16.3mm ID x 32mm OD x 0.5mm Thk

4шт.

8

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

3шт.

9

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

2шт.

10

84136767

LEVER

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

13

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

14

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

2шт.

15

100038

NUT,M12 x 1.75, Cl 8

,, Serial Range: -C949

2шт.

15

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

,, Start Serial: D950

3шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

17

87677971

BUSHING

,, Serial Range: -C949

1шт.

MAINTENANCE PART

1шт.

17

87677971

BUSHING

,, Start Serial: D950

2шт.

MAINTENANCE PART

1шт.

18

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

,, Serial Range: -C949

3шт.

18

87698853

CARRIAGE BOLT,Sht Sq Nk, M12 x 50mm, Cl 10.9, Full Thd

,, Start Serial: D950

3шт.

19

9706685

NUT,M12 x 1.75, Cl 8

,, Serial Range: -C949

2шт.

20

86509596

BOLT,Hex, M10 x 160mm, Cl 8.8

1шт.

21

86500689

NUT,M10 x 1.5, Cl 10

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

23

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

,, Serial Range: -C937

1шт.

23

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

,, Start Serial: D938

1шт.

24

80748068

WASHER

,, Serial Range: -C941

1шт.

24

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

,, Start Serial: D942

1шт.

25

368317

KEY,10mm x 8mm x 25mm

1шт.

26

370011

CIRCLIP,M52 x 2mm Thk, Internal

3шт.

27

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

3шт.

MAINTENANCE PART

1шт.

28

170056

KEY,12mm W x 50mm OAL

1шт.

29

87016613

WASHER,25.8mm ID x 56.5mm OD x 6mm Thk

1шт.

30

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

1шт.

31

9801067

WASHER,16.7mm ID x 63.5mm OD x 9.5mm Thk

1шт.

32

87655953

V-BELT,12.45 mm W x 4180.00 mm L

,, Serial Range: -C937

1шт.

MAINTENANCE PART

1шт.

32

84194087

BELT,22.32 mm W x 4180.00 mm L

,, Start Serial: D938

1шт.

MAINTENANCE PART

1шт.

33

87725967

DRIVEN PULLEY

1шт.

34

87646203

PULLEY

1шт.

MAINTENANCE PART

1шт.

35

84136544

PULLEY,275mm OD

1шт.

36

87655777

PULLEY

1шт.

MAINTENANCE PART

1шт.

37

87752320

PULLEY

1шт.

38

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

,, Serial Range: -C941

1шт.

38

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

,, Start Serial: D942

1шт.

39

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

,, Serial Range: -C949

1шт.

39

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

,, Start Serial: D950

3шт.

40

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

,, Serial Range: -F938952

1шт.

40

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

,, Start Serial: D953

2шт.

41

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

,, Start Serial: D938

1шт.

42

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

,, Start Serial: D938

1шт.

42

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

,, Serial Range: -C937

1шт.

43

86000441

NUT,M16 x 2.0, Cl 8

,, Start Serial: D938

1шт.

44

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

,, Start Serial: D938

1шт.

45

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Serial Range: -C937

1шт.

46

84141758

SLEEVE

,, Start Serial: D938

1шт.
