Запчасти Case IH 3050-25FT H (58.100.011) - MAIN DRIVE SHAFT - D958 (58) - ATTACHMENTS/HEADERS

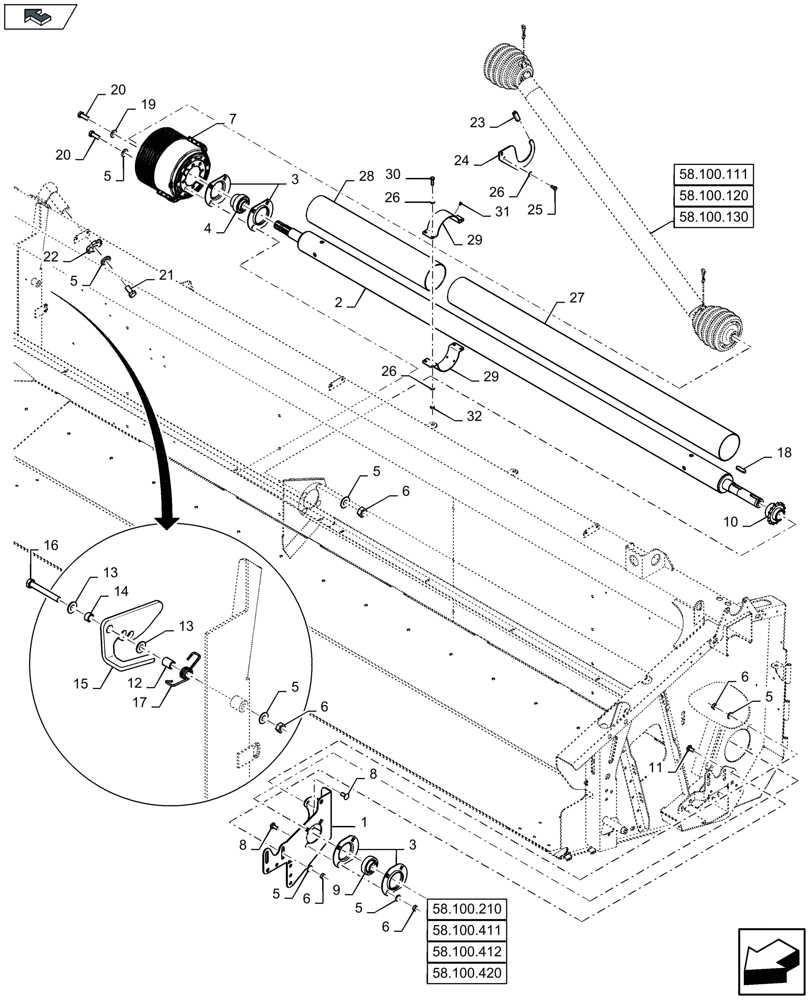

Схема запчастей Case IH 3050-25FT H - (58.100.011) - MAIN DRIVE SHAFT - D958 (58) - ATTACHMENTS/HEADERS
13
21
6
26
9
18
3
8
14
5
6
home
5
3
25
23
29
6
7
31
8
58.100.111
58.100.420
6
20
16
32
58.100.120
19
58.100.210
4
58.100.411
11
17
6
1
13
5
15
26
29
5
24
20
12
58.100.412
28
5
5
58.100.130
27
5
22
10
30
26
2

Артикул

Название

Примечание

Количество

1

84212231

BRACKET

1шт.

2

84246661

SHAFT

1шт.

FOR HEAVY 25 FT ONLY

1шт.

2

84246657

SHAFT

1шт.

FOR 30 FT ONLY

1шт.

2

84244432

SHAFT

1шт.

FOR 35 FT ONLY

1шт.

2

84583408

SHAFT

,, Start Serial: D984

1шт.

FOR 16 FT AND 18 FT ONLY

1шт.

2

84577620

SHAFT

,, Start Serial: D984

1шт.

FOR 20 FT ONLY

1шт.

2

84538798

SHAFT

,, Start Serial: D982

1шт.

FOR 22 FT ONLY

1шт.

2

84468100

SHAFT

,, Start Serial: D982

1шт.

FOR LIGHT 25 FT ONLY

1шт.

3

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

4

84240146

BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

6

9706685

NUT,M12 x 1.75, Cl 8

11шт.

7

84267177

SHIELD

1шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

9

84057307

BALL BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

10

84176439

SPROCKET ASSY.

1шт.

MAINTENANCE PART

1шт.

11

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

12

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

13

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

14

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

15

87033816

CLIP

1шт.

16

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

17

87026147

SPRING

1шт.

18

170056

KEY,12mm W x 50mm OAL

1шт.

19

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

20

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

FOR HEAVY 25 FT ONLY

1шт.

FOR 30 FT ONLY

1шт.

FOR 35 FT ONLY

1шт.

FOR 20 FT ONLY

1шт.

FOR 22 FT ONLY

1шт.

FOR LIGHT 25 FT ONLY

1шт.

20

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

FOR 16 FT AND 18 FT ONLY

1шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

,, Serial Range: -C964

1шт.

22

84175969

GUIDE RING

,, Serial Range: -C964

1шт.

23

9850033

SEAL

,, Start Serial: D965

1шт.

24

84313189

HOOK

,, Start Serial: D965

1шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

,, Start Serial: D965

2шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

,, Serial Range: -C051

2шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D052

12шт.

27

47551338

SHIELD

, Start Serial: D052

1шт.

FOR 30 FT ONLY

1шт.

FOR 35 FT ONLY

1шт.

28

47642476

SHIELD

, Start Serial: D052

1шт.

FOR 35 FT ONLY

1шт.

29

47558310

CLAMP

, Start Serial: D052

2шт.

FOR 30 FT ONLY

1шт.

FOR 35 FT ONLY

1шт.

30

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

, Start Serial: D052

4шт.

FOR 30 FT ONLY

1шт.

FOR 35 FT ONLY

1шт.

31

331619

SELF-TAP SCREW,Hex, M4.8 x 1.8 x 9.5mm

, Start Serial: D052

4шт.

FOR 30 FT ONLY

1шт.

FOR 35 FT ONLY

1шт.

32

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D052

6шт.

FOR 30 FT ONLY

1шт.

FOR 35 FT ONLY

1шт.

Выбрано товаров: 68
