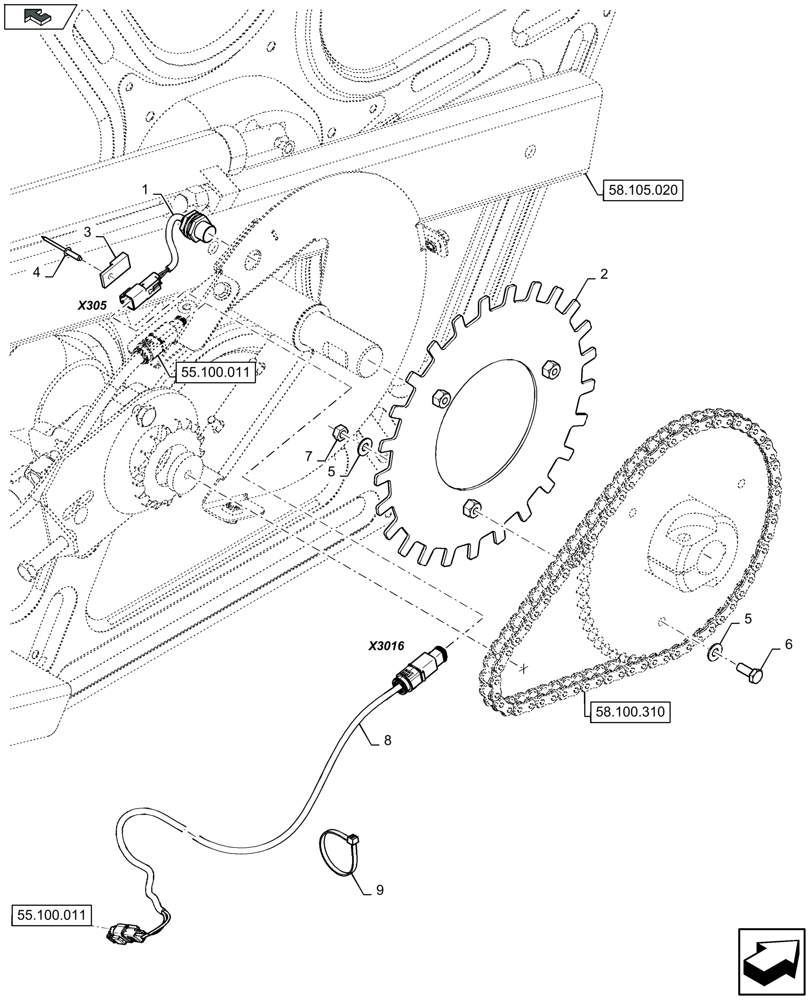

Запчасти Case IH 3050-25FT H (55.675.030) - REEL SPEED SENSORS, RH - D975 (55) - ELECTRICAL SYSTEMS

1

87342073

SENSOR

1шт.

2

84489825

DISC

,, Serial Range: -C051

1шт.

2

47493184

DISC

,, Start Serial: D052

1шт.

3

84058832

CLIP

1шт.

4

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

6

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

, Serial Range: -C051

3шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D052

3шт.

7

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D052

3шт.

8

47569950

WIRE HARNESS

, Start Serial: D052

1шт.

FOR REBUILD KIT ONLY

1шт.

9

86566989

CABLE TIE,208mm L

1шт.

FOR REBUILD KIT ONLY

1шт.
