(55.100.010) - HEADER, ELECTRICITY - C974

Запчасти Case IH 3050-25FT H (55.100.010) - HEADER, ELECTRICITY - C974 (55) - ELECTRICAL SYSTEMS

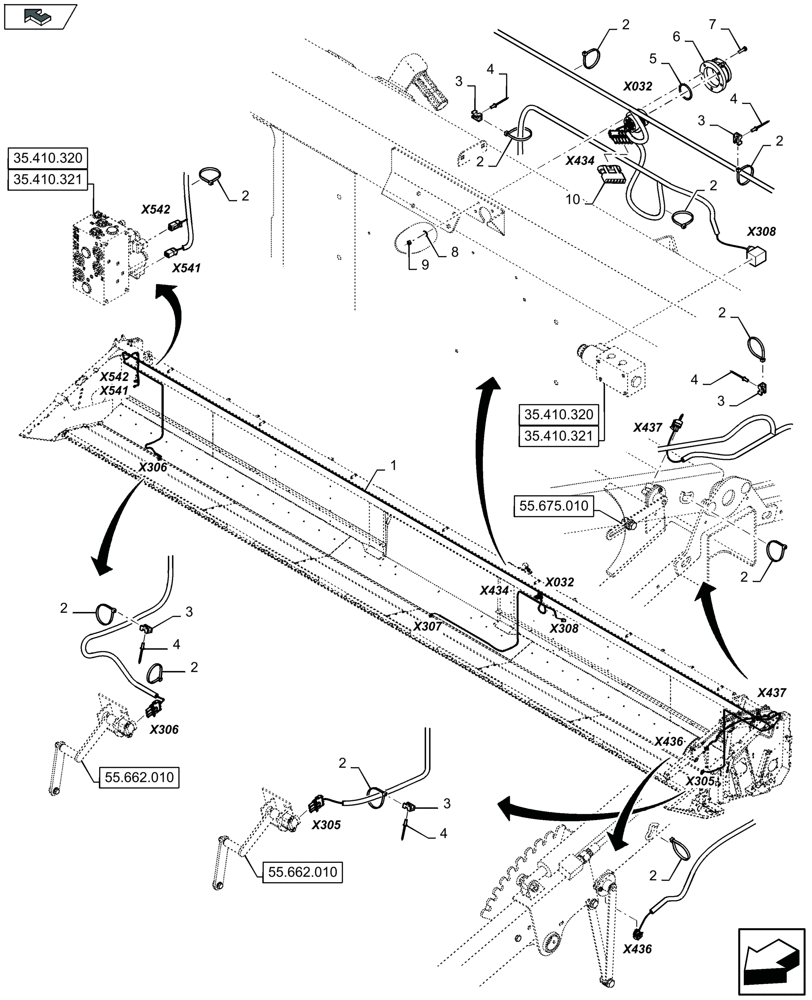

Схема запчастей Case IH 3050-25FT H - (55.100.010) - HEADER, ELECTRICITY - C974 (55) - ELECTRICAL SYSTEMS
35.410.321
9
2
x305
4
4
4
4
x542
5
x305
4
3
3
2
8
x436
2
7
x306
55.662.010
6
10
home
x541
x308
2
35.410.320
3
2
55.675.010
x306
2
x434
2
x541
3
2
x032
3
35.410.320
1
2
x308
x307
35.410.321
x437
x032
x434
2
x437
x436
55.662.010
2
x542
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87704020

WIRE HARNESS

SEE FIGURE 55.100.510

1шт.

SEE FIGURE 55.100.510

1шт.

2

86566989

CABLE TIE,208mm L

52шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

23шт.

4

445394

RIVET,Pop, 3/16" x 1/2" OAL

23шт.

5

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

6

86606228

COVER

1шт.

7

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

8

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

9

86508813

NUT,M5, Cl 8

4шт.

10

86837775

RESISTOR

1шт.

Выбрано товаров: 11
