Запчасти Case IH 3050-25FT H (35.410.310) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE - C955 (35) - HYDRAULIC SYSTEMS

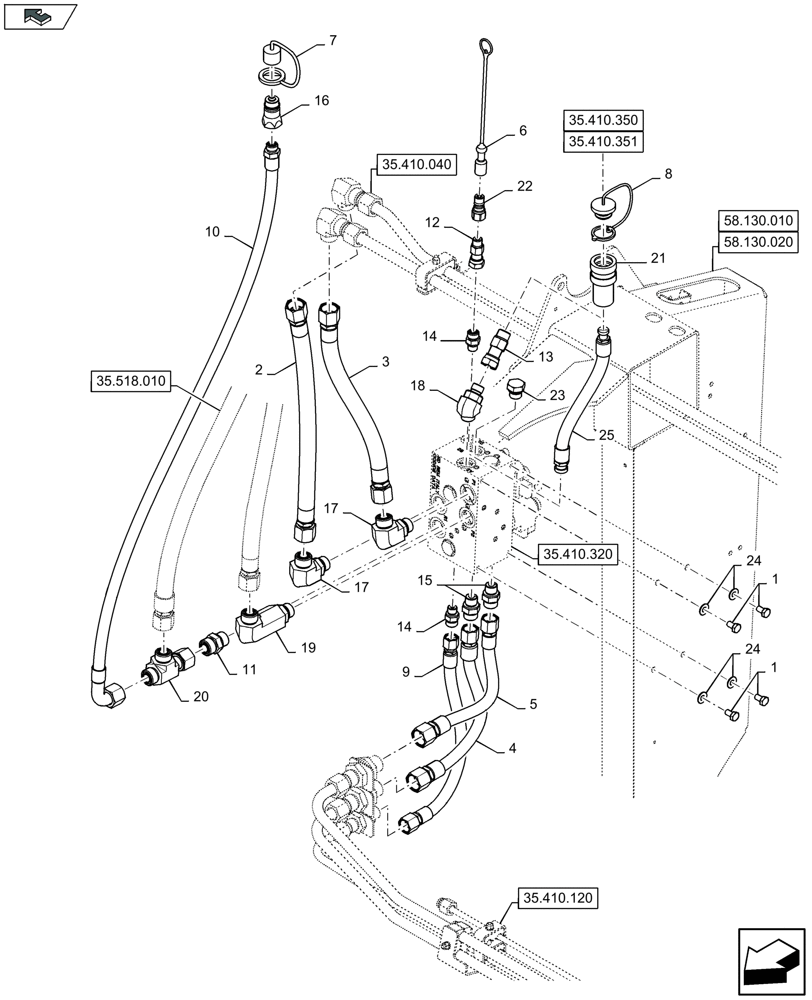

Схема запчастей Case IH 3050-25FT H - (35.410.310) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE - C955 (35) - HYDRAULIC SYSTEMS
9
24
11
23
10
35.410.120
35.410.351
14
21
3
6
35.410.040
58.130.010
19
35.410.320
35.518.010
8
12
16
1
58.130.020
25
home
24
13
5
18
17
15
17
4
35.410.350
1
7
20
22
14
2

Артикул

Название

Примечание

Количество

1

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.

2

84139526

HOSE

1шт.

3

84139525

HOSE

1шт.

4

84139524

HOSE

1шт.

5

84139522

HOSE

1шт.

6

86592086

DUST CAP

1шт.

7

86592084

DUST CAP

1шт.

8

86592083

DUST CAP

1шт.

9

84139510

HOSE

1шт.

10

84139509

HOSE

1шт.

11

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

12

84062147

HYD CONNECTOR

1шт.

13

86974819

FITTING,3/4"-16 x 13/16"-16 ORFS

,, Serial Range: -C953

1шт.

14

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

2шт.

15

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

16

86544945

QUICK MALE COUPLING

,, Serial Range: -C953

1шт.

16

86592080

QUICK MALE COUPLING

,, Start Serial: D954

1шт.

17

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

2шт.

18

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

,, Serial Range: -C953

1шт.

19

84129708

ELBOW

1шт.

20

84989850

3 WAY CONNECTION

1шт.

21

772731

COUPLING, QUICK, FEM

,, Serial Range: -C953

1шт.

21

86592082

QUICK MALE COUPLING

,, Start Serial: D954

1шт.

22

86592082

QUICK MALE COUPLING

1шт.

23

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

25

84208791

HOSE,10.00 mm ID x 200.00 mm, SAE 100R16

,, Start Serial: D954

1шт.

Выбрано товаров: 27
