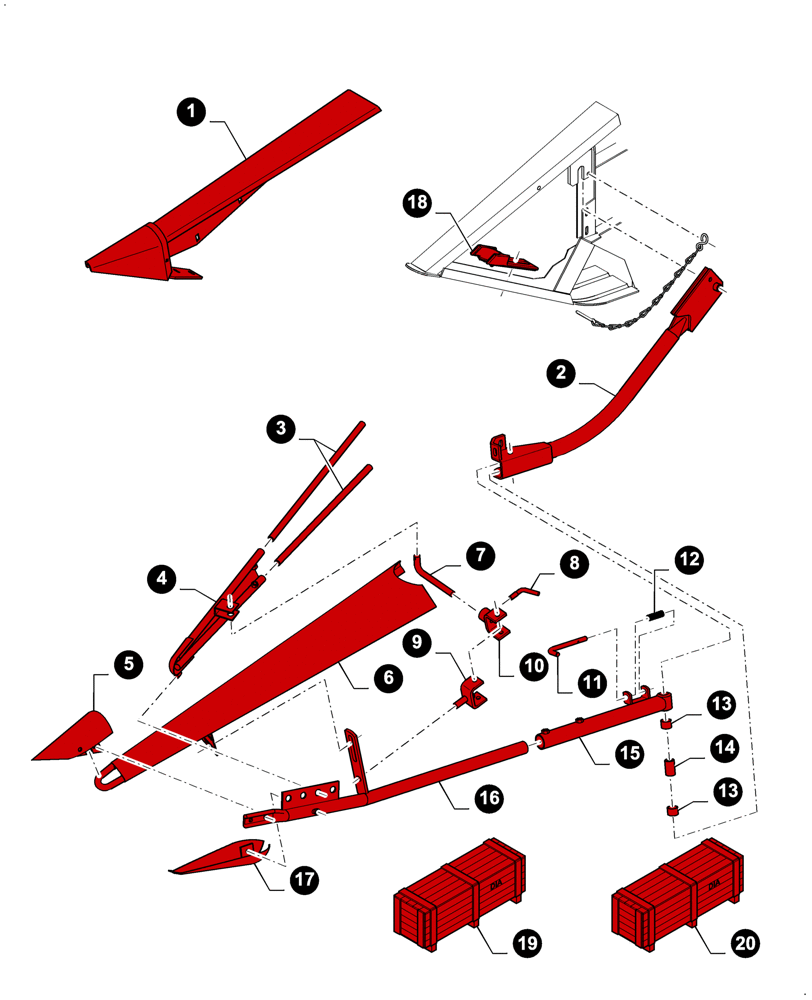

Запчасти Case IH 3050-25FT H (05.100.04[01]) - MAINTENANCE PARTS, ADJUSTABLE AND FIXED DIVIDERS LH AND RH (05) - SERVICE & MAINTENANCE

1

84814329

DIVIDER

LH, Serial Range: -C955

1шт.

1

84246550

DIVIDER

LH, Serial Range: -F956974

1шт.

1

84377501

DIVIDER

LH, Serial Range: -F975992

1шт.

1

47440796

DIVIDER

LH, Start Serial: D993

1шт.

1

84814328

DIVIDER

RH, Serial Range: -C955

1шт.

1

84246548

DIVIDER

RH, Serial Range: -F956974

1шт.

1

84377484

DIVIDER

RH, Serial Range: -F975992

1шт.

1

47440794

DIVIDER

RH, Start Serial: D993

1шт.

2

84456183

TUBE

RH

1шт.

2

84456176

TUBE

LH

1шт.

3

84814368

EXTENSION

4шт.

4

84183579

CROP DIVIDER

2шт.

5

84814371

DIVIDER POINT

2шт.

6

84183583

CROP DIVIDER

2шт.

7

338939

ADJUSTMENT ROD

2шт.

8

331887

HANDLE

2шт.

9

482917

HINGE

2шт.

10

338927

HINGE

2шт.

11

84456187

PIN

2шт.

12

918027

SPRING

2шт.

13

84057311

BUSHING,25mm ID x 28mm OD x 20mm L

4шт.

14

87344389

BUSHING

2шт.

15

84456179

TUBE

2шт.

16

84814374

ARM

RH

1шт.

16

84814376

ARM

LH

1шт.

17

84814382

DIVIDER POINT

2шт.

18

47469695

STAY

2шт.

19

84095942

DIA KIT, HARVESTER

Fixed short dividers, Serial Range: -C955

1шт.

19

84246597

DIA KIT, HARVESTER

Fixed short dividers, Serial Range: -F956974

1шт.

19

84377480

DIA KIT, HARVESTER

Fixed short dividers, Serial Range: -F975992

1шт.

19

47471444

DIA KIT, HARVESTER

Fixed short dividers, Start Serial: D993

1шт.

20

87384306

DIA KIT, HARVESTER

Pivotable adjustable dividers, Serial Range: -C949

1шт.

20

84185406

DIA KIT, HARVESTER

Pivotable adjustable dividers, Start Serial: D950

1шт.
