Запчасти Case IH 3050-25FT H (58.130.010) - HEADER FRAME, KNIFE GUARDS AND STRIPPER LATHS (58) - ATTACHMENTS/HEADERS

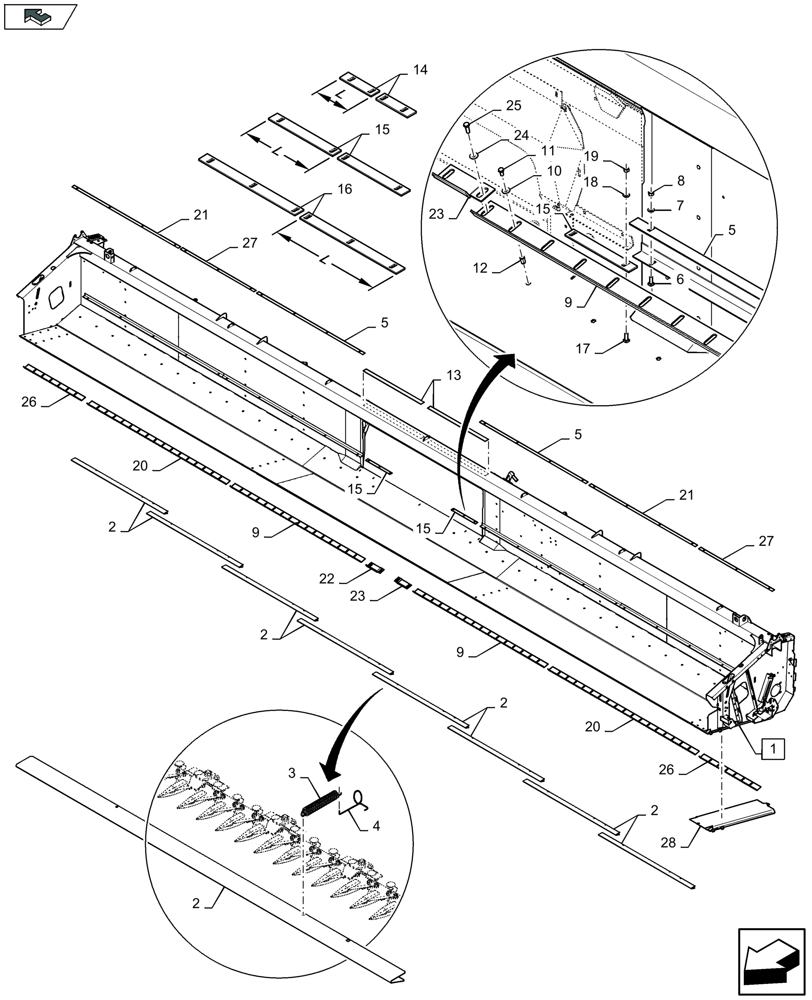

Схема запчастей Case IH 3050-25FT H - (58.130.010) - HEADER FRAME, KNIFE GUARDS AND STRIPPER LATHS (58) - ATTACHMENTS/HEADERS
4
15
27
26
20
21
27
24
9
20
5
13
15
14
home
9
21
9
10
2
15
2
7
22
26
16
15
1
6
23
11
28
3
17
5
2
2
19
12
23
2
8
25
18
5

Артикул

Название

Примечание

Количество

1

84167415

FRAME

Incl 28, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

1

84245268

FRAME

Incl 28, Start Serial: D956

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

1

84163726

FRAME

Incl 28, Serial Range: -C955

1шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

1

84245270

FRAME

Incl 28, Serial Range: -F956051

1шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

1

47647592

FRAME

Incl 28, Start Serial: D052

1шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

1

87471635

FRAME

Incl 28, Serial Range: -C955

1шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

1

84245271

FRAME

Incl 28, Serial Range: -F956051

1шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

1

47647594

FRAME

Incl 28, Start Serial: D052

1шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

1

84467996

FRAME

Incl 28

1шт.

FOR 3050-25FT L-GRAIN HEADER ONLY

1шт.

1

84398751

FRAME

Incl 28

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

2

9838588

PROTECTING COVER

8шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

2

9838588

PROTECTING COVER

, Start Serial: D954

6шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

2

9838588

PROTECTING COVER

9шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

3

84161187

SPRING

, Start Serial: D954

7шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

3

84814908

SPRING

, Serial Range: -C949

9шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

3

84161187

SPRING

, Start Serial: D950

9шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

3

84161187

SPRING

10шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

4

89837015

HOOK

, Serial Range: -C949

9шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

5

84159069

PLATE

, Serial Range: -C955

2шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

5

84269440

STRIP

, Start Serial: D956

2шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

5

87741363

PLATE

, Serial Range: -C955

2шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

5

84269432

STRIP

, Start Serial: D956

2шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

5

84269432

STRIP

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

6

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

, Serial Range: -C953

16шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D954

16шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

6

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

, Serial Range: -C953

18шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D954

18шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

6

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

, Serial Range: -C941

20шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D942

20шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

26шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

16шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

18шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

20шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

9

84159065

PLATE

, Serial Range: -C955

2шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

9

84269448

STRIP

, Start Serial: D956

2шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

9

87662812

ANGLE BAR

, Serial Range: -C955

2шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

9

84269452

STRIP

, Start Serial: D956

2шт.

FOR 3050-30FT-GRAIN HEADER, 3050-35FT-GRAIN HEADER ONLY

1шт.

9

84269448

STRIP

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Serial Range: -C955

24шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Start Serial: D956

28шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Serial Range: -C955

30шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Start Serial: D956

34шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Serial Range: -C955

36шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Start Serial: D956

40шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

46шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Serial Range: -C953

24шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D954

24шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Serial Range: -C953

30шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D954

30шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Serial Range: -C941

36шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D942

36шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

46шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

, Serial Range: -C955

24шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

, Start Serial: D956

30шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

, Serial Range: -C955

30шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

, Start Serial: D956

36шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

, Serial Range: -C955

36шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

, Start Serial: D956

42шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

12

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

50шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

13

401502

ANTI-SKID STRIP

1шт.

14

84160066

PLATE

, Serial Range: -C951

2шт.

15

84153557

PLATE

, Serial Range: -C951

2шт.

16

84153679

PLATE

, Serial Range: -C951

2шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

, Serial Range: -C951

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Serial Range: -C951

1шт.

19

9706690

NUT,M8 x 1.25, Cl 8

, Serial Range: -C951

1шт.

20

84159065

PLATE

, Serial Range: -C955

2шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

20

84269450

STRIP

, Start Serial: D956

2шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

20

87662812

ANGLE BAR

, Serial Range: -C955

2шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

20

84269445

STRIP

, Start Serial: D956

2шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

20

47578787

STRIP

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

21

84159069

PLATE

, Serial Range: -C955

2шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

21

84269440

STRIP

, Start Serial: D956

2шт.

FOR 3050-25FT H-GRAIN HEADER, 3050-25FT L-GRAIN HEADER ONLY

1шт.

21

87741363

PLATE

, Serial Range: -C955

2шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

21

84269432

STRIP

, Start Serial: D956

2шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

21

84531989

STRIP

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

22

84393553

PLATE

RH, Start Serial: D970

1шт.

23

84393555

PLATE

LH, Start Serial: D970

1шт.

24

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

, Start Serial: D970

2шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D970

2шт.

26

47578790

STRIP

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

27

84269440

STRIP

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

28

84467963

PLATE

1шт.

FOR 3050-25FT L-GRAIN HEADER ONLY

1шт.

28

87719636

SUPPORT

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

FOR 3050-30FT-GRAIN HEADER ONLY

1шт.

FOR 3050-35FT-GRAIN HEADER ONLY

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

Выбрано товаров: 169
