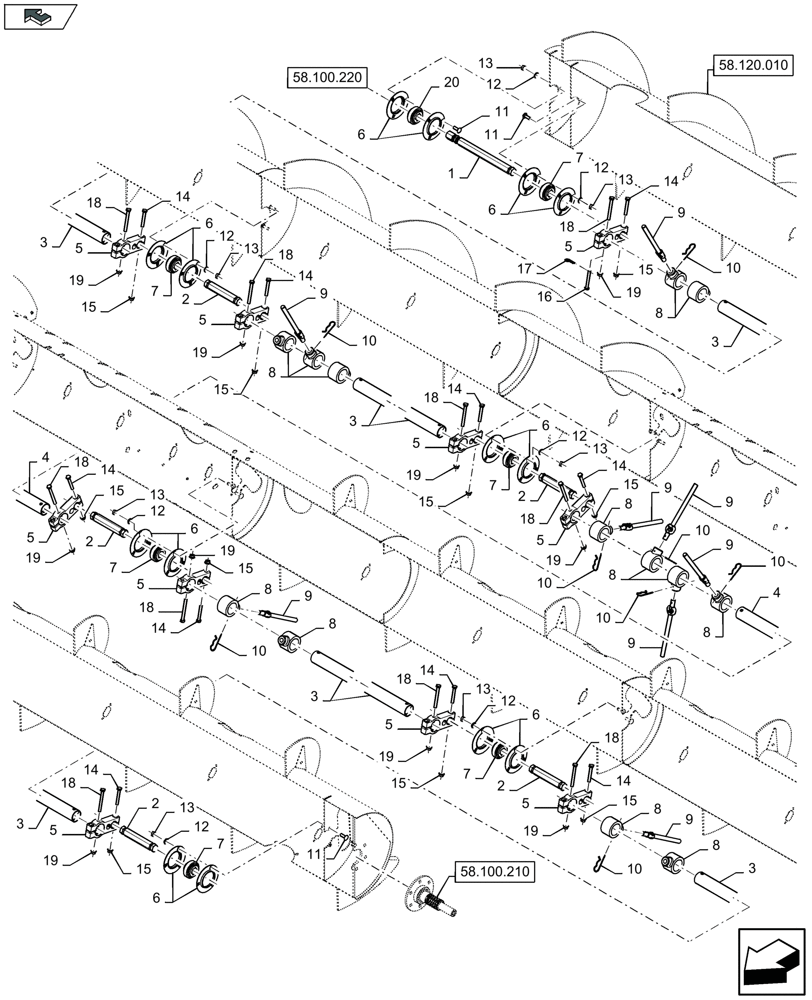

Запчасти Case IH 3050-25FT H (58.120.020) - FEED AUGER, CRANK AXLE AND FINGERS - C954 (58) - ATTACHMENTS/HEADERS

1

87642503

SHAFT

,, Serial Range: -C941

1шт.

1

84165401

SHAFT

,, Start Serial: D942

1шт.

2

87626918

SHAFT

5шт.

3

84138866

TUBE,45.8 mm ID, 51 mm OD, 1352.7 mm Length

4шт.

FOR HEAVY 25 FT ONLY

1шт.

3

84123466

TUBE,45.8 mm ID, 51 mm OD, 1733.7 mm Length

4шт.

FOR 30 FT ONLY

1шт.

3

87628727

TUBE,45.8 mm ID x 51 mm OD x 2114.1 mm L

4шт.

FOR 35 FT ONLY

1шт.

4

87628726

TUBE,45.8 mm ID x 51 mm OD x 1159.4 mm L

1шт.

5

87628722

LINK CONROD

10шт.

6

36403

BEARING HOUSING

14шт.

7

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

6шт.

MAINTENANCE PART

1шт.

8

84166226

COUPLING JOINT

39шт.

FOR HEAVY 25 FT ONLY

1шт.

MAINTENANCE PART

1шт.

8

84166226

COUPLING JOINT

44шт.

FOR 30 FT ONLY

1шт.

MAINTENANCE PART

1шт.

8

87627013

COUPLING JOINT

,, Serial Range: -C949

49шт.

FOR 35 FT ONLY

1шт.

MAINTENANCE PART

1шт.

8

84166226

COUPLING JOINT

,, Start Serial: D950

49шт.

FOR 35 FT ONLY

1шт.

MAINTENANCE PART

1шт.

9

84194057

FINGER,Assembly, Grain Header

31шт.

FOR HEAVY 25 FT ONLY

1шт.

MAINTENANCE PART

1шт.

9

84194057

FINGER,Assembly, Grain Header

33шт.

FOR 30 FT ONLY

1шт.

MAINTENANCE PART

1шт.

9

84194057

FINGER,Assembly, Grain Header

35шт.

FOR 35 FT ONLY

1шт.

MAINTENANCE PART

1шт.

10

740591

SPRING,M10 x 67

31шт.

FOR HEAVY 25 FT ONLY

1шт.

MAINTENANCE PART

1шт.

10

740591

SPRING,M10 x 67

33шт.

FOR 30 FT ONLY

1шт.

MAINTENANCE PART

1шт.

10

740591

SPRING,M10 x 67

35шт.

FOR 35 FT ONLY

1шт.

MAINTENANCE PART

1шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

9шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

21шт.

13

100016

NUT,M10 x 1.5, Cl 8

21шт.

14

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

,, Serial Range: -C941

20шт.

14

355788

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

,, Start Serial: D942

20шт.

15

86619802

FLANGE NUT,M10 x 1.5, Cl 8

,, Serial Range: -C941

20шт.

15

86512554

NUT,M10 x 1.5, Cl 10

,, Serial Range: -F942949

20шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

,, Start Serial: D950

20шт.

16

9602968

CLEVIS PIN,10mm OD x 80mm L

,, Serial Range: -C943

10шт.

17

216698

COTTER PIN,0.125" OD x 1.75" L

,, Serial Range: -C943

10шт.

18

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

,, Start Serial: D944

10шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

,, Start Serial: D944

10шт.

20

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

1шт.

MAINTENANCE PART

1шт.
