(55.662.010) - SKID PLATES, LEFT AND RIGHT-HAND STUBBLE HEIGHT INDICATOR

Запчасти Case IH 3050-22FT (55.662.010) - SKID PLATES, LEFT AND RIGHT-HAND STUBBLE HEIGHT INDICATOR (55) - ELECTRICAL SYSTEMS

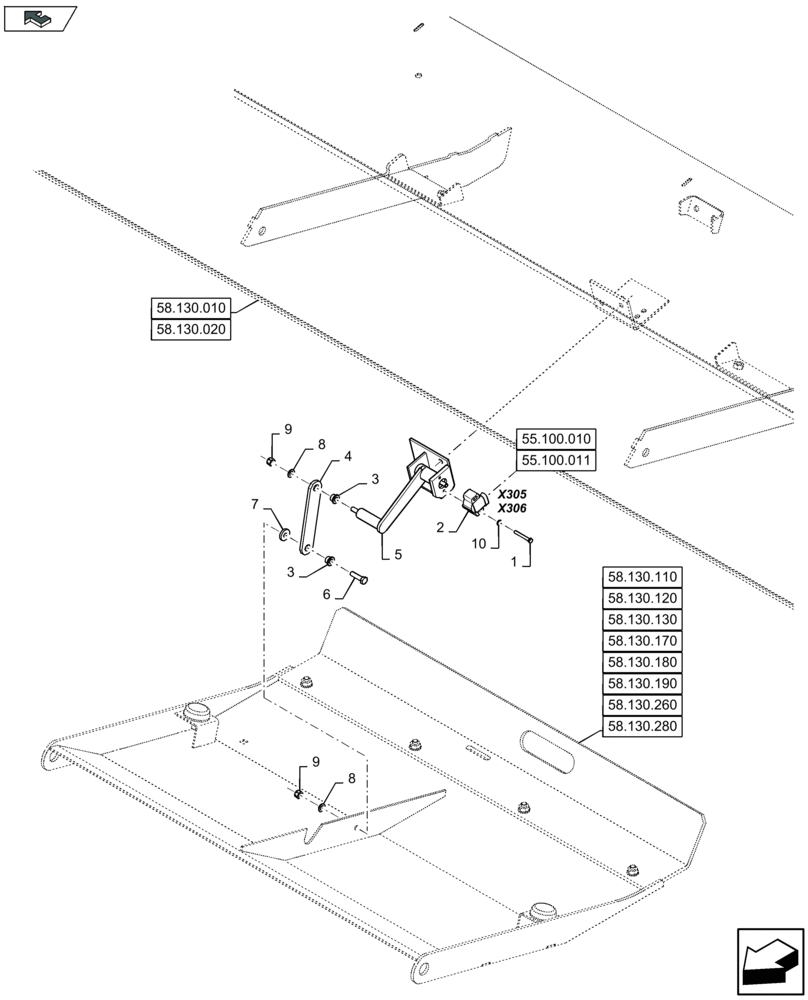

Схема запчастей Case IH 3050-22FT - (55.662.010) - SKID PLATES, LEFT AND RIGHT-HAND STUBBLE HEIGHT INDICATOR (55) - ELECTRICAL SYSTEMS
10
9
58.130.180
x305
58.130.120
3
58.130.010
x306
1
58.130.130
58.130.110
home
2
6
58.130.190
4
7
55.100.010
58.130.170
58.130.280
8
58.130.020
55.100.011
58.130.260
3
5
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

2

86616339

SENSOR,CCW

Stubble height, Serial Range: -C077

2шт.

2

47419430

SENSOR,CW

, Start Serial: D078

2шт.

3

9847466

BUSHING,8.25mm ID x 12.75mm OD x 10.26mm L

4шт.

4

87617753

PLATE

, Serial Range: -C051

2шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

4

47504735

PLATE

, Start Serial: D052

2шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

4

47504735

PLATE

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

5

87551445

SUPPORT

, Serial Range: -C051

2шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

5

47504732

SUPPORT

, Serial Range: -F052077

2шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

5

47890820

SUPPORT

, Start Serial: D078

2шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

5

47504732

SUPPORT

, Serial Range: -C077

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

5

47890820

SUPPORT

, Start Serial: D078

2шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

7

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.
