Запчасти Case IH 3050-22FT (35.410.352) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE COUPLING PARTS - D956 (35) - HYDRAULIC SYSTEMS

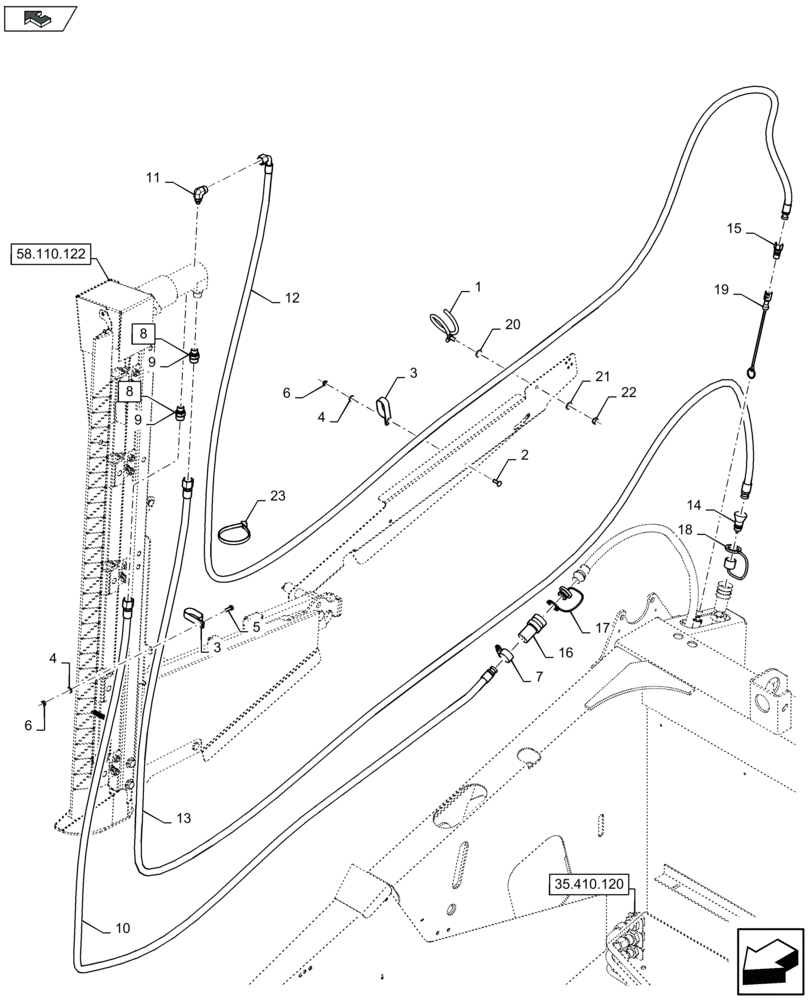

Схема запчастей Case IH 3050-22FT - (35.410.352) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE COUPLING PARTS - D956 (35) - HYDRAULIC SYSTEMS
16
1
9
23
6
19
10
13
8
7
17
4
4
6
5
15
12
3
2
35.410.120
home
3
20
9
18
21
58.110.122
11
22
14
8

Артикул

Название

Примечание

Количество

1

84268362

HOLDER

1шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

,, Serial Range: -C981

3шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

,, Start Serial: D982

5шт.

3

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

,, Serial Range: -C981

6шт.

3

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

,, Start Serial: D982

7шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Serial Range: -C981

6шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Start Serial: D982

8шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

6

353308

NUT,M6 x 1.0, Cl 8

,, Serial Range: -C981

5шт.

6

353308

NUT,M6 x 1.0, Cl 8

,, Start Serial: D982

7шт.

7

84129692

HOSE CLAMP,1.25" - 2.12", Worm Gear

,, Serial Range: -C966

1шт.

7

87532036

CLAMP,30.2mm, Coat, 7.1mm Bolt Hole, P Type

,, Serial Range: -F967993

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

,, Start Serial: D994

1шт.

8

87490958

NIPPLE

Incl 9

2шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

84189139

HYDRAULIC HOSE

,, Serial Range: -C966

1шт.

10

84329992

HOSE

,, Serial Range: -F967981

1шт.

10

84329155

HOSE

,, Start Serial: D982

1шт.

11

87378038

FITTING

1шт.

12

84184595

HYDRAULIC HOSE

,, Serial Range: -C966

1шт.

12

84329990

HOSE

,, Serial Range: -F967981

1шт.

12

84604059

HOSE,6.4mm ID x 4300mm L, SAE 100R16

,, Start Serial: D982

1шт.

13

84184596

HYDRAULIC HOSE

,, Serial Range: -C966

1шт.

13

84329155

HOSE

,, Serial Range: -F967981

1шт.

13

84594380

HOSE,12.7mm ID x 4300mm L, SAE 100R16

,, Start Serial: D982

1шт.

14

86592080

QUICK MALE COUPLING

1шт.

15

86592082

QUICK MALE COUPLING

1шт.

16

86592079

COUPLING, QUICK, FEM

1шт.

17

86592083

DUST CAP

1шт.

18

86592084

DUST CAP

1шт.

19

86592086

DUST CAP

1шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

22

9706690

NUT,M8 x 1.25, Cl 8

1шт.

23

396718

STRAP

,, Serial Range: -F982993

1шт.

Выбрано товаров: 35
