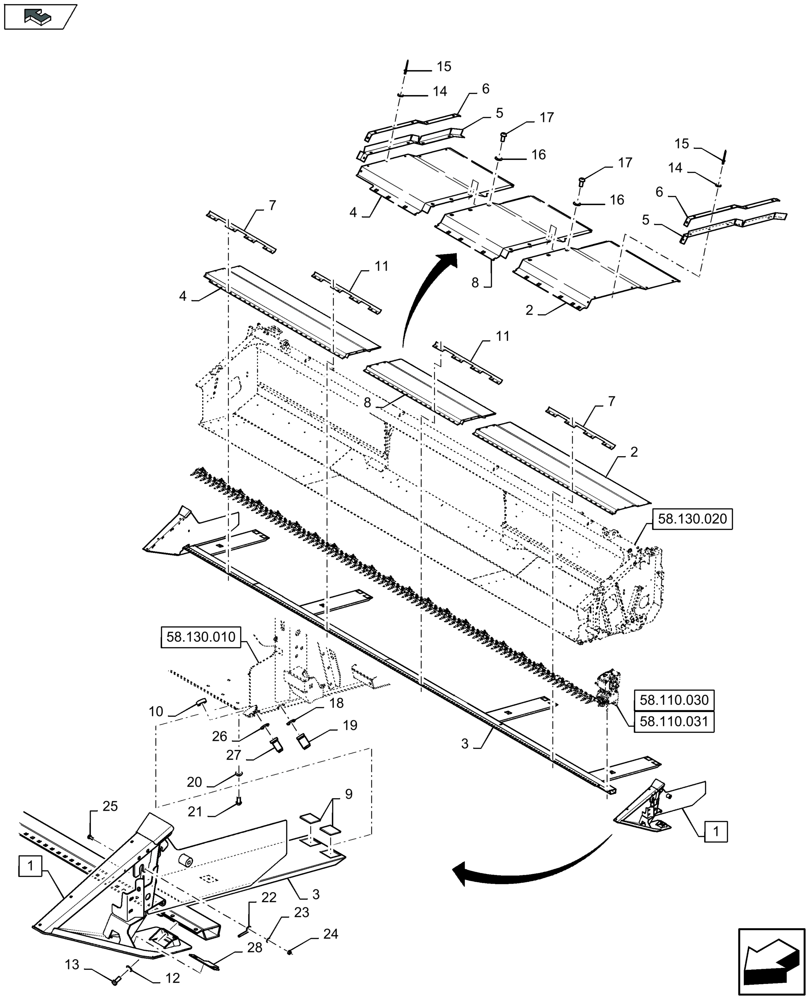

Запчасти Case IH 3050-20FT (58.130.240) - FLOOR AND ADJUSTABLE FLOOR GUIDES (58) - ATTACHMENTS/HEADERS

1

84223829

SIDE PLATE

, Serial Range: -C992

1шт.

1

47458336

SIDE PLATE

, Serial Range: -F993051

1шт.

1

47624348

SIDE PLATE

Incl 28, Start Serial: D052

1шт.

2

84525845

PLATE

LH, Serial Range: -C051

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

2

84525725

PLATE

LH, Serial Range: -C051

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

2

47612106

PLATE

LH, Start Serial: D052

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

2

84139652

COVER PLATE

LH

1шт.

FOR 3050-20FT-GRAIN HEADER AND 3050-22FT-GRAIN HEADER ONLY

1шт.

3

84525822

TABLE

, Serial Range: -C992

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

3

47467209

TABLE

, Start Serial: D993

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

3

84525394

TABLE

, Serial Range: -C992

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

3

47466685

TABLE

, Start Serial: D993

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

3

84533851

TABLE

, Serial Range: -C992

1шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

3

47466552

TABLE

, Start Serial: D993

1шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

3

84542767

TABLE

, Serial Range: -C992

1шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

3

47466496

TABLE

, Start Serial: D993

1шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

4

84525832

PLATE

RH, Serial Range: -C051

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

4

84525403

PLATE

RH, Serial Range: -C051

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

4

47612112

PLATE

RH, Start Serial: D052

1шт.

FOR 3050-16FT-GRAIN HEADER ONLY

1шт.

FOR 3050-18FT-GRAIN HEADER ONLY

1шт.

4

84139648

COVER PLATE

RH

1шт.

FOR 3050-20FT-GRAIN HEADER AND 3050-22FT-GRAIN HEADER ONLY

1шт.

5

87626283

SEALING STRIP

2шт.

6

87750870

LATH

2шт.

7

84468035

LATCH

2шт.

8

84139673

COVER PLATE

2шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

8

84542768

COVER PLATE

2шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

9

87720537

WEAR STRIP

8шт.

MAINTENANCE PART

1шт.

10

87720717

WEAR PLATE

16шт.

11

84468035

LATCH

1шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

11

84468035

LATCH

2шт.

FOR 3050-20FT-GRAIN HEADER ONLY

1шт.

11

84468134

LATCH

1шт.

FOR 3050-22FT-GRAIN HEADER ONLY

1шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

14шт.

15

446453

RIVET,Pop, 4mm OD x 9.4mm L

, Serial Range: -C997

14шт.

15

455959

RIVET,Pop, 3.75mm OD x 11.5mm L

, Start Serial: D998

14шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

FOR 3050-20FT-GRAIN HEADER AND 3050-22FT-GRAIN HEADER ONLY

1шт.

17

380425

BOLT,M10 x 20mm

3шт.

FOR 3050-16FT-GRAIN HEADER AND 3050-18FT-GRAIN HEADER ONLY

1шт.

17

380425

BOLT,M10 x 20mm

6шт.

FOR 3050-20FT-GRAIN HEADER AND 3050-22FT-GRAIN HEADER ONLY

1шт.

18

87732954

NUT,M24 X 2

8шт.

19

87732897

ADJUSTMENT SCREW

8шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

FOR TRANSPORT PURPOSE ONLY

1шт.

21

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

FOR TRANSPORT PURPOSE ONLY

1шт.

22

84334067

SAFETY DEVICE

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

24

9706690

NUT,M8 x 1.25, Cl 8

2шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

26

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

8шт.

27

84551338

ADJUSTMENT SCREW

8шт.

28

47511720

PLATE

1шт.
