Запчасти Case IH 3050-20FT (58.110.020) - WOBBLE BOX (58) - ATTACHMENTS/HEADERS

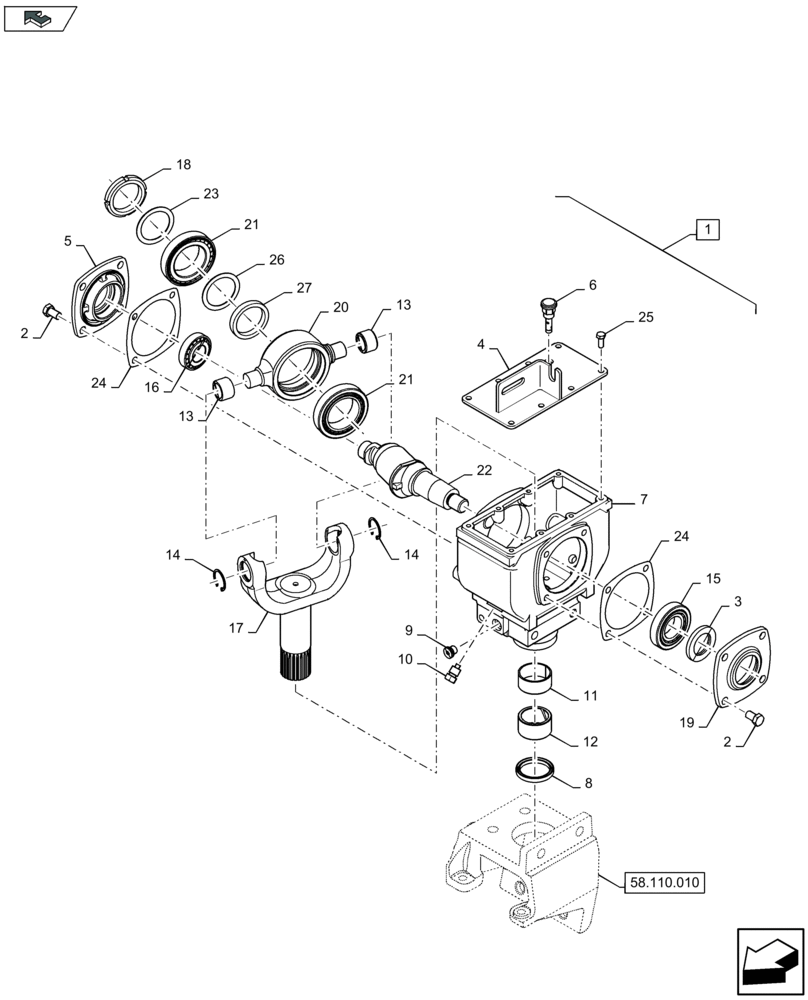

Схема запчастей Case IH 3050-20FT - (58.110.020) - WOBBLE BOX (58) - ATTACHMENTS/HEADERS
27
4
16
13
3
9
home
14
25
24
11
58.110.010
10
20
14
13
22
6
21
19
23
17
2
26
7
1
18
15
8
5
12
2
24
21

Артикул

Название

Примечание

Количество

1

87724927

WOBBLE BOX

Incl 2 - 25, Serial Range: -C003

1шт.

MAINTENANCE PART

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER , 3050-35FT-GRAIN HEADER AND 3050-41FT-GRAIN HEADER ONLY

1шт.

1

47557929

WOBBLE BOX

Incl 2 - 27, Start Serial: D004

1шт.

MAINTENANCE PART

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER , 3050-35FT-GRAIN HEADER AND 3050-41FT-GRAIN HEADER ONLY

1шт.

1

47557929

WOBBLE BOX

Incl 2 - 27, Start Serial: D004

1шт.

MAINTENANCE PART

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

2

84185948

BOLT,Hex, M12 x 1.75 x 22mm, Cl 8.8

8шт.

3

87490543

SEAL,38.6mm ID x 62mm OD x 7mm Thk

1шт.

MAINTENANCE PART

1шт.

4

87487264

COVER PLATE

1шт.

5

87487254

BEARING COVER

1шт.

6

87490059

EXPANSION PLUG

1шт.

7

87486956

HOUSING

, Serial Range: -C003

1шт.

7

47560824

HOUSING

, Start Serial: D004

1шт.

8

87490544

SEAL,50mm ID x 62mm OD x 7mm Thk

1шт.

MAINTENANCE PART

1шт.

9

84150661

HEX SOCKET PLUG

2шт.

10

84150337

MAGNETIC PLUG

2шт.

11

87630866

BUSHING,49.98mm ID x 55.1mm OD x 20mm L

1шт.

MAINTENANCE PART

1шт.

12

87630859

GROOVED BUSHING,50mm ID x 60mm OD x 30mm L

1шт.

MAINTENANCE PART

1шт.

13

87630365

BUSHING,25.4mm ID x 35mm OD x 22mm L

2шт.

MAINTENANCE PART

1шт.

14

300642

CIRCLIP,M35 x 1.5mm W, Internal

2шт.

15

84150339

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

MAINTENANCE PART

1шт.

16

84150338

TAPERED BEARING,30mm ID x 62mm OD x 17.25mm W

1шт.

MAINTENANCE PART

1шт.

17

87487235

FORK

1шт.

MAINTENANCE PART

1шт.

18

84185837

NUT

1шт.

MAINTENANCE PART

1шт.

19

87487259

BEARING COVER,53.5 mm ID x 100 mm OD x 27 mm

1шт.

20

87630328

BEARING HOUSING,86 mm ID x 45 mm

1шт.

MAINTENANCE PART

1шт.

21

84150340

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

MAINTENANCE PART

1шт.

22

87487236

SHAFT

1шт.

MAINTENANCE PART

1шт.

23

84185904

SHIM,60.3mm ID x 71.7mm OD x 0.5mm Thk

1шт.

MAINTENANCE PART

1шт.

24

87487370

SHIM KIT

2шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

26

84265560

SHIM KIT

1шт.

27

84186416

SPACER

1шт.

Выбрано товаров: 49
