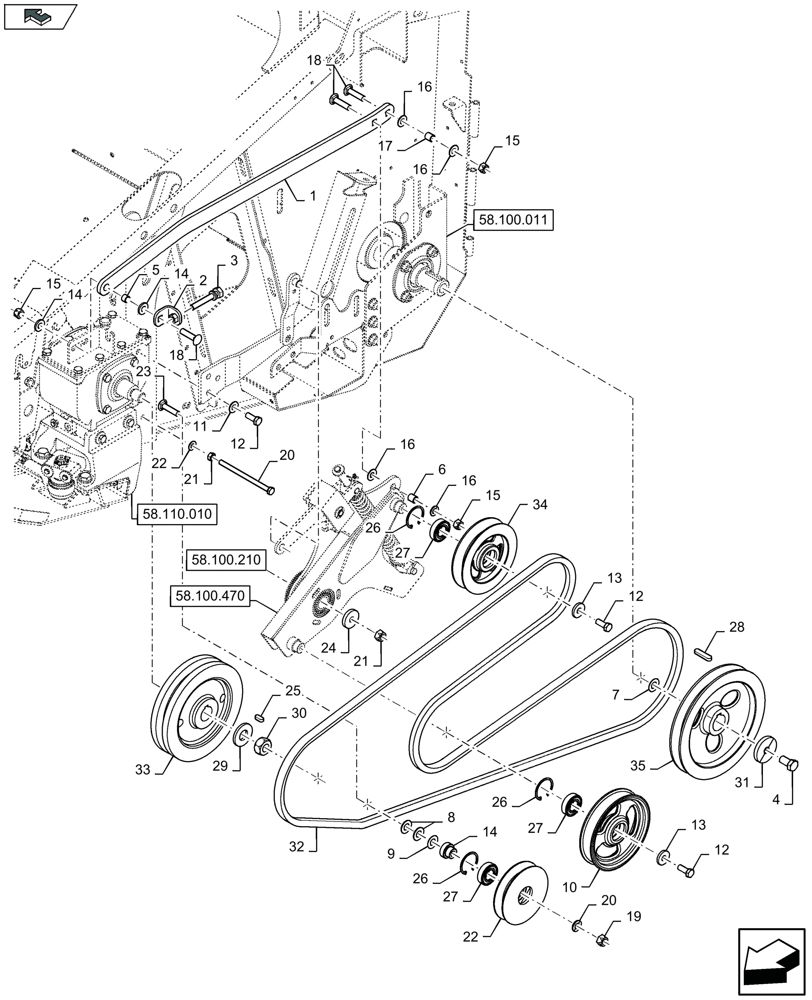

Запчасти Case IH 3050-20FT (58.100.420) - BELT DRIVE FOR CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

84211902

ROD

1шт.

2

87656043

SUPPORT

1шт.

3

87651588

BOLT,Hex Flg, M12 x 90mm, Low CST

1шт.

MAINTENANCE PART

1шт.

4

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

1шт.

5

84243704

BUSHING

1шт.

MAINTENANCE PART

1шт.

6

84251049

BUSHING

1шт.

MAINTENANCE PART

1шт.

7

9838253

WASHER,40.5mm ID x 65mm OD x 2.99mm Thk

2шт.

8

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

5шт.

9

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

3шт.

10

84489856

PULLEY,190mm OD

1шт.

MAINTENANCE PART

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

13

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

14

84141758

SLEEVE

1шт.

15

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

3шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

17

87677971

BUSHING

1шт.

MAINTENANCE PART

1шт.

18

87698853

CARRIAGE BOLT,Sht Sq Nk, M12 x 50mm, Cl 10.9, Full Thd

3шт.

19

86000441

NUT,M16 x 2.0, Cl 8

1шт.

20

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

21

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

1шт.

22

87752320

PULLEY

1шт.

23

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

24

380424

NUT,M20 x 2.5, Cl 8

1шт.

25

368317

KEY,10mm x 8mm x 25mm

1шт.

26

370011

CIRCLIP,M52 x 2mm Thk, Internal

3шт.

27

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

3шт.

MAINTENANCE PART

1шт.

28

170056

KEY,12mm W x 50mm OAL

1шт.

29

87016613

WASHER,25.8mm ID x 56.5mm OD x 6mm Thk

1шт.

30

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

1шт.

31

9801067

WASHER,16.7mm ID x 63.5mm OD x 9.5mm Thk

1шт.

32

84266080

V-BELT,22.32 mm W x 4250.00 mm L

1шт.

MAINTENANCE PART

1шт.

33

84223852

FLYWHEEL

1шт.

34

84489857

PULLEY,176mm OD

1шт.

MAINTENANCE PART

1шт.

35

84136544

PULLEY,275mm OD

1шт.
