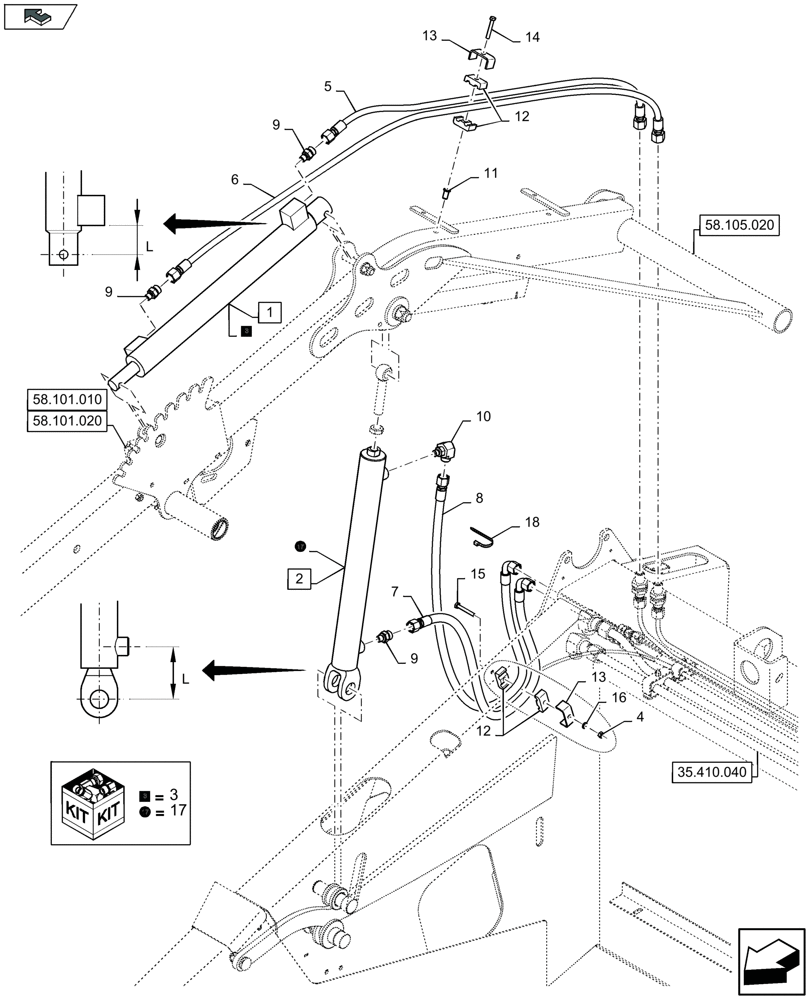

Запчасти Case IH 3050-20FT (35.420.020) - HYDRAULICS FOR REEL ARM MOVEMENT, RIGHT-HAND SIDE (35) - HYDRAULIC SYSTEMS

1

87715955

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 400mm Stroke

Reel forward - backward, Incl 3

1шт.

2

87645535

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 380mm Stroke

Reel up - down, Incl 17, Serial Range: -C993

1шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

2

47466435

HYDRAULIC CYLINDER

Reel up - down, Incl 17, Start Serial: D994

1шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER, 3050-25FT L-GRAIN HEADER, 3050-25FT H-GRAIN HEADER, 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

2

47466435

HYDRAULIC CYLINDER

Reel up - down, Incl 17

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

3

84023914

SEAL KIT

L= 45 MM

1шт.

3

84139383

SEAL KIT

L= 49.1 MM

1шт.

3

84139385

SEAL KIT

L= 43 MM

1шт.

4

353308

NUT,M6 x 1.0, Cl 8

1шт.

5

84151314

HOSE,6.35mm ID x 1000mm L

1шт.

6

84151317

HOSE,6.35mm ID x 1400mm L

1шт.

7

87676380

HOSE,6.35mm ID x 950mm L, SAE 100R16

1шт.

8

87683553

HOSE,6.35mm ID x 1360mm L, SAE 100R16

1шт.

9

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

3шт.

10

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

11

9833239

THREADED INSERT

2шт.

12

430357

CLAMP

6шт.

13

431941

SUPPORT

3шт.

14

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

,, Serial Range: -C957

2шт.

14

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

,, Start Serial: D958

2шт.

15

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

84023914

SEAL KIT

L= 72 MM

1шт.

17

84139383

SEAL KIT

L= 73 MM

1шт.

17

84139385

SEAL KIT

L= 56.5 MM

1шт.

18

86566989

CABLE TIE,208mm L

,, Start Serial: D950

4шт.
