Запчасти Case IH 3050-20FT (05.100.04[10]) - MAINTENANCE PARTS, REEL DRIVE (05) - SERVICE & MAINTENANCE

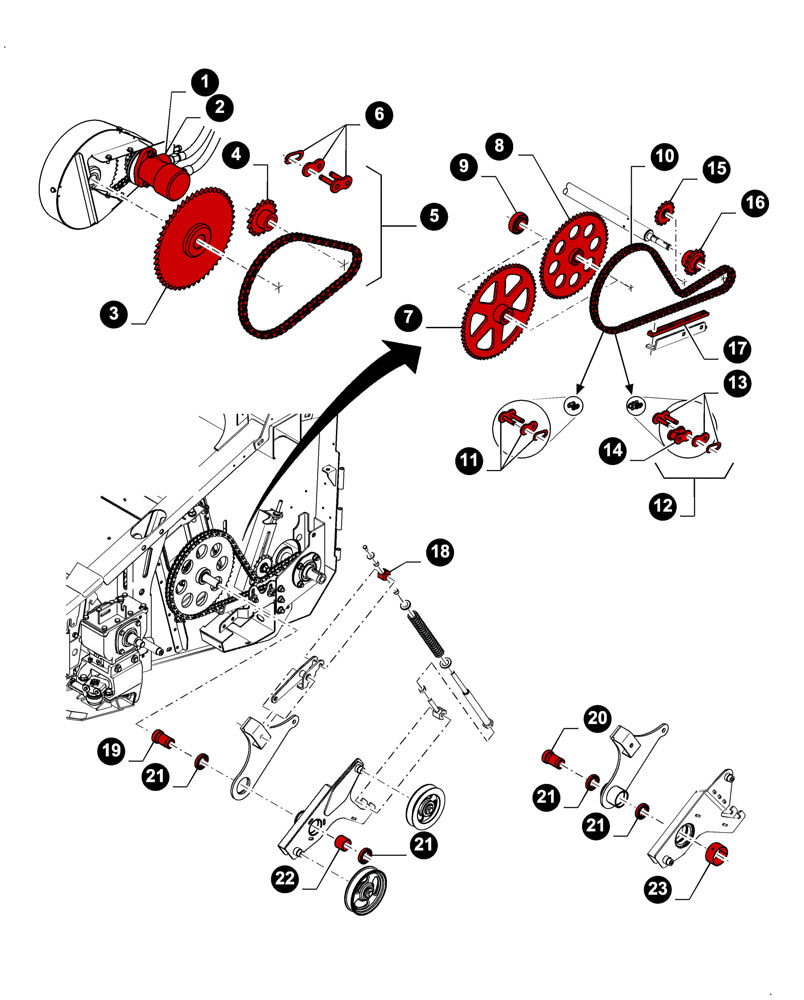

Схема запчастей Case IH 3050-20FT - (05.100.04[10]) - MAINTENANCE PARTS, REEL DRIVE (05) - SERVICE & MAINTENANCE
23
10
20
5
18
14
21
15
3
12
4
19
21
6
21
11
1
9
16
22
17
8
21
2
7
13

Артикул

Название

Примечание

Количество

1

84443777

HYDRAULIC MOTOR,199.8CC

Incl 2

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER AND 3050-25FT L-GRAIN HEADER ONLY

1шт.

1

47607966

HYDRAULIC MOTOR

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

2

84334111

SEAL KIT

1шт.

3

84459150

DRIVEN SPROCKET

, Serial Range: -C974

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

3

84466507

SPROCKET

, Start Serial: D975

1шт.

4

84459115

DRIVING SPROCKET

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

4

47550400

DRIVEN SPROCKET

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

5

87534186

CHAIN,50 HV, 64 Links x 15.88mm = 1016mm

Incl 6

1шт.

6

87537504

LINK,15.88mm Pitch

1шт.

7

84136004

SPROCKET,64T

, Serial Range: -C955

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

7

47579289

SPROCKET,47T

, Start Serial: D956

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

8

84135988

SPROCKET,58T

, Serial Range: -C943

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

8

84266747

SPROCKET,38T

, Serial Range: -F944003

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

8

47579295

SPROCKET,38T

, Start Serial: D004

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

8

47579295

SPROCKET,38T

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

9

84125180

BALL BEARING,45mm ID x 85mm OD x 22mm W

1шт.

10

87559061

CHAIN,60HZ, 102 Links x 19.05mm = 1943.1mm

Incl 11, Serial Range: -C943

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER , 3050-25FT L-GRAIN HEADER , 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

10

84267064

CHAIN,RC 80, 72 Links x 25.4mm = 1828.8mm

, Start Serial: D944

1шт.

FOR 3050-16FT-GRAIN HEADER , 3050-18FT-GRAIN HEADER , 3050-20FT-GRAIN HEADER , 3050-22FT-GRAIN HEADER AND 3050-25FT L-GRAIN HEADER ONLY

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

10

84267064

CHAIN,RC 80, 72 Links x 25.4mm = 1828.8mm

, Serial Range: -F944125

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

10

47798119

CHAIN

, Serial Range: -F944125

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

FOR HEAVY DUTY ONLY

1шт.

10

47798119

CHAIN

, Start Serial: D126

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

10

84267064

CHAIN,RC 80, 72 Links x 25.4mm = 1828.8mm

, Serial Range: -C061

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

10

47798119

CHAIN

, Start Serial: D062

1шт.

FOR 3050-41FT-GRAIN HEADER ONLY

1шт.

11

87750587

EXTENSION

, Serial Range: -C955

2шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

12

87479485

EXTENSION

Incl 13, 14, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

12

84268316

CHAIN,RC 80, 7 Links x 25.4mm = 177.8mm

, Start Serial: D956

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

13

87750587

EXTENSION

, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

14

187609

CONNECTING LINK

, Serial Range: -C955

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

15

86627639

SPROCKET,15T

, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

15

84210960

TENSIONER

, Start Serial: D956

1шт.

16

84136410

SPROCKET

, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

16

84176439

SPROCKET ASSY.

, Start Serial: D956

1шт.

17

87747348

WEAR STRIP

, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

17

84213929

WEAR STRIP

, Start Serial: D956

1шт.

18

84148991

HINGE

2шт.

19

87646425

SHAFT

, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

20

84236627

SHAFT

, Start Serial: D956

1шт.

21

87655729

BALL BEARING,40mm ID x 62mm OD x 12mm W

2шт.

22

87646424

BUSHING

, Serial Range: -C955

1шт.

FOR 3050-25FT H-GRAIN HEADER , 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

23

84246186

BUSHING

, Start Serial: D956

1шт.

Выбрано товаров: 72
