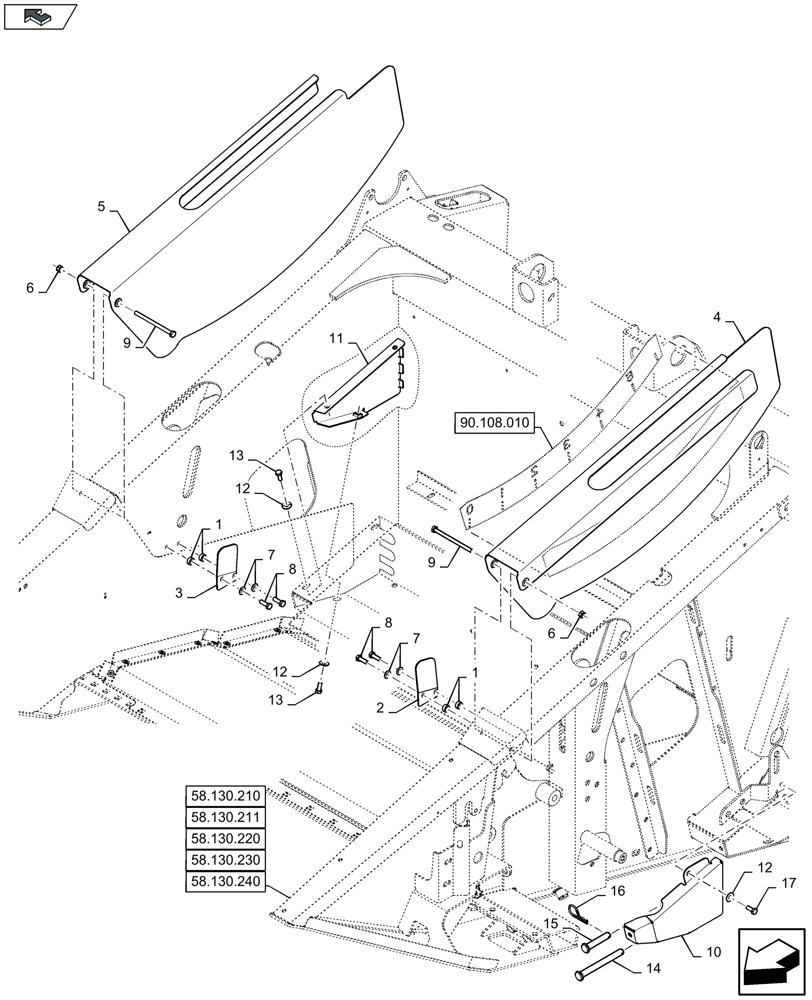

Запчасти Case IH 3050-20FT (58.208.010) - HINGEABLE SIDESHEETS & LOWER BEAM COVERS (58) - ATTACHMENTS/HEADERS

1

87571452

BUSHING

4шт.

2

87562592

IDENTITY PLATE

LH, Serial Range: -C955

1шт.

2

84247276

IDENTITY PLATE

LH, Serial Range: -F956051

1шт.

2

47658187

PLATE

LH, Start Serial: D052

1шт.

3

87562595

IDENTITY PLATE

RH, Serial Range: -C955

1шт.

3

84247296

IDENTITY PLATE

RH, Serial Range: -F956051

1шт.

3

47658852

PLATE

RH, Start Serial: D052

1шт.

4

87562583

COVER

LH, Serial Range: -C955

1шт.

4

84244867

COVER

LH, Serial Range: -F956966

1шт.

4

84378222

COVER

LH, Start Serial: D967

1шт.

5

87562586

SHIELD

RH, Serial Range: -C955

1шт.

5

84244870

COVER

RH, Serial Range: -F956966

1шт.

5

84378219

COVER

RH, Start Serial: D967

1шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

9

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

2шт.

10

84149309

LID

,, Serial Range: -C955

1шт.

10

84216756

LID

,, Start Serial: D956

1шт.

11

84140128

LID

1шт.

FOR 16 FT, 18 FT, 20 FT, 22 FT, 25 FT, 30 FT, 35 FT ONLY

1шт.

11

84468796

LID

1шт.

FOR 41 FT ONLY

1шт.

12

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

6шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

14

87560329

CLEVIS PIN

,, Start Serial: D956

2шт.

15

87597958

CLEVIS PIN,12mm OD x 65mm L

,, Start Serial: D956

2шт.

16

370539

COTTER PIN,4.4mm x 52.8mm L

,, Start Serial: D956

4шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

,, Serial Range: -C960

1шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

,, Start Serial: D961

1шт.
