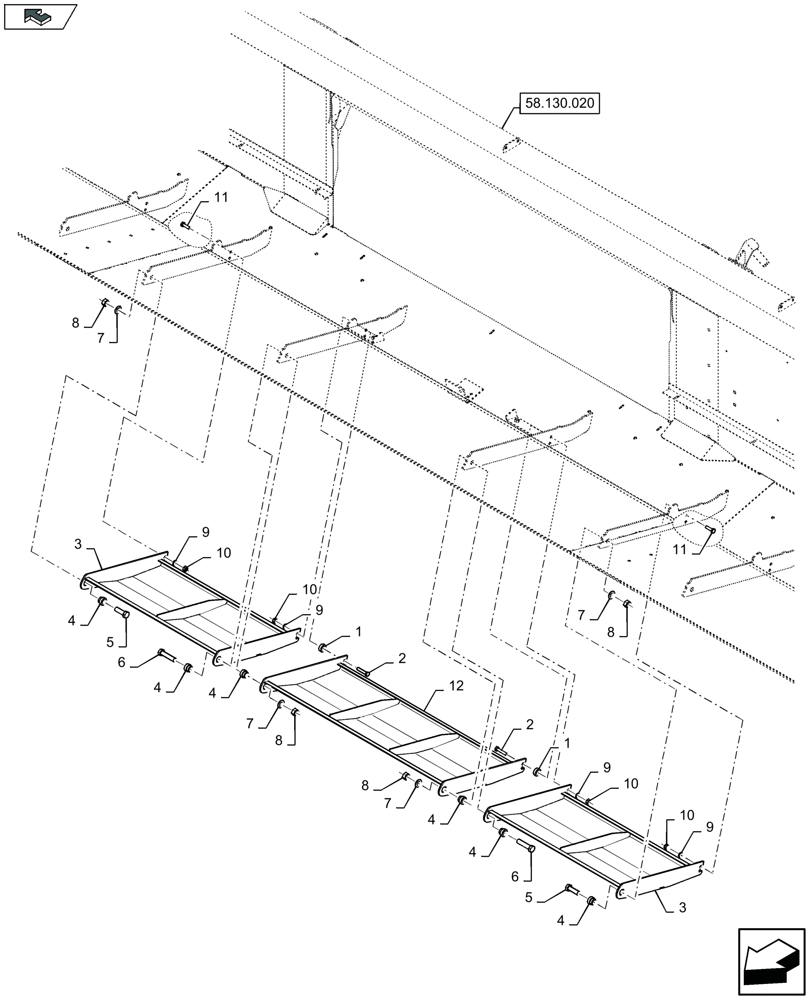

Запчасти Case IH 3050-18FT (58.130.160) - SKID PLATES, CENTER (58) - ATTACHMENTS/HEADERS

1

87732009

BUSHING

2шт.

FOR 16 FT, 18 FT AND 20 FT ONLY

1шт.

2

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

3

84149355

SKID PLATE

, Serial Range: -C051

2шт.

FOR 16 FT, 18 FT AND 20 FT ONLY

1шт.

3

84587851

SKID PLATE

, Start Serial: D052

2шт.

FOR 16 FT, 18 FT AND 20 FT ONLY

1шт.

3

87723719

SKID PLATE

, Serial Range: -C051

2шт.

FOR 22 FT ONLY

1шт.

3

84587852

SKID PLATE

, Start Serial: D052

2шт.

FOR 22 FT ONLY

1шт.

4

87728003

BUSHING

6шт.

5

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

6

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

86000441

NUT,M16 x 2.0, Cl 8

4шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

12

87723719

SKID PLATE

, Serial Range: -C051

1шт.

12

84587852

SKID PLATE

, Start Serial: D052

1шт.
