Запчасти Case IH 3050-18FT (58.100.210) - AUGER DRIVE, DRIVE CHAIN - LEFT-HAND SUPPORT (58) - ATTACHMENTS/HEADERS

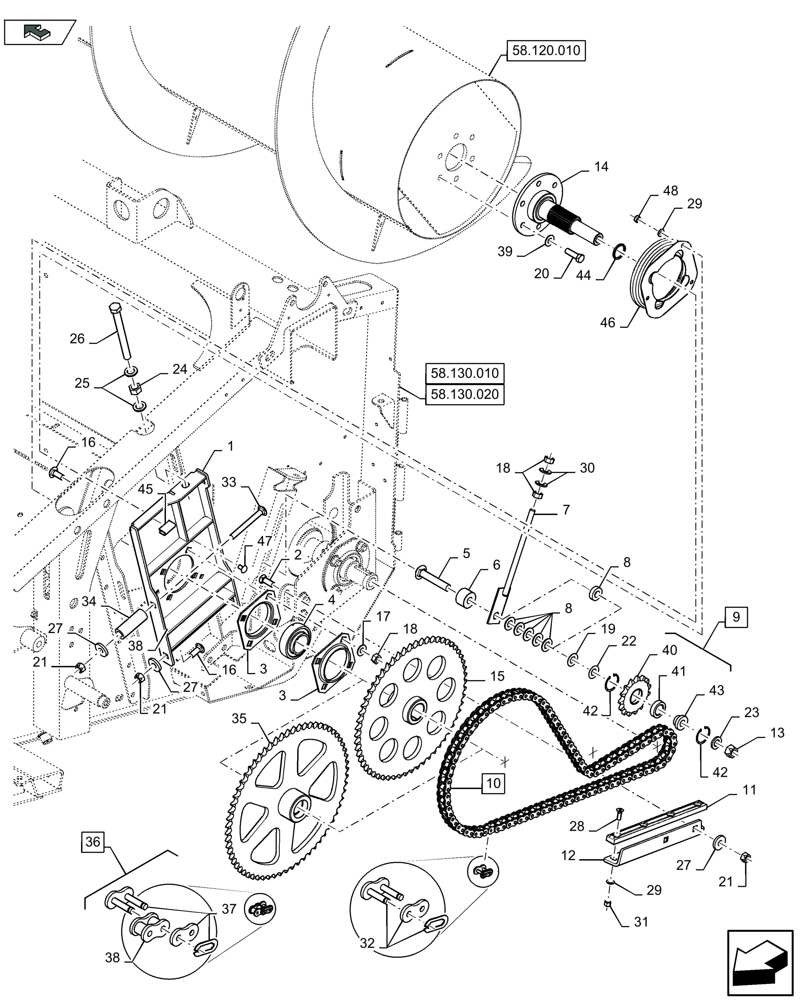

Схема запчастей Case IH 3050-18FT - (58.100.210) - AUGER DRIVE, DRIVE CHAIN - LEFT-HAND SUPPORT (58) - ATTACHMENTS/HEADERS
58.130.020
16
home
6
33
17
26
9
38
27
2
45
29
32
19
42
5
12
14
23
40
21
22
25
36
46
21
4
37
43
35
3
21
20
10
8
30
28
15
27
8
18
1
11
34
7
16
18
27
41
39
13
24
48
47
29
42
38
3
44
58.130.010
31
58.120.010

Артикул

Название

Примечание

Количество

1

84145533

SUPPORT

1шт.

2

87036813

PLOW BOLT,M12 x 35mm, Cl 10.9

2шт.

3

86979948

FLANGE

2шт.

4

84125180

BALL BEARING,45mm ID x 85mm OD x 22mm W

1шт.

MAINTENANCE PART

1шт.

5

120049

CARRIAGE BOLT,Short Nk, M16 x 90mm, Cl 8.8

,, Serial Range: -C943

1шт.

5

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

,, Start Serial: D944

1шт.

6

87751682

BUSHING,16.5mm ID x 40mm OD x 26mm L

1шт.

7

87751292

ROD

,, Serial Range: -C943

1шт.

7

84221149

ROD ASSY.

,, Start Serial: D944

1шт.

8

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

,, Serial Range: -C949

5шт.

8

87693505

BUSHING,17.5mm ID x 25mm OD x 10mm L

,, Serial Range: -F950943

1шт.

9

86627639

SPROCKET,15T

,, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

9

84210960

TENSIONER

Incl 40 - 43, Start Serial: D944

1шт.

MAINTENANCE PART

1шт.

10

87559061

CHAIN,60HZ, 102 Links x 19.05mm = 1943.1mm

Incl 32, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER AND 3050-25FT L-GRAIN HEADER ONLY

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

10

84267064

CHAIN,RC 80, 72 Links x 25.4mm = 1828.8mm

,, Start Serial: D944

1шт.

MAINTENANCE PART

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER AND 3050-25FT L-GRAIN HEADER ONLY

1шт.

10

84267064

CHAIN,RC 80, 72 Links x 25.4mm = 1828.8mm

, Serial Range: -F944125

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

10

47798119

CHAIN

, Serial Range: -F944125

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

FOR HEAVY DUTY ONLY

1шт.

10

47798119

CHAIN

, Start Serial: D126

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

11

87747348

WEAR STRIP

,, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

11

84213929

WEAR STRIP

,, Start Serial: D944

1шт.

MAINTENANCE PART

1шт.

12

84142200

SUPPORT

,, Serial Range: -C943

1шт.

12

84216772

ANGLE

,, Start Serial: D944

1шт.

13

86000441

NUT,M16 x 2.0, Cl 8

1шт.

14

84315709

DRIVE SHAFT

,, Start Serial: D982

1шт.

FOR 3050-16FT-GRAIN HEADER, 3050-18FT-GRAIN HEADER, 3050-20FT-GRAIN HEADER, 3050-22FT-GRAIN HEADER AND 3050-25FT L-GRAIN HEADER ONLY

1шт.

14

87671110

SPINDLE

,, Serial Range: -C941

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

14

84159881

SPINDLE

,, Serial Range: -F942943

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

14

84267737

DRIVE SHAFT

,, Start Serial: D944

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

14

84267737

DRIVE SHAFT

,, Serial Range: -F944991

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

14

84315709

DRIVE SHAFT

,, Start Serial: D992

1шт.

FOR 3050-30FT-GRAIN HEADER AND 3050-35FT-GRAIN HEADER ONLY

1шт.

15

84135988

SPROCKET,58T

,, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

15

84266747

SPROCKET,38T

,, Serial Range: -F944003

1шт.

MAINTENANCE PART

1шт.

15

47579295

SPROCKET,38T

, Start Serial: D004

1шт.

MAINTENANCE PART

1шт.

16

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Serial Range: -C941

4шт.

16

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Start Serial: D942

7шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

18

9706685

NUT,M12 x 1.75, Cl 8

6шт.

19

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

,, Serial Range: -C943

1шт.

19

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

,, Start Serial: D944

3шт.

20

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

,, Serial Range: -C943

6шт.

20

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

,, Start Serial: D944

6шт.

21

100038

NUT,M12 x 1.75, Cl 8

6шт.

22

87524775

SHIM,16.3mm ID x 32mm OD x 0.5mm Thk

,, Serial Range: -C943

1шт.

23

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

,, Serial Range: -C943

1шт.

23

325594

WASHER,M17 x 40mm OD x 5mm Thk

,, Start Serial: D944

1шт.

24

100020

NUT,M16 x 2.0, Cl 8

1шт.

25

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

26

89835228

SCREW

1шт.

27

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

28

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

4шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

30

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

31

412250

NUT,M8 x 1.25, Cl 8

,, Serial Range: -C943

4шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

,, Start Serial: D944

3шт.

32

87750587

EXTENSION

,, Serial Range: -C943

2шт.

MAINTENANCE PART

1шт.

33

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

,, Start Serial: D942

1шт.

34

84162716

SLEEVE,12.5mm ID x 20mm OD x 58mm L

,, Start Serial: D942

1шт.

35

84136004

SPROCKET,64T

,, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

35

47579289

SPROCKET,47T

,, Start Serial: D944

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

36

87479485

EXTENSION

Incl 37, 38, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

36

84268316

CHAIN,RC 80, 7 Links x 25.4mm = 177.8mm

,, Start Serial: D944

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

37

87750587

EXTENSION

,, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

38

187609

CONNECTING LINK

,, Serial Range: -C943

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

39

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

,, Serial Range: -C943

6шт.

39

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

,, Serial Range: -F944961

6шт.

40

84210098

SPROCKET

,, Start Serial: D944

1шт.

41

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

,, Start Serial: D944

1шт.

42

370012

RING,M62, Internal

,, Start Serial: D944

2шт.

43

84210965

BUSHING

,, Start Serial: D944

1шт.

44

84308394

WASHER

,, Start Serial: D961

1шт.

FOR 3050-25FT H-GRAIN HEADER ONLY

1шт.

45

9850033

SEAL

L=0.15M, Start Serial: D967

1шт.

46

47517885

HOUSING

, Start Serial: D052

1шт.

47

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Start Serial: D052

3шт.

48

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D052

3шт.

Выбрано товаров: 114
