(35.410.221) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - D078

Запчасти Case IH 3050-18FT (35.410.221) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - D078 (35) - HYDRAULIC SYSTEMS

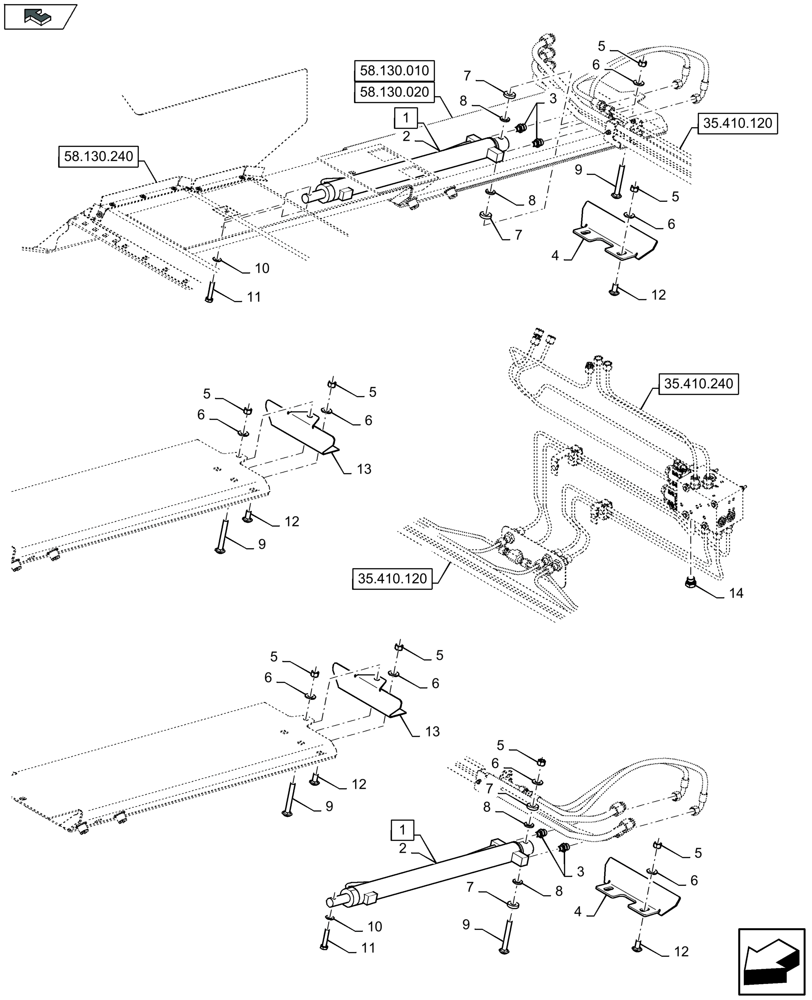

Схема запчастей Case IH 3050-18FT - (35.410.221) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - D078 (35) - HYDRAULIC SYSTEMS
35.410.120
7
5
6
5
5
14
10
6
6
5
5
12
6
9
home
4
12
2
6
2
13
9
8
3
6
7
11
5
1
7
8
6
8
4
11
12
9
6
5
9
5
13
12
1
10
3
58.130.010
8
7
35.410.240
58.130.020
58.130.240
35.410.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87602982

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 575mm Stroke

Adjustable floor, forward - backward, Incl 2

2шт.

2

84023914

SEAL KIT

1шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

4шт.

4

84395392

DEFLECTOR

2шт.

5

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

12шт.

6

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

12шт.

7

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

4шт.

8

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

4шт.

9

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

12

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

13

47840053

PLATE

2шт.

14

87030025

PLUG,Hex, M18 x 1.5 ORB

2шт.
