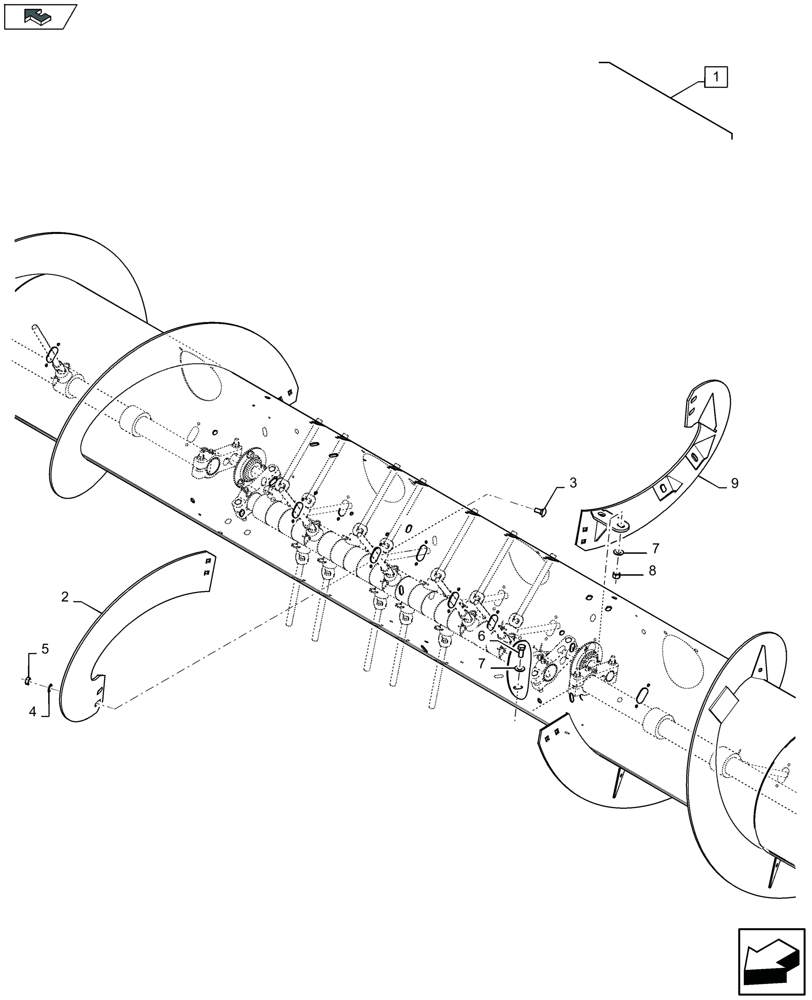

Запчасти Case IH 3050-18FT (88.058.003) - DIA KIT : ADD ON AUGER EXTENSION - C027 (88) - ACCESSORIES

1

84265932

DIA KIT, HARVESTER

Incl 2 - 9

1шт.

2

84224155

AUGER FLIGHT

1шт.

3

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

100016

NUT,M10 x 1.5, Cl 8

4шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

10шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20шт.

8

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

10шт.

9

84224152

AUGER FLIGHT

1шт.
