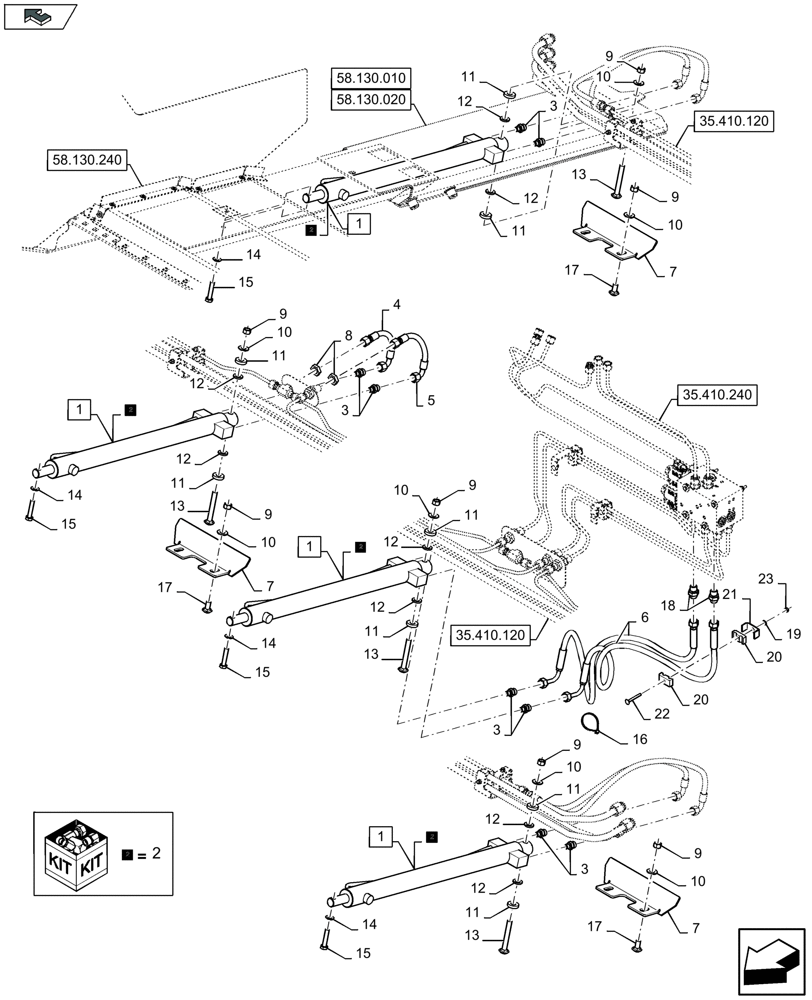

Запчасти Case IH 3050-16FT (35.410.220) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - C077 (35) - HYDRAULIC SYSTEMS

1

87602982

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 575mm Stroke

Adjustable floor, forward - backward, Incl 2

4шт.

2

84023914

SEAL KIT

1шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

8шт.

4

87715587

HOSE

1шт.

5

84143976

FLEXIBLE HOSE

1шт.

6

84333586

HOSE

2шт.

7

84395392

DEFLECTOR

4шт.

8

87010704

BHD LOCK NUT,11/16"-16

2шт.

9

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

12шт.

10

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

12шт.

11

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

8шт.

12

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

8шт.

13

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

4шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

15

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

16

86566989

CABLE TIE,208mm L

2шт.

17

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

18

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

20

430357

CLAMP

2шт.

21

431941

SUPPORT

1шт.

22

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

2шт.

23

353308

NUT,M6 x 1.0, Cl 8

1шт.
