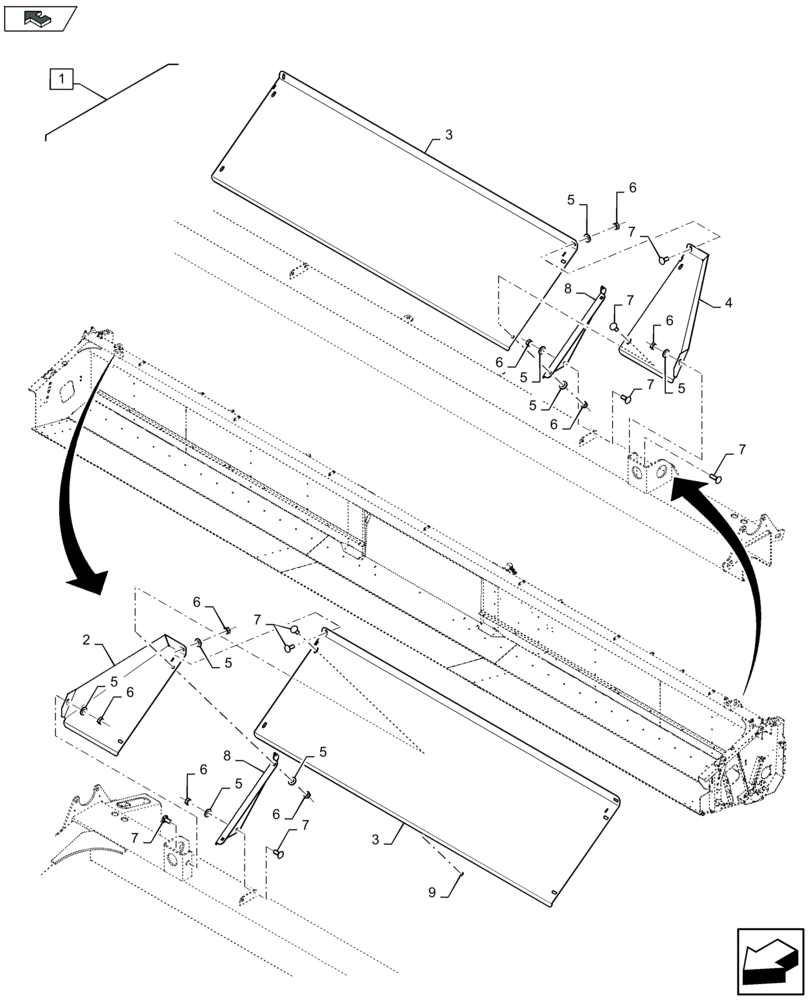

Запчасти Case IH 3050-16FT (88.058.068) - DIA KIT : BACKSHEET EXTENSION KIT (ASN008) - D993 (88) - ACCESSORIES

1

47465835

DIA KIT, HARVESTER

Incl 2 - 9

1шт.

2

47465811

COVER PLATE

1шт.

3

47465819

PLATE

2шт.

4

47465833

COVER PLATE

1шт.

5

86588500

WASHER,9mm ID x 16mm OD x 2mm Thk

17шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

17шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

17шт.

8

47465802

SUPPORT

3шт.

9

86975394

BUMPER

2шт.
