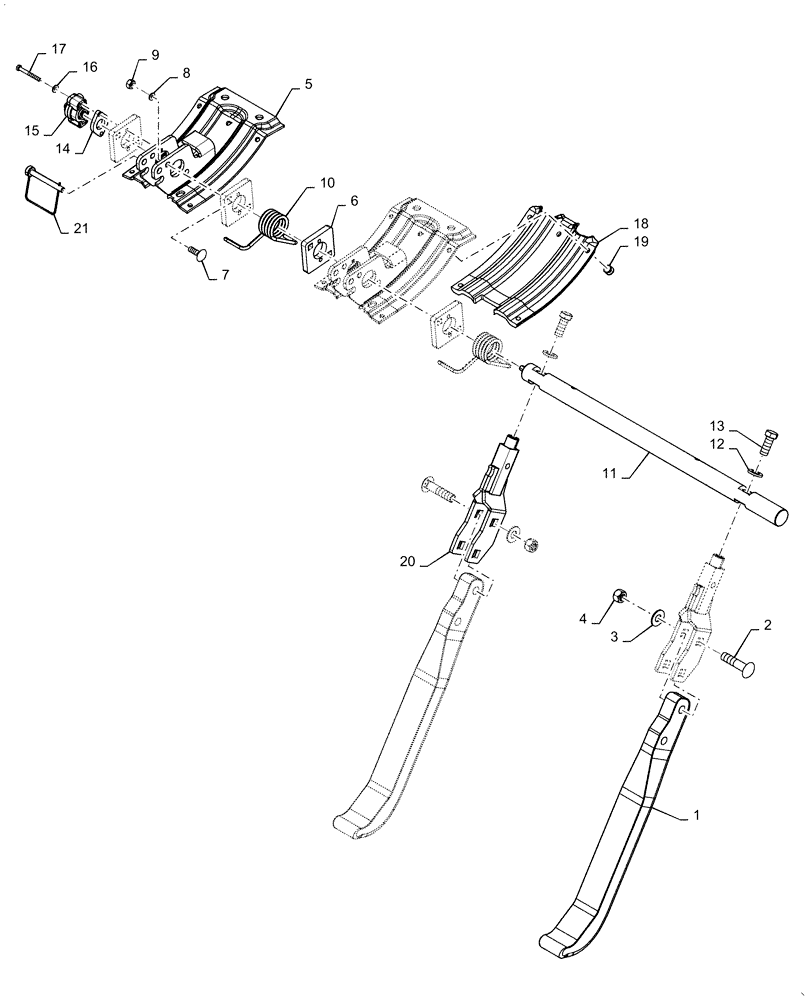

Запчасти Case IH 3020-35 (58.131.05) - AHHC SENSOR/FEELER WIDE, ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

47851105

ARM

Feeler

2шт.

2

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

2шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

4

118490

NUT,M12 x 1.75, Cl 8

2шт.

5

47373632

SKID/SHOE

2шт.

6

84361606

WEAR PLATE

4шт.

7

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

8шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

9

43362

NUT,M8 x 1.25, Cl 10

8шт.

10

47461740

TORSION SPRING

2шт.

11

84419744

SHAFT

1шт.

12

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

84333216

SPACER

1шт.

15

47419430

SENSOR,CW

Angle Position

1шт.

16

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

2шт.

17

86508567

BOLT,Hex, M5 x 45mm, Cl 8.8

2шт.

18

84338989

SKID/SHOE

2шт.

19

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

10шт.

20

84599982

BAR

2шт.

21

647695

PIN,7.94mm OD

1шт.
