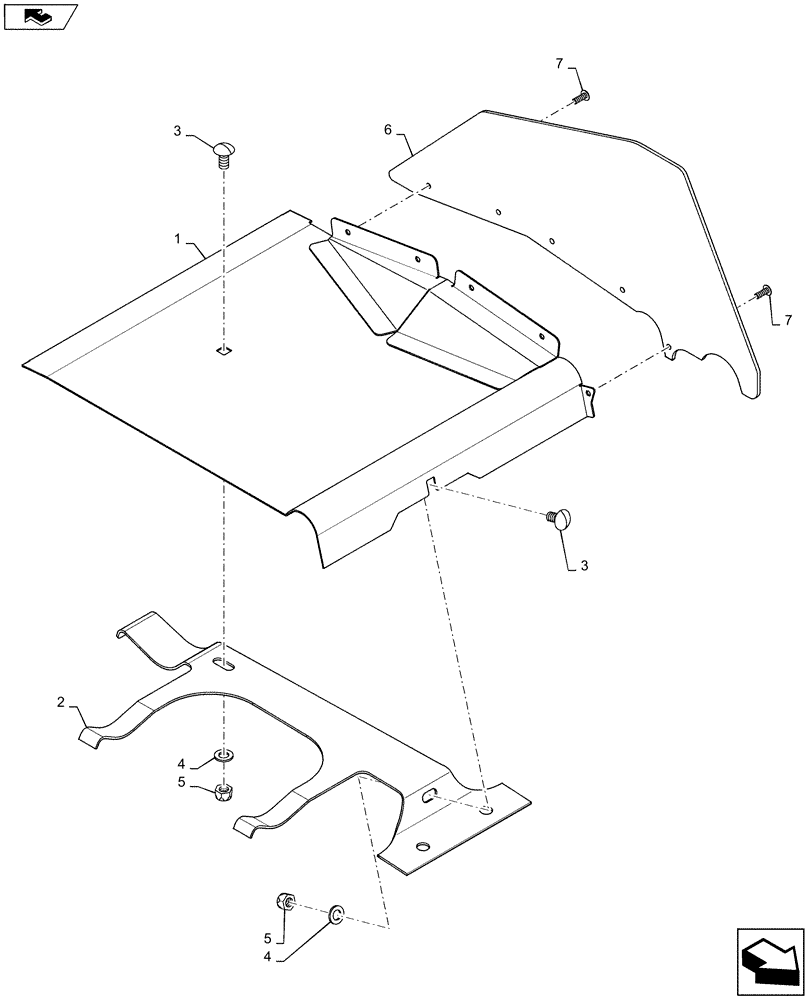

Запчасти Case IH 3020-35 (58.130.04[05]) - FLOOR, ASSY, LH END (58) - ATTACHMENTS/HEADERS

1

47428302

SHEET

LH, Outer

1шт.

2

84324323

LEAF SPRING

LH

1шт.

3

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

6

47428296

PLATE

1шт.

7

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.
