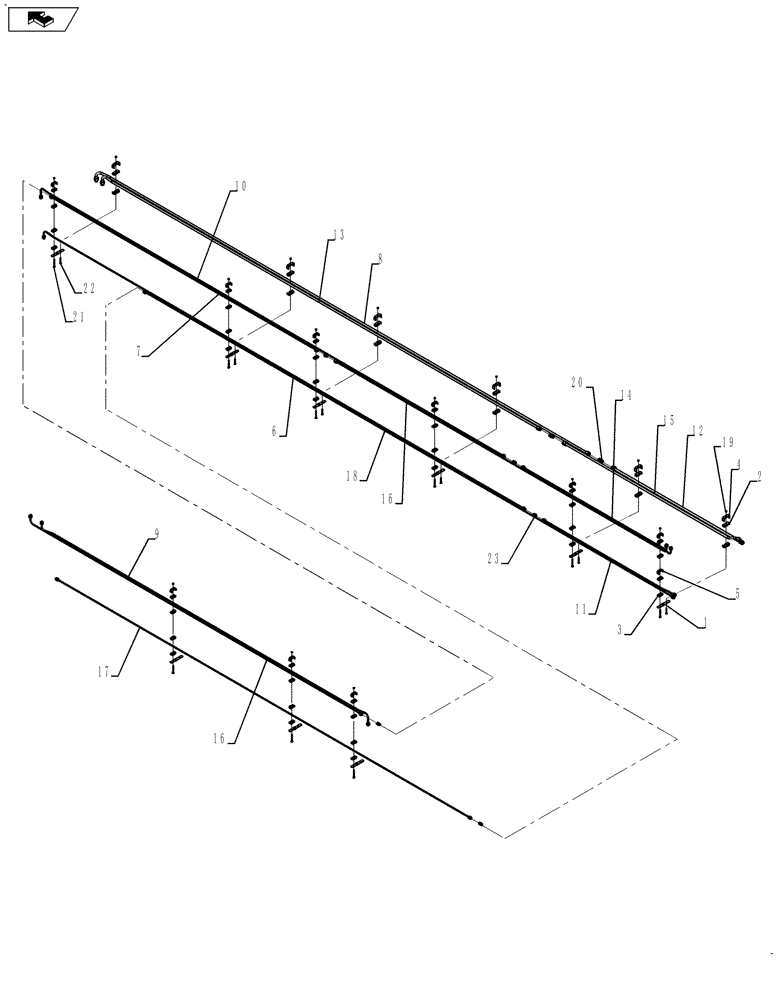

Запчасти Case IH 3020-35 (35.410.02[02]) - STANDARD HYDRAULIC SYSTEM, 30 AND 35 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

84140859

BRACKET

Hydraulic Tube Clamps, 30 Foot Header

8шт.

1

84140859

BRACKET

Hydraulic Tube Clamps, 35 Foot Header

9шт.

2

430356

CLAMP

Hydraulic Tubes, 30 Foot Header

10шт.

2

430356

CLAMP

Hydraulic Tubes, 35 Foot Header

12шт.

3

430357

CLAMP

Hydraulic Tubes, 30 Foot Header

32шт.

3

430357

CLAMP

Hydraulic Tubes, 35 Foot Header

36шт.

4

84814948

SUPPORT

Hydraulic Tube Clamps, 30 Foot Header

5шт.

4

84814948

SUPPORT

Hydraulic Tube Clamps, 35 Foot Header

6шт.

5

431941

SUPPORT

Hydraulic Tube Clamps, 30 Foot Header

8шт.

5

431941

SUPPORT

Hydraulic Tube Clamps, 35 Foot Header

10шт.

6

84139193

HYD TUBE,8.00 mm OD

Header Hydraulic System

1шт.

7

84146726

HYD TUBE,8 mm OD x 1493 mm L

Header Hydraulic System, 30 Foot Header

1шт.

7

87654200

HYD TUBE,8 mm OD x 3017 mm L

Header Hydraulic System, 35 Foot Header

1шт.

8

84139174

HYD TUBE,16.00 mm OD

Header Hydraulic System

1шт.

9

84146722

HYD TUBE,8 mm DIA

Header Hydraulic System, 30 Foot Header

1шт.

9

87654198

HYD TUBE,.375" OD

Header Hydraulic System, 35 Foot Header

1шт.

10

84146748

HYD TUBE,8 mm OD x 4486, 106 mm L

Header Hydraulic System, 30 Foot Header

1шт.

10

87654194

HYD TUBE,.375" OD

Header Hydraulic System, 35 Foot Header

1шт.

11

84146753

HYD TUBE,8 mm OD x 730.50 mm L

Header Hydraulic System, 30 Foot Header

1шт.

11

84139191

HYD TUBE,16.00 mm OD x 2000.80, 40 mm L

Header Hydraulic System, 35 Foot Header

1шт.

12

84146743

HYD TUBE,16 mm OD x 719.30 mm L

Header Hydraulic System, 30 Foot Header

1шт.

12

84139172

HYD TUBE,16.00 mm OD x 1481.30 mm L

Header Hydraulic System, 35 Foot Header

1шт.

13

84139203

HYD TUBE,16.00 mm OD

Header Hydraulic System

1шт.

14

87654195

HYD TUBE,.375" OD

Header Hydraulic System

1шт.

15

84146729

HYD TUBE,16 mm OD x 1238.80, 40 mm L

Header Hydraulic System, 30 Foot Header

1шт.

15

84139188

HYD TUBE,16.00 mm OD x 2000.80, 40 mm L

Header Hydraulic System, 35 Foot Header

1шт.

16

87654196

HYD TUBE,.375" OD

Header Hydraulic System

2шт.

17

84146757

HYD TUBE,8 mm OD x 3165.20 mm L

Header Hydraulic System, 30 Foot Header

1шт.

17

84138467

HYD TUBE,8 mm OD, 4689.2 mm Length

Header Hydraulic System, 35 Foot Header

1шт.

18

84139195

HYD TUBE,8.00 mm OD x 5989.80 mm L

Header Hydraulic System

1шт.

19

353308

NUT,M6 x 1.0, Cl 8

30 Foot Header

13шт.

19

353308

NUT,M6 x 1.0, Cl 8

35 Foot Header

15шт.

20

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

21

86512419

CARRIAGE BOLT,Sq Nk, M6 x 70mm, Cl 8.8

30 Foot Header

8шт.

21

86512419

CARRIAGE BOLT,Sq Nk, M6 x 70mm, Cl 8.8

35 Foot Header

9шт.

22

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

30 Foot Header

5шт.

22

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

35 Foot Header

6шт.

23

84431546

UNION,11/16"-16 ORFS

5шт.
