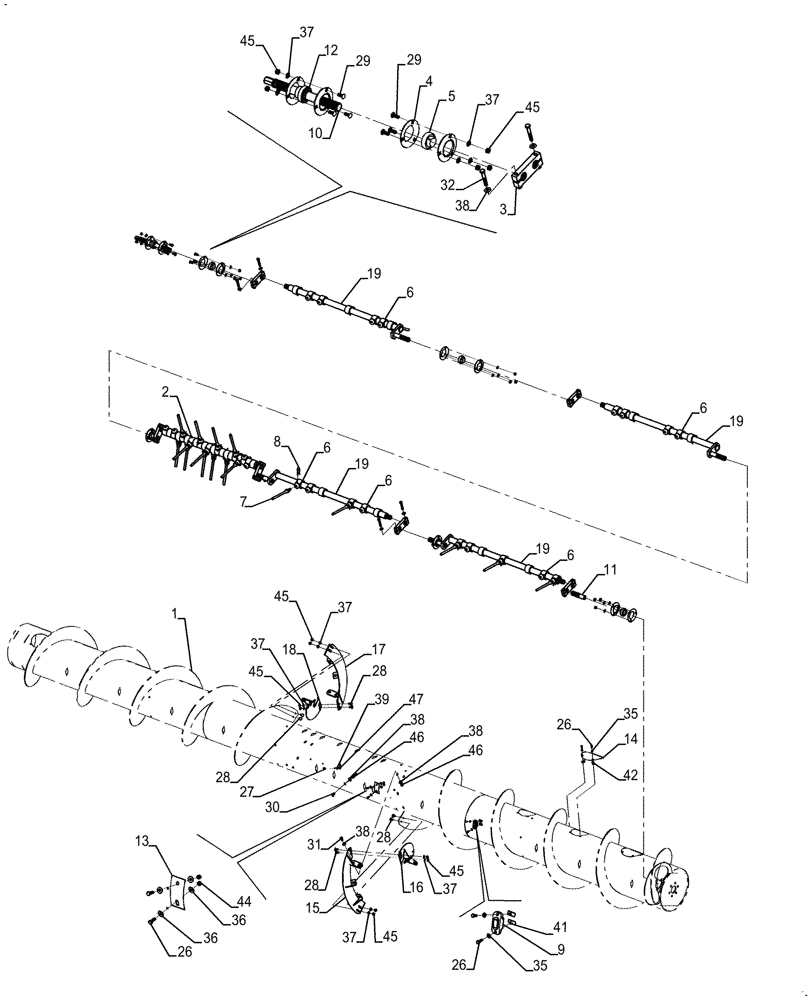

Запчасти Case IH 3020-35 (58.120.01) - AUGER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

84318440

AUGER

20 Foot Header

1шт.

1

84244830

AUGER

25 Foot Header

1шт.

1

84244833

AUGER

30 Foot Header

1шт.

1

84244836

AUGER

35 Foot Header

1шт.

2

84261948

SHAFT

1шт.

3

86620720

CRANKED LINK

6шт.

4

86620026

FLANGED BEARING

14шт.

5

87323339

BALL BEARING,35mm ID x 72mm OD x 19mm W

6шт.

6

84362468

JOINT

20 Foot Header

37шт.

6

84362468

JOINT

25 Foot Header

47шт.

6

84362468

JOINT

30 Foot Header

52шт.

6

84362468

JOINT

35 Foot Header

57шт.

7

84194057

FINGER,Assembly, Grain Header

20 Foot Header

27шт.

7

84194057

FINGER,Assembly, Grain Header

25 Foot Header

33шт.

7

84194057

FINGER,Assembly, Grain Header

30 Foot Header

38шт.

7

84194057

FINGER,Assembly, Grain Header

35 Foot Header

43шт.

8

740591

SPRING,M10 x 67

20 Foot Header

27шт.

8

740591

SPRING,M10 x 67

25 Foot Header

33шт.

8

740591

SPRING,M10 x 67

30 Foot Header

38шт.

8

740591

SPRING,M10 x 67

35 Foot Header

43шт.

9

87620690

GUIDE,Auger Finger

20 Foot Header

27шт.

9

87620690

GUIDE,Auger Finger

25 Foot Header

33шт.

9

87620690

GUIDE,Auger Finger

30 Foot Header

38шт.

9

87620690

GUIDE,Auger Finger

35 Foot Header

43шт.

10

84261952

SHAFT

1шт.

11

87392469

SHAFT

Left Hand

1шт.

12

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

1шт.

13

87471091

COVER

6шт.

14

87017844

COVER

Protection, 20 Foot Header

8шт.

14

87017844

COVER

Protection, 25 Foot Header

11шт.

14

87017844

COVER

Protection, 30 Foot Header

14шт.

14

87017844

COVER

Protection, 35 Foot Header

16шт.

15

84224159

AUGER FLIGHT

Left Hand

1шт.

16

84263900

AUGER FLIGHT

Left Hand

1шт.

17

84224162

AUGER FLIGHT

Right Hand

1шт.

18

84263896

AUGER FLIGHT

Right Hand

1шт.

19

84261950

SHAFT

20 Foot Header

2шт.

19

84264839

SHAFT

25 Foot Header

4шт.

19

84264237

SHAFT

30 Foot Header

4шт.

19

84261950

SHAFT

35 Foot Header

4шт.

24

84268307

NUT,M6 x 0.75, 8 ZND

6шт.

25

84262759

SET SCREW,M6 x 0.75 x 16mm

6шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

20 Foot Header

82шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

25 Foot Header

100шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

30 Foot Header

116шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

35 Foot Header

130шт.

27

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

20 Foot Header

6шт.

27

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

28

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

29

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

30

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

12шт.

31

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

14шт.

32

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

12шт.

33

86014250

SPRING NUT,M6 x 1.0

20 Foot Header

16шт.

33

86014250

SPRING NUT,M6 x 1.0

25 Foot Header

22шт.

33

86014250

SPRING NUT,M6 x 1.0

30 Foot Header

28шт.

33

86014250

SPRING NUT,M6 x 1.0

35 Foot Header

32шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20 Foot Header

80шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

25 Foot Header

94шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

30 Foot Header

110шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

35 Foot Header

124шт.

36

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

24шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

29шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

52шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

84315756

NUT

20 Foot Header

54шт.

41

84315756

NUT

25 Foot Header

66шт.

41

84315756

NUT

30 Foot Header

76шт.

41

84315756

NUT

35 Foot Header

86шт.

42

86014250

SPRING NUT,M6 x 1.0

1шт.

44

353308

NUT,M6 x 1.0, Cl 8

12шт.

45

100016

NUT,M10 x 1.5, Cl 8

29шт.

46

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

26шт.

47

9706690

NUT,M8 x 1.25, Cl 8

6шт.
