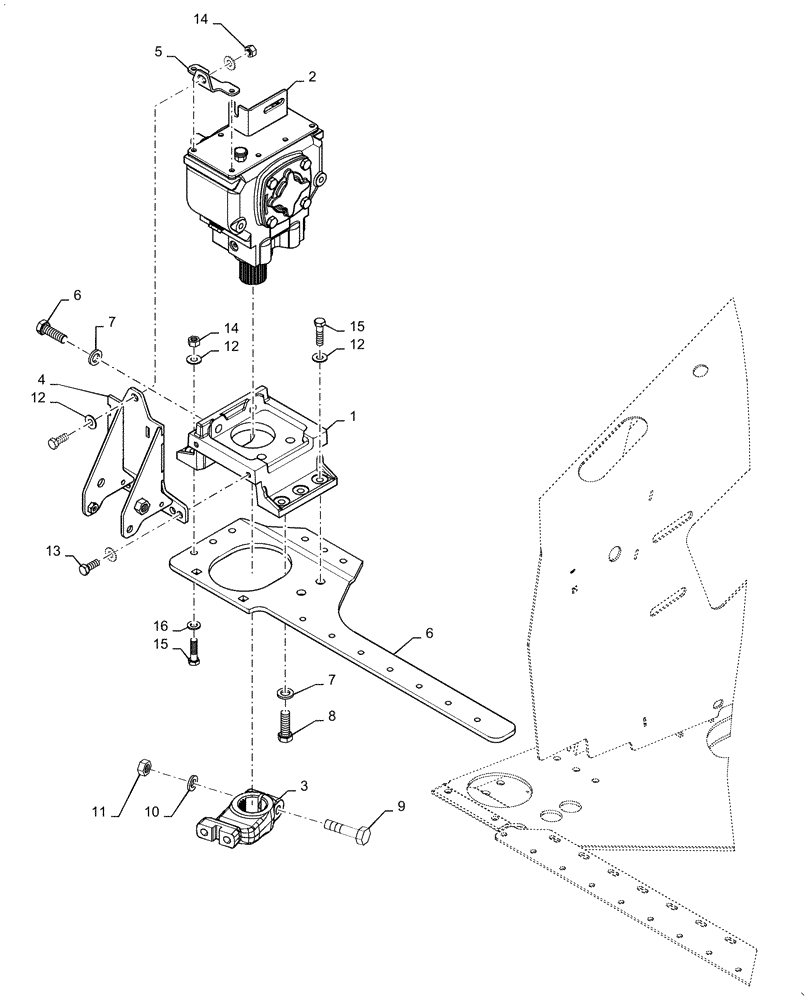

Запчасти Case IH 3020-35 (58.110.05[01]) - WOBBLE BOX ASSEMBLY, RH, DOUBLE DRIVE ONLY (58) - ATTACHMENTS/HEADERS

1

84489286

SUPPORT

Wobble Box, RH

1шт.

2

87724927

WOBBLE BOX

1шт.

3

87719769

PIVOTING ARM

Wobble Box, M12, Serial Range: -YDH220752

1шт.

3

47390301

ARM

Pivoting Wobble Box, M16, Start Serial: YDH220752

1шт.

4

84484156

MOUNT

Wobble Box, RH

1шт.

5

84129479

BRACKET

Wobble Box

1шт.

6

84479456

PLATE

Top, RH

1шт.

7

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

15840531

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

9

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

1шт.

10

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

1шт.

11

86000441

NUT,M16 x 2.0, Cl 8

1шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

9шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

14

9706685

NUT,M12 x 1.75, Cl 8

4шт.

15

120080

BOLT,Hex, M12 x 45, 8.8

5шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.
