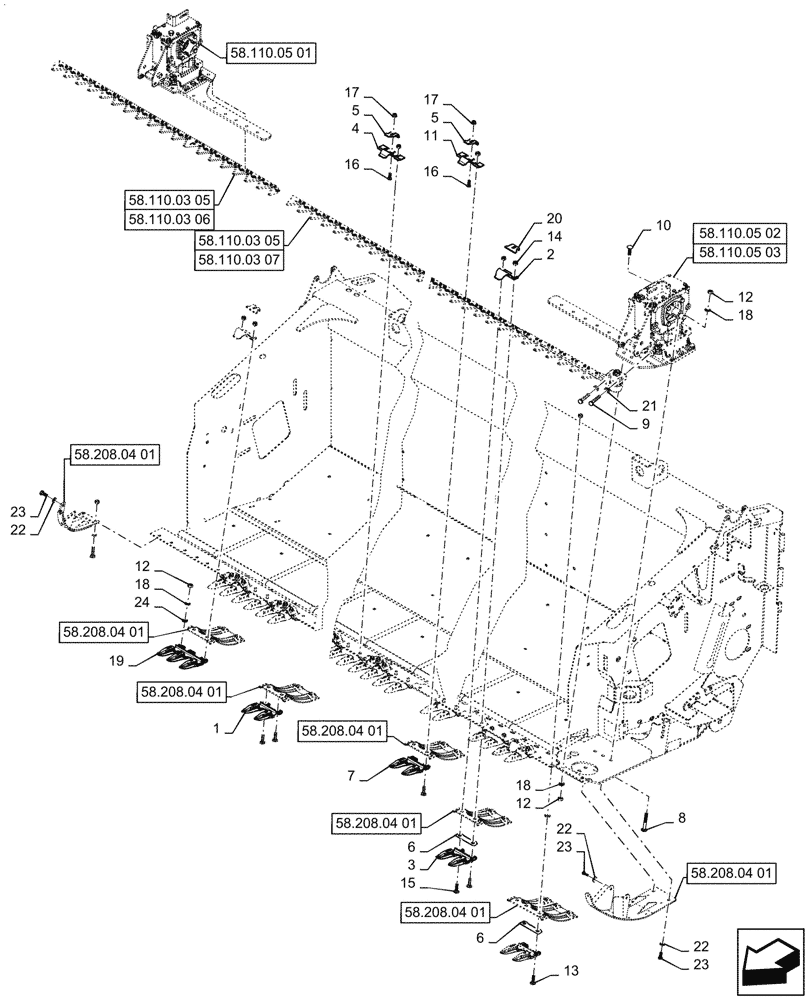

Запчасти Case IH 3020-35 (58.110.04[02]) - CUTTERBAR, 3-INCH, STANDARD GUARD, DOUBLE DRIVE (58) - ATTACHMENTS/HEADERS

1

87702974

GUARD

Guard

7шт.

2

84422134

KNIFE CLIP

4шт.

3

87702973

GUARD

30 Foot, Guard HT

51шт.

3

87702973

GUARD

35 Foot, Guard HT

61шт.

4

86630786

KNIFE CLIP,Heat Treated

RH, 30 Foot

13шт.

4

86630786

KNIFE CLIP,Heat Treated

RH, 35 Foot

16шт.

5

86630787

KNIFE CLIP

30 Foot

26шт.

5

86630787

KNIFE CLIP

35 Foot

31шт.

6

84369441

SHIM

30 Foot, Zinc Plated

31шт.

6

84396061

SHIM,31mm OD x 3.25mm Thk

30 Foot, Painted

31шт.

6

84369441

SHIM

35 Foot, Zinc Plated

36шт.

6

84396061

SHIM,31mm OD x 3.25mm Thk

35 Foot, Painted

36шт.

7

87470814

KNIFE COVER

Overlap Guard

1шт.

8

84818450

CARRIAGE BOLT,M12 x 85mm, Cl 8.8

6шт.

9

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

, Serial Range: -YDH220751

4шт.

9

120092

BOLT,M16 x 70mm, Cl 8.8

, Start Serial: YDH220752

4шт.

10

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

11

84184577

KNIFE CLIP

LH, 30 Foot

13шт.

11

84184577

KNIFE CLIP

LH, 35 Foot

15шт.

12

9706685

NUT,M12 x 1.75, Cl 8

10шт.

13

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

30 Foot

61шт.

13

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

35 Foot

71шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

30 Foot

121шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

35 Foot

141шт.

15

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

30 Foot

60шт.

15

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

35 Foot

70шт.

16

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

30 Foot

30шт.

16

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

35 Foot

35шт.

17

86619802

FLANGE NUT,M10 x 1.5, Cl 8

30 Foot

30шт.

17

86619802

FLANGE NUT,M10 x 1.5, Cl 8

35 Foot

35шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

10шт.

19

84225871

KNIFE COVER

3 Point Guard

1шт.

20

84422992

ADJUSTING PLATE

4шт.

21

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

, Serial Range: -YDH220751

4шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

, Start Serial: YDH220752

4шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

24

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

2шт.
