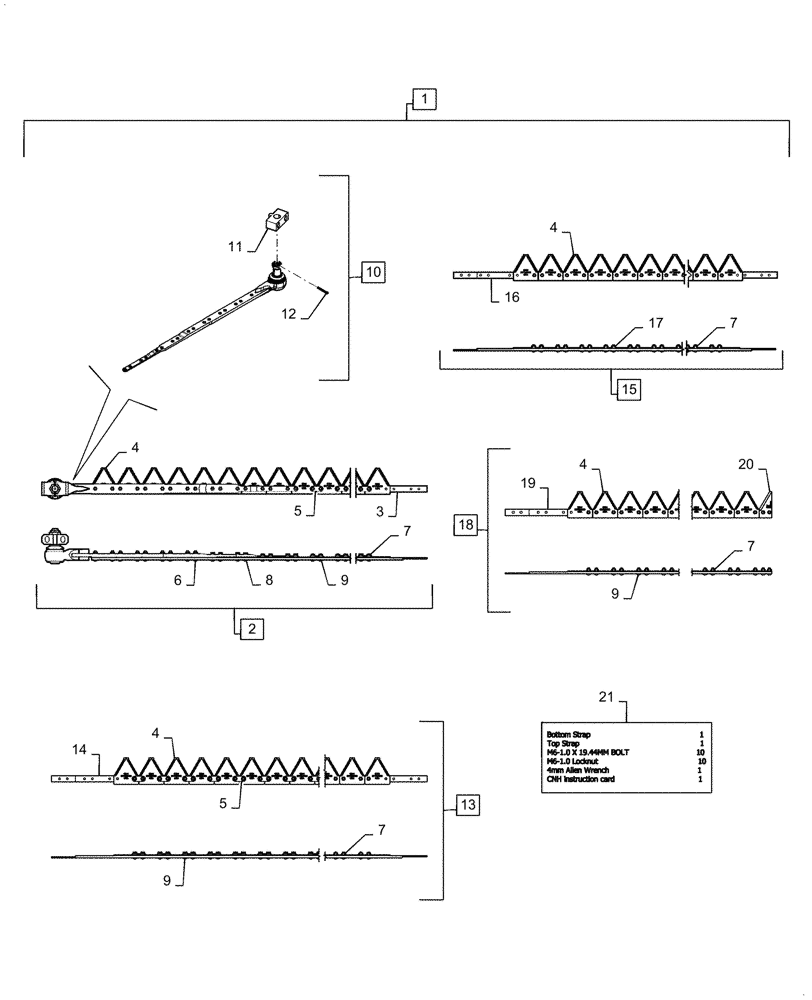

Запчасти Case IH 3020-35 (58.110.03) - SEGMENTED KNIFE ASSY (58) - ATTACHMENTS/HEADERS

1

84585665

KNIFE

35FT Fine, Segmented Assy, Incl 2 - 21

1шт.

1

84585664

KNIFE

35FT Coarse, Segmented Assy, Incl 2 - 21

1шт.

2

84585638

KNIFE

Fine, Segmented Head Assy, Incl 3 - 12

1шт.

2

84585637

KNIFE

Coarse, Segmented Head Assy, Incl 3 - 12

1шт.

3

84585680

STRIP

1шт.

4

87728899

KNIFE SECTION

Fine

140шт.

4

87728905

KNIFE SECTION

Coarse

140шт.

5

321848A1

KNIFE CLIP

48шт.

6

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

9шт.

7

84429102

LOCK NUT

240шт.

8

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

4шт.

9

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

121шт.

10

84275285

CUTTERHEAD

Incl 11, 12, Serial Range: -YDH420266

1шт.

Applies To 84585665 And 84585664

1шт.

10

84275287

CUTTERHEAD

Incl 11, 12, Start Serial: YDH420267

1шт.

Applies To 47601023 And 47601024

1шт.

11

84275917

CONNECTING BLOCK

, Serial Range: -YDH420266

1шт.

Applies To 84585665 And 84585664

1шт.

11

47390299

BLOCK

, Start Serial: YDH420267

1шт.

Applies To 47601023 And 47601024

1шт.

12

300595

COTTER PIN,M4 x 40

1шт.

13

84585644

KNIFE

Fine, Segmented Center Assy, Incl 4, 5, 7, 9, 14

1шт.

13

84585643

KNIFE

Coarse, Segmented Center Assy, Incl 4, 5, 7, 9, 14

1шт.

14

NSS

NOT SOLD SEPARAT

Knifeback

1шт.

15

84585646

KNIFE

Fine, Segmented Center Assy, Incl 4, 7, 16, 17

2шт.

15

84585645

KNIFE

Coarse, Segmented Center Assy, Incl 4, 7, 16, 17

2шт.

16

NSS

NOT SOLD SEPARAT

Knifeback

1шт.

17

86563537

BOLT

116шт.

18

84585649

KNIFE

Fine, Segmented Tail Assy, Incl 4, 7, 9, 19, 20

1шт.

18

84585648

KNIFE

Coarse, Segmented Tail Assy, Incl 4, 7, 9, 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Knifeback

1шт.

20

84543491

KNIFE SECTION

Half

1шт.

21

84585647

SERVICE KIT

Metric Splice

4шт.
