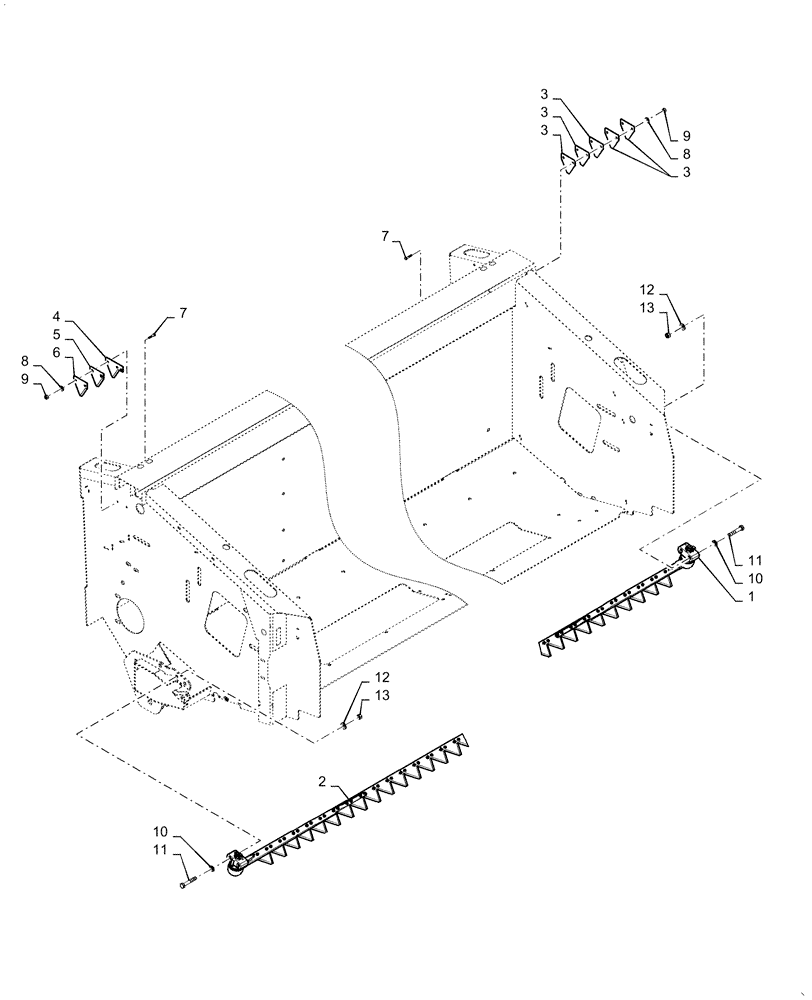

Запчасти Case IH 3020-35 (58.110.03[02]) - KNIFE ASSEMBLY, SPARES, FINE, DD (58) - ATTACHMENTS/HEADERS

1

84493625

KNIFE ASSY

30 Foot DD Header, LH

1шт.

1

84486510

KNIFE ASSY

35 Foot DD Header, LH

1шт.

2

84493630

KNIFE ASSY

30 Foot DD Header, RH

1шт.

2

84486512

KNIFE ASSY

35 Foot DD Header, RH

1шт.

3

87728899

KNIFE SECTION

30 & 35 Foot DD Header

5шт.

4

87470188

KNIFE SECTION

Tomahawk, 30 & 35 Foot DD Header

1шт.

5

84467292

KNIFE SECTION

30 & 35 Foot DD Header

1шт.

6

84467282

KNIFE SECTION

30 & 35 Foot DD Header

1шт.

7

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

9

9706755

NUT,M6, Cl 8

4шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

, Serial Range: -YDH220752

4шт.

10

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

, Start Serial: YDH220752

4шт.

11

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

, Serial Range: -YDH220752

4шт.

11

120092

BOLT,M16 x 70mm, Cl 8.8

, Start Serial: YDH220752

4шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Serial Range: -YDH220752

4шт.

12

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

, Start Serial: YDH220752

4шт.

13

337475

NUT,M12, Cl 10

, Serial Range: -YDH220752

4шт.

13

392530

NUT,M16, Cl 10

, Start Serial: YDH220752

4шт.
