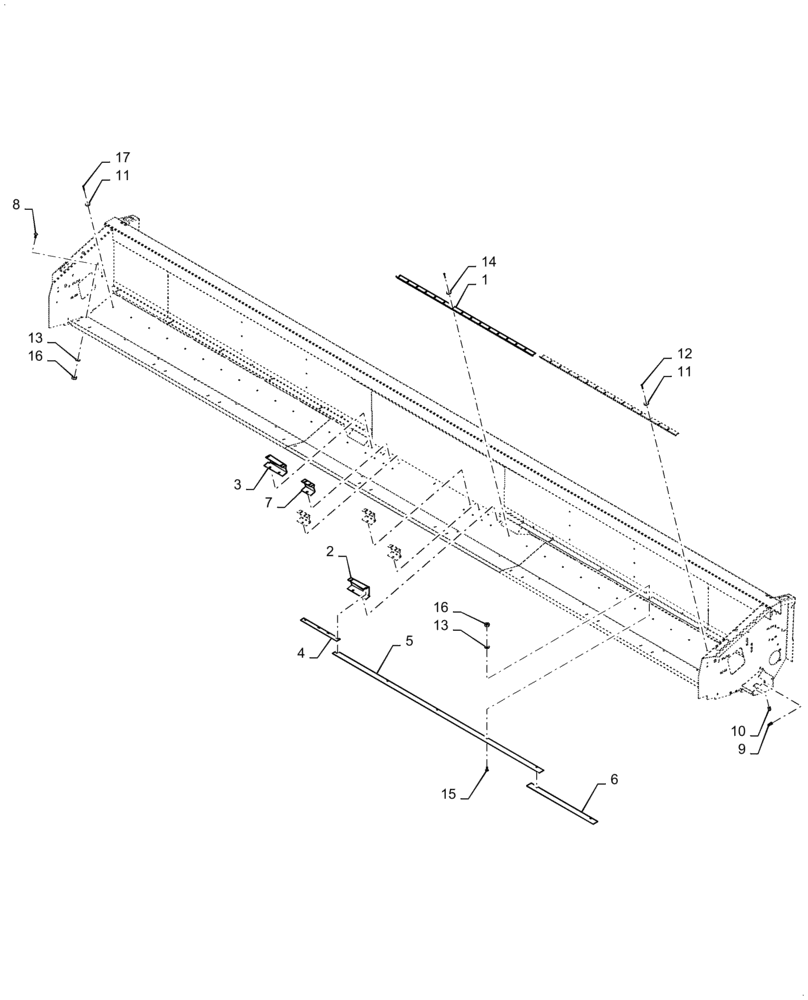

Запчасти Case IH 3020-35 (58.110.01) - STRIPPER, ASSY (58) - ATTACHMENTS/HEADERS

1

87555156

STRIPPER

4шт.

2

84256945

BRACKET

LH

1шт.

3

84256946

BRACKET

RH

1шт.

4

84216518

STRIP

Center

2шт.

5

84304905

STRIP

Inside

2шт.

6

84304908

STRIP

Out

2шт.

7

84215790

BRACKET

4шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

18шт.

9

84322796

RIVET,13mm OD x 34.4mm L

24шт.

10

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

50шт.

11

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

38шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

38шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

44шт.

14

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

2шт.

15

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

18шт.

16

43362

NUT,M8 x 1.25, Cl 10

36шт.

17

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

10шт.
