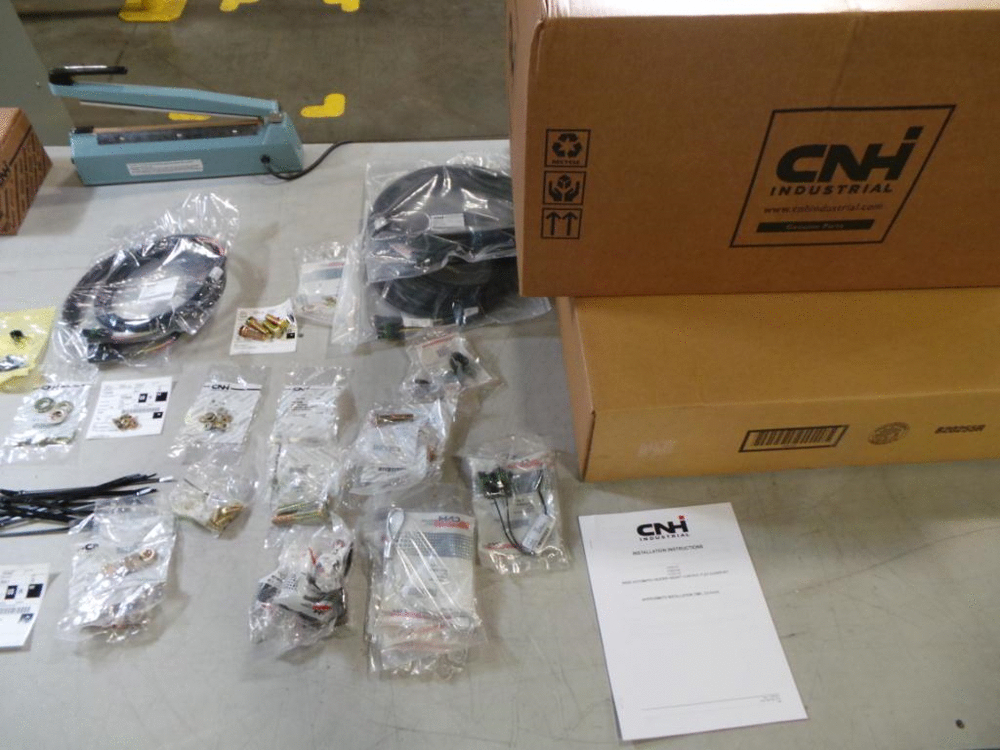

Запчасти Case IH 3020-35 (88.058.27[01]) - KIT RIGID HHC KIT AUGER SD 30-35 (88) - ACCESSORIES

1

47850158

KIT

Incl 2 - 22

1шт.

2

47851873

INSTRUCTION

1шт.

3

47463822

ARM

Arm Assy Auger Narrow

1шт.

4

47463821

ARM

Arm Assy Auger Wide

3шт.

5

84483639

WIRE HARNESS

Height Ext

2шт.

6

84483640

WIRE HARNESS

HT/ Tilt EXT

2шт.

7

47466662

CLEVIS

4шт.

8

47473855

CABLE

4шт.

9

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

11

118490

NUT,M12 x 1.75, Cl 8

12шт.

12

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

14

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

4шт.

15

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

4шт.

16

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

6шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

16шт.

18

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

19

353308

NUT,M6 x 1.0, Cl 8

8шт.

20

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

21

86566989

CABLE TIE,208mm L

15шт.

22

47425969

PLUG

Sensor

2шт.
