Запчасти Case IH 3020-30 (88.058.05[02]) - DIA KIT, AHHC 30FT - 35FT, SINGLE DRIVE (88) - ACCESSORIES

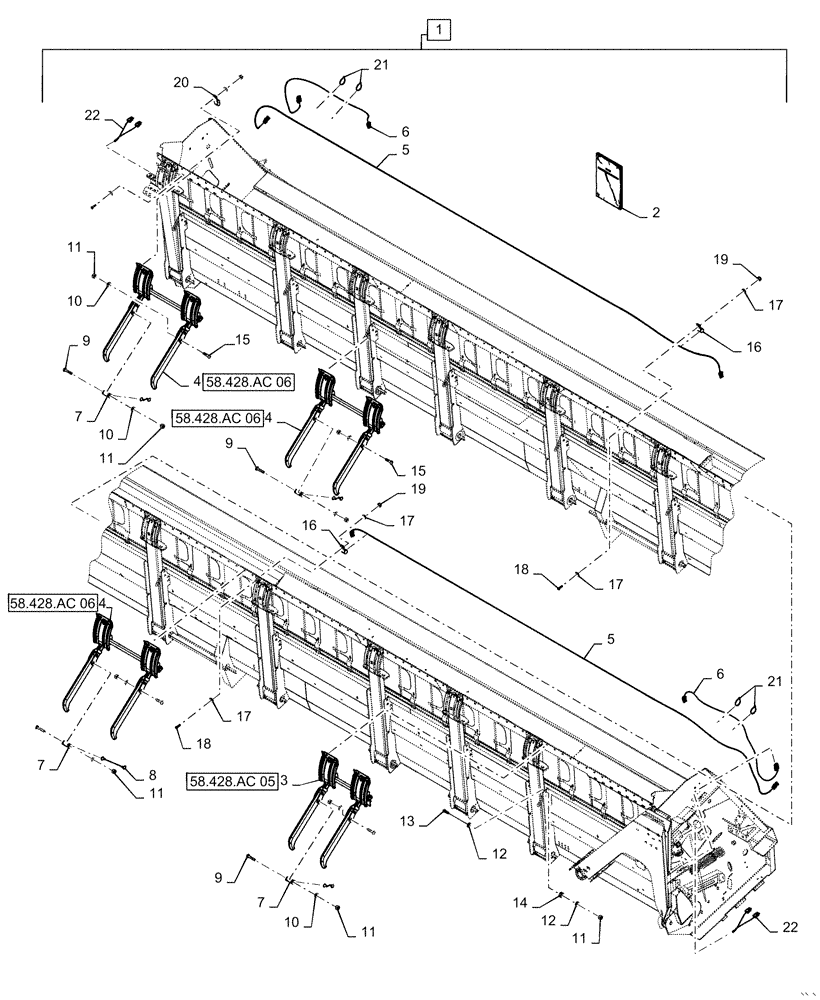

Схема запчастей Case IH 3020-30 - (88.058.05[02]) - DIA KIT, AHHC 30FT - 35FT, SINGLE DRIVE (88) - ACCESSORIES
58.428.ac 05
4
11
11
17
11
12
17
7
1
12
19
10
20
4
22
5
9
9
17
7
3
21
16
19
11
14
6
4
10
15
21
7
11
9
6
18
18
2
13
16
22
8
15
17
10
5
58.428.ac 06
58.428.ac 06
58.428.ac 06

Артикул

Название

Примечание

Количество

1

47473028

SERVICE KIT

AHHC, 30ft - 35ft, SD, Incl 2 - 22

1шт.

2

47437106

INSTRUCTION

AHHC, Single Drive

1шт.

3

47463822

ARM

Assy, Auger, Narrow

1шт.

4

47463821

ARM

Assy, Auger, Wide

3шт.

5

84483639

WIRE HARNESS

Height Extension

2шт.

6

84483640

WIRE HARNESS

Height/Tilt Extension

2шт.

7

47466662

CLEVIS

4шт.

8

47473855

CABLE

4шт.

9

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

11

118490

NUT,M12 x 1.75, Cl 8

12шт.

12

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

14

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

4шт.

15

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

4шт.

16

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

6шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

16шт.

18

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

19

353308

NUT,M6 x 1.0, Cl 8

8шт.

20

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

21

86566989

CABLE TIE,208mm L

15шт.

22

47425969

PLUG

2шт.

Выбрано товаров: 22
