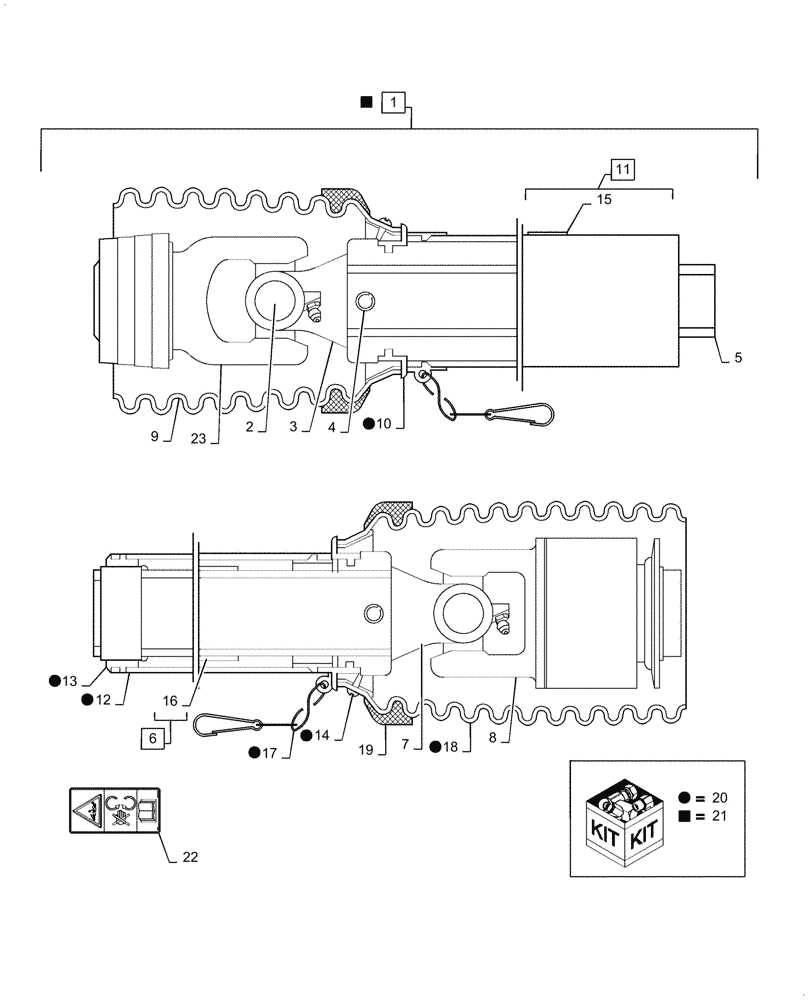

Запчасти Case IH 3020-30 (58.500.02[01]) - SHAFT, PTO, ASN YGH231300 (58) - ATTACHMENTS/HEADERS

1

47881263

SHAFT

PTO Assy, Incl 2 - 27

1шт.

2

161742

SPIDER

Cross And Bearing

2шт.

3

PA556924

YOKE

Inboard

1шт.

4

412690

PIN,10mm OD x 65mm L, Slotted

Spring

2шт.

5

9833879

PTO SHAFT

Inner Profile

1шт.

6

NS

NOT SERVICED

Profile And Sleeve

1шт.

7

1326493C1

YOKE

Inboard

1шт.

8

84444123

PTO CLUTCH

Free Motion

1шт.

9

47947983

GUARD

Cone

1шт.

10

728164

RING

Bearing Ring

2шт.

11

47947984

TUBE

Outer Guard

1шт.

12

47947985

TUBE

Inner Guard

1шт.

13

84444125

RING

Support Bearing

1шт.

14

86597706

SCREW,10mm

2шт.

15

849471

DANGER DECAL

Outer, Incl In Ref 11

1шт.

16

849472

DANGER DECAL

Inner, Incl In Ref 6

1шт.

17

379650

CHAIN

Retraint

2шт.

18

84444126

PROTECTING COVER

Guard Cone

1шт.

19

456679

COLLAR

Reinforcing

2шт.

20

84444121

PROTECTING COVER

Inner Guard Half, Incl Ref 10, 12 - 14, 17, 18, 22

1шт.

21

86525265

KIT

Applies To Ref 1

1шт.

22

86520062

DECAL

European

1шт.

23

47944807

YOKE

1 3/8"

1шт.

24

84444119

PTO SHAFT

1шт.

25

47944805

SHAFT

PTO, Half

1шт.

26

379650

CHAIN

Incl In Ref 19

2шт.

27

84287822

REPAIR KIT

Applies To Ref 8

1шт.
