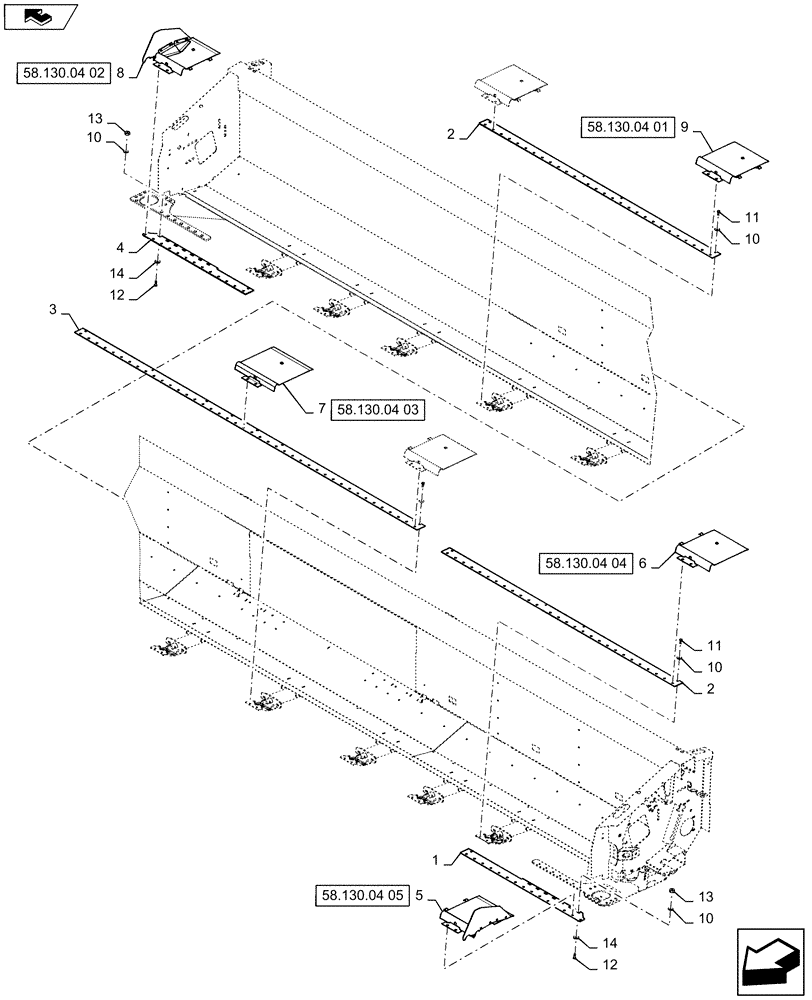

Запчасти Case IH 3020-30 (58.130.03[2]) - FLOOR, ASSY, DOUBLE DRIVE (58) - ATTACHMENTS/HEADERS

1

84126951

BAR

Cutterbar, LH

1шт.

1

84195556

CUTTERBAR

Cutterbar, Left Hand, Incl Harware

1шт.

2

84126953

BAR

Cutterbar, IN

2шт.

3

84353032

CUTTERBAR,3198.4mm L

Center

1шт.

4

84353041

CUTTERBAR,1191.2mm L

RH

1шт.

5

NSS

NOT SOLD SEPARAT

Floor Assy, LH End

1шт.

6

NSS

NOT SOLD SEPARAT

Floor Assy, LH

16шт.

7

NSS

NOT SOLD SEPARAT

Floor Assy, Center

1шт.

8

NSS

NOT SOLD SEPARAT

Floor Assy, RH Outer

1шт.

9

NSS

NOT SOLD SEPARAT

Floor Assy, RH

16шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

14шт.

13

100016

NUT,M10 x 1.5, Cl 8

14шт.

14

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

14шт.
