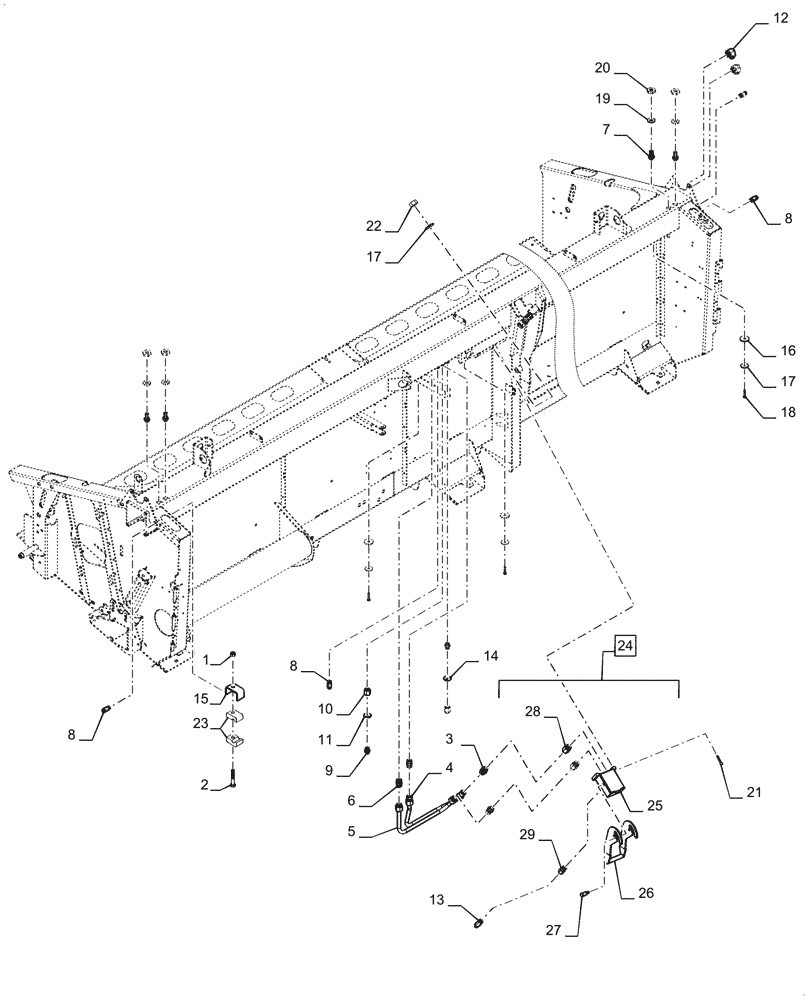

Запчасти Case IH 3020-30 (35.410.01) - HYDRAULIC SYSTEM, MULTI-COUPLER AND HARDWARE (35) - HYDRAULIC SYSTEMS

1

353308

NUT,M6 x 1.0, Cl 8

1шт.

2

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

3

86603051

HYD CONNECTOR,1" - 14 ORFS x 3/4" - 16 ORB

3/4"-16 x 1"-14

2шт.

4

84139301

HYD TUBE,16.00 mm OD

Header Hydraulic System

1шт.

5

87654201

HYD TUBE,.625" OD

Header Hydraulic System

1шт.

6

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

7

86978770

UNION,11/16"-6, ORFS

4шт.

8

84431546

UNION,11/16"-16 ORFS

4шт.

9

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

10

84062491

HYD CONNECTOR,11/16"-16 M ORFS x M18 x 1.5 Fem

1шт.

11

385686

ORIFICE

Valve Restrictor

1шт.

12

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

2шт.

13

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

14

84206574

RESTRICTOR

Valve

1шт.

15

433101

SUPPORT

1шт.

16

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

19

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

20

87010704

BHD LOCK NUT,11/16"-16

4шт.

21

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

22

9706690

NUT,M8 x 1.25, Cl 8

4шт.

23

433008

CLAMP

2шт.

24

84434997

COUPLING

Quick, Inc. 25-29

1шт.

25

84435044

GUARD

Protection

1шт.

26

86623901

HANDLE

Quick Coupling

1шт.

27

86623902

LATCH

Quick Coupling

1шт.

28

84435046

COUPLING

Female, (Not Shown)

2шт.

29

84435047

COUPLING, QUICK, FEM

(Not Shown)

3шт.
