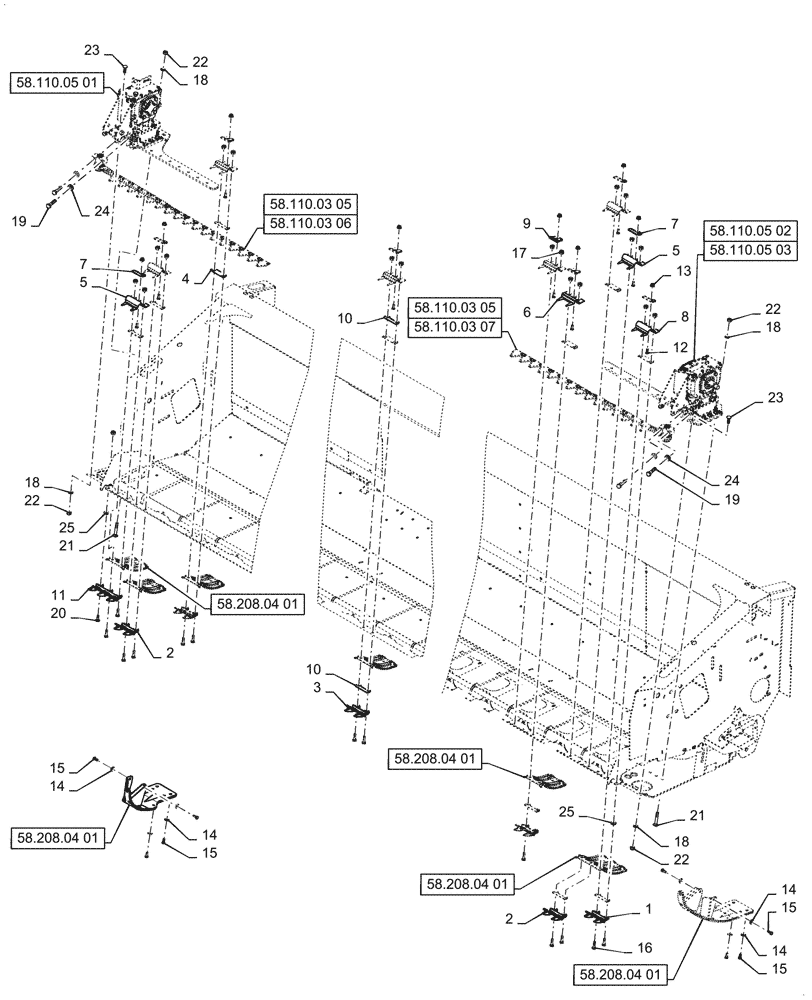

Запчасти Case IH 3020-30 (58.110.04[04]) - CUTTERBAR, STUB GUARD, DOUBLE DRIVE (58) - ATTACHMENTS/HEADERS

1

84409315

GUARD

Stub, LH End

1шт.

2

84409304

GUARD

Stub, LH

6шт.

3

84409307

GUARD

Stub, Center, 30FT

52шт.

3

84409307

GUARD

Stub, Center, 35FT

62шт.

4

84395857

SHIM,33mm OD x 2.1mm Thk

Knife Guard, 30FT

82шт.

4

84395857

SHIM,33mm OD x 2.1mm Thk

Knife Guard, 35FT

97шт.

5

84409311

KNIFE CLIP

Knife Special

7шт.

6

84396057

KNIFE CLIP

Knife, HCRC, 30FT

52шт.

6

84396057

KNIFE CLIP

Knife, HCRC, 35FT

62шт.

7

84409309

ADJUSTING PLATE

HCRC

8шт.

8

84409313

KNIFE CLIP

LH

1шт.

9

84396059

STEEL PLATE

Adjusting, 30FT

52шт.

9

84396059

STEEL PLATE

Adjusting, 35FT

62шт.

10

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard, 30FT

61шт.

10

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard, 35FT

71шт.

11

84395855

GUARD

Triple

1шт.

12

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

30FT

60шт.

12

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

35FT

70шт.

13

86619802

FLANGE NUT,M10 x 1.5, Cl 8

30FT

60шт.

13

86619802

FLANGE NUT,M10 x 1.5, Cl 8

35FT

70шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

16

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

30FT

120шт.

16

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

35FT

140шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

30FT

121шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

35FT

141шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

10шт.

19

120092

BOLT,M16 x 70mm, Cl 8.8

4шт.

20

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

21

84818450

CARRIAGE BOLT,M12 x 85mm, Cl 8.8

6шт.

22

9706685

NUT,M12 x 1.75, Cl 8

10шт.

23

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

24

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

25

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

2шт.
