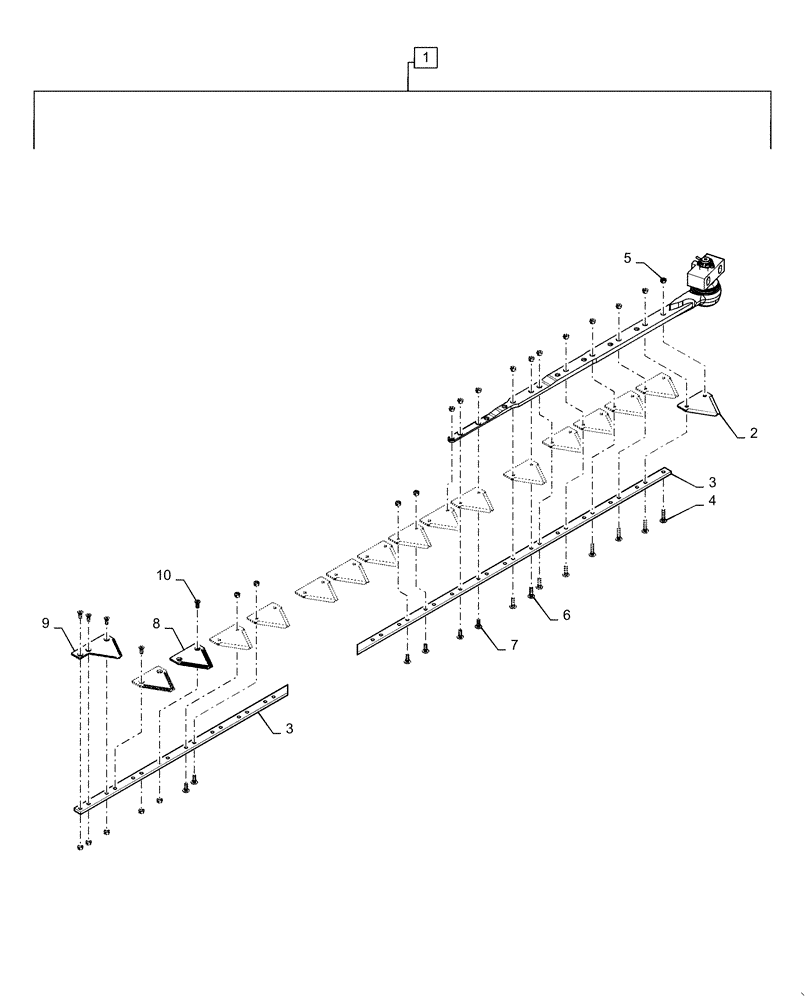

Запчасти Case IH 3020-30 (58.110.03[05]) - KNIFE ASSY, SPARES, DD, LH (58) - ATTACHMENTS/HEADERS

1

84170820

KNIFE

Assy, 30ft, LH

1шт.

1

87489671

KNIFE

Assy, 35ft, LH

1шт.

2

87728905

KNIFE SECTION

Section, 30ft

58шт.

2

87728905

KNIFE SECTION

Section, 35ft

68шт.

3

84172856

KNIFE

Back, Knife, LH

1шт.

3

87489680

BAR

Back, Knife, LH

1шт.

4

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

9шт.

5

84429102

LOCK NUT

30ft

123шт.

5

84429102

LOCK NUT

35ft

143шт.

6

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

4шт.

7

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

30ft

103шт.

7

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

35ft

123шт.

8

87470187

KNIFE SECTION

2шт.

9

87470188

KNIFE SECTION

Tomahawk

1шт.

10

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

Overlap Knife Section

7шт.
