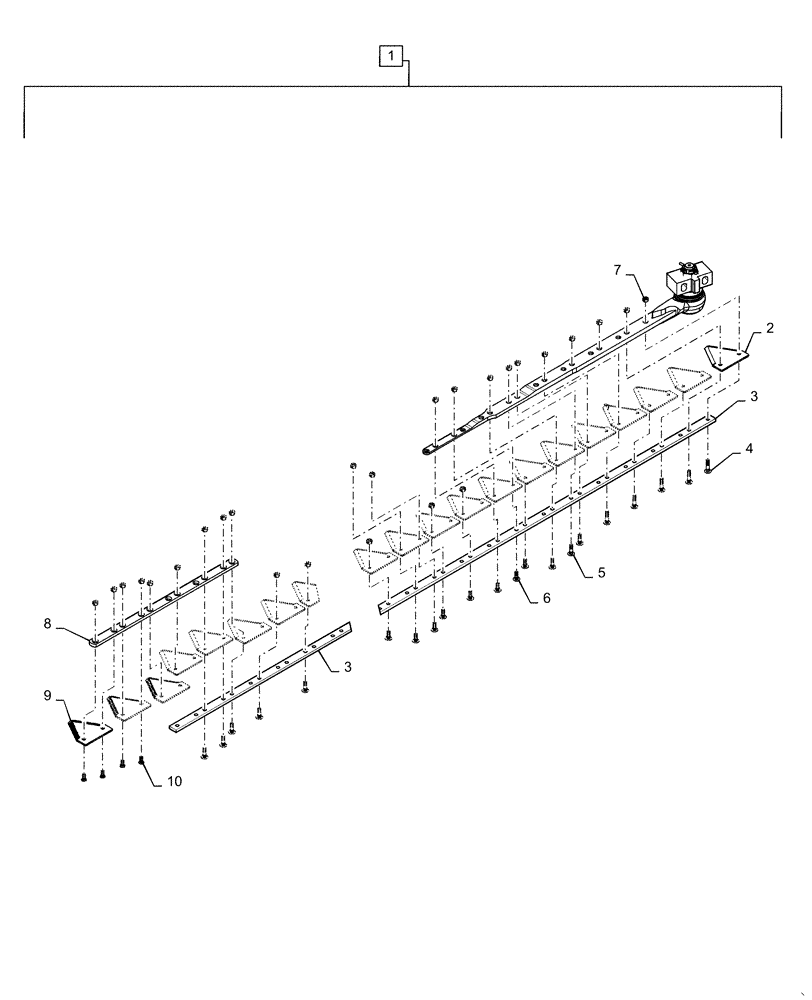

Запчасти Case IH 3020-30 (58.110.03[04]) - KNIFE ASSY, SPARES, DD, RH (58) - ATTACHMENTS/HEADERS

1

84170823

KNIFE

Assy, 30ft RH

1шт.

1

87493457

KNIFE

Assy, 35ft RH

1шт.

2

87728905

KNIFE SECTION

Section, 30ft

57шт.

2

87728905

KNIFE SECTION

Section, 35ft

67шт.

3

84172857

KNIFE

Back, Knife, 30ft

1шт.

3

87489695

KNIFE

Back, Knife, 35ft

1шт.

4

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

9шт.

5

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

9шт.

6

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

30ft

96шт.

6

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

35ft

116шт.

7

84429102

LOCK NUT

30ft

120шт.

7

84429102

LOCK NUT

35ft

140шт.

8

87488453

LATH

1шт.

9

87470186

KNIFE SECTION

CSB

3шт.

10

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

Overlap Knife Section

6шт.
