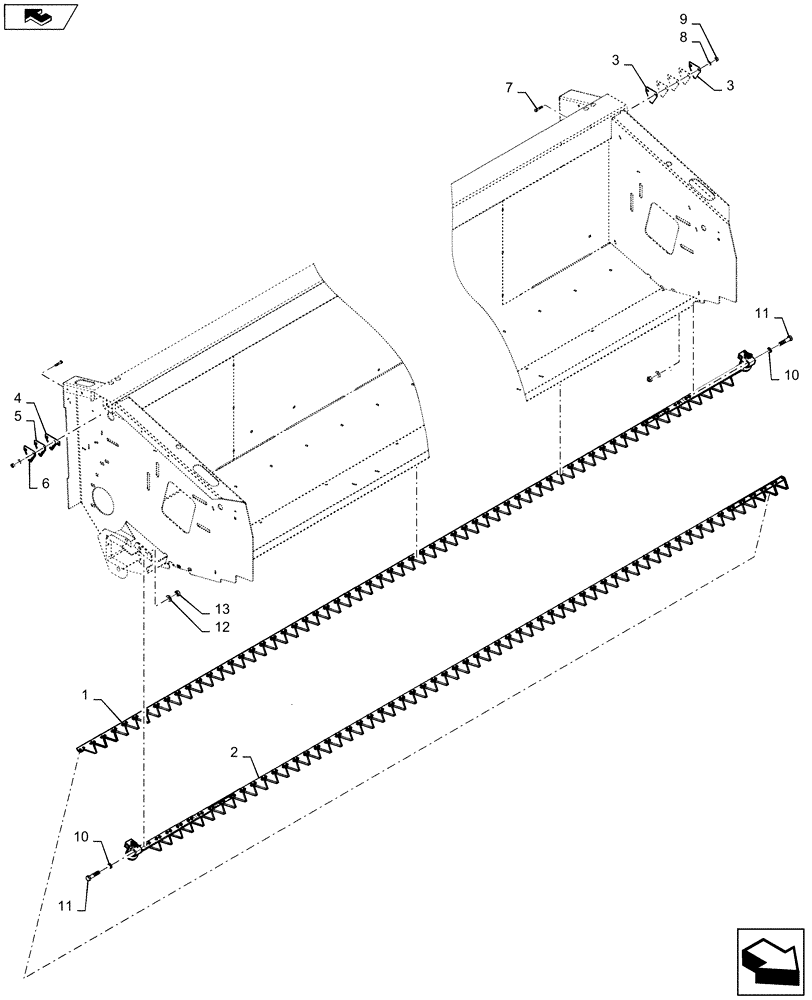

Запчасти Case IH 3020-30 (58.110.03[03]) - KNIFE ASSEMBLY, SPARES, COARSE, DD (58) - ATTACHMENTS/HEADERS

1

84170820

KNIFE

LH, 30'

1шт.

1

87489671

KNIFE

LH, 35'

1шт.

2

84170823

KNIFE

RH, 30'

1шт.

2

87493457

KNIFE

RH, 35'

1шт.

3

87728905

KNIFE SECTION

5шт.

4

87470188

KNIFE SECTION

Tomahawk

1шт.

5

87470187

KNIFE SECTION

1шт.

6

87470186

KNIFE SECTION

1шт.

7

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

9

9706755

NUT,M6, Cl 8

4шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

, Serial Range: -YDH220752

4шт.

10

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

, Start Serial: YDH220752

4шт.

11

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

, Serial Range: -YDH220752

4шт.

11

120092

BOLT,M16 x 70mm, Cl 8.8

, Start Serial: YDH220752

4шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Serial Range: -YDH220752

4шт.

12

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

, Start Serial: YDH220752

4шт.

13

337475

NUT,M12, Cl 10

, Serial Range: -YDH220752

4шт.

13

392530

NUT,M16, Cl 10

, Start Serial: YDH220752

4шт.
