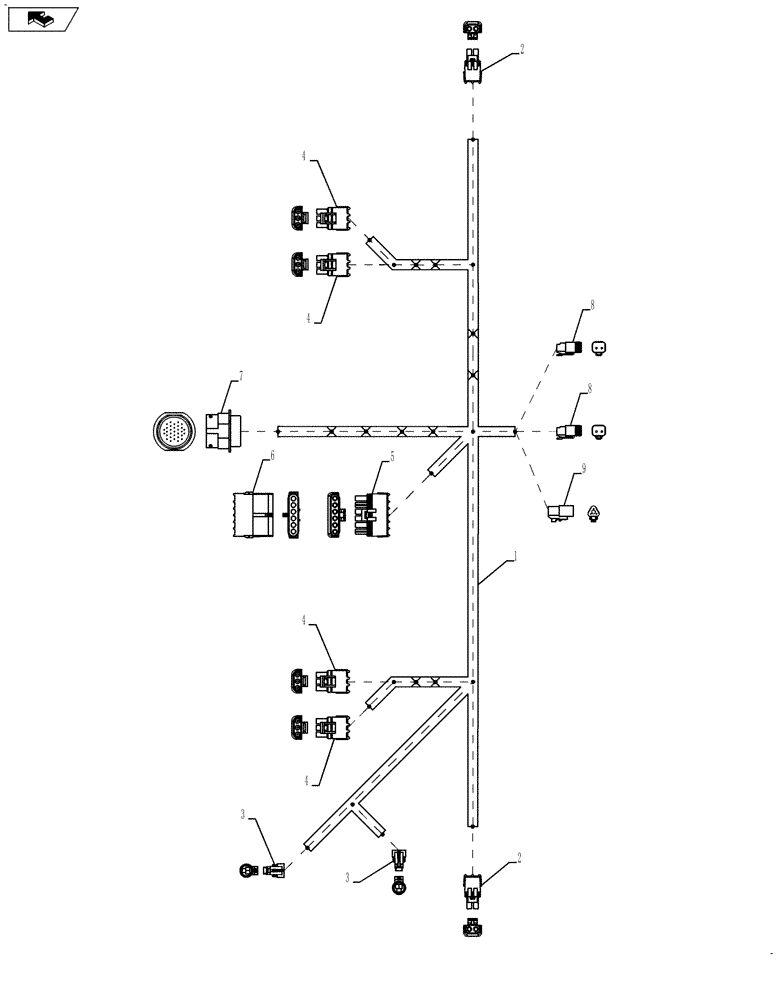

Запчасти Case IH 3020-30 (55.100.02) - HARNESS, FLEX HEADER (55) - ELECTRICAL SYSTEMS

1

84305206

WIRE HARNESS

Flex Header, Inc. 2-9

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

2-Pin, Right Hand And Left Hand Flashing Light

2шт.

3

84078681

WIRE CONNECTOR,Female

2-Pin, Reel Vertical Position, Reel Horizontal Position

2шт.

4

87644909

WIRE CONNECTOR,Female, 3 Pins

3-Pin, Left Center Height, Left Hand Height/Tilt, Right Hand Height/Tilt, Right Center Height

4шт.

5

87039236

ELEC CONNECTOR

6-Pin, Header Type

1шт.

6

86837775

RESISTOR

Module

1шт.

7

87703820

ELEC CONNECTOR

31-Pin, Feeder

1шт.

8

87711966

PLUG

2-Pin, Flex Solenoid #1 And #2

2шт.

9

87695580

ELEC CONNECTOR,Female, 3 Pole

3-Pin, Flex Pressure Read

1шт.
