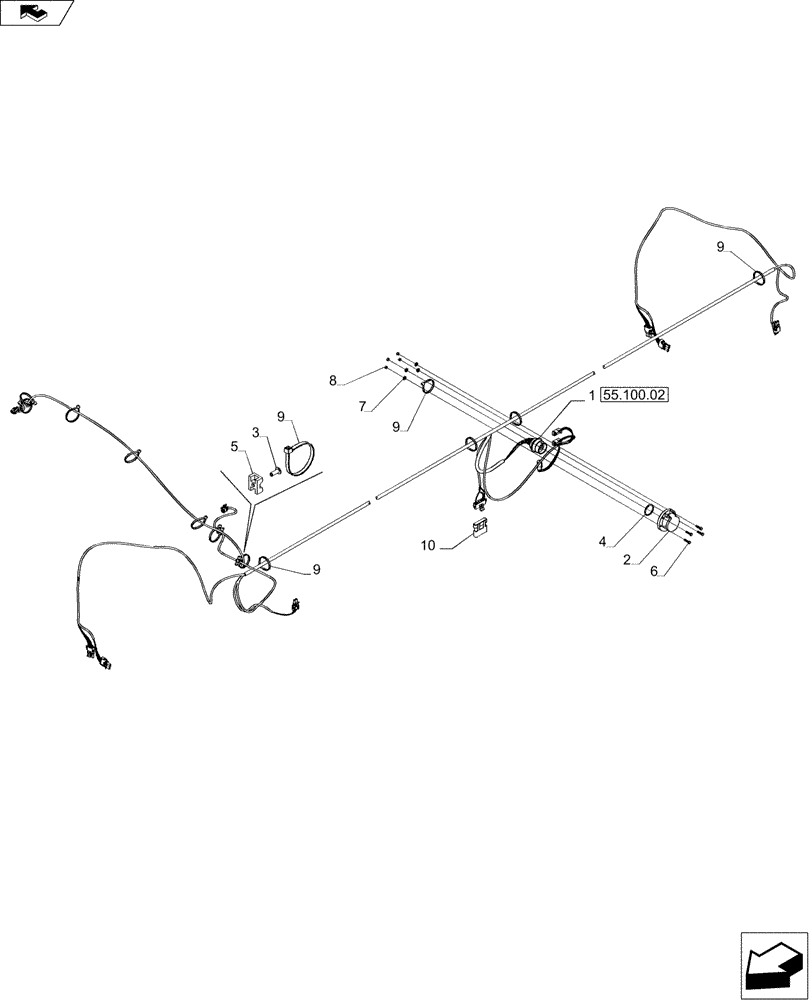

Запчасти Case IH 3020-30 (55.100.01) - HARNESS, FLEX HEADER, MOUNTING (55) - ELECTRICAL SYSTEMS

1

84305206

WIRE HARNESS

Flex Header

1шт.

2

86606228

COVER

1шт.

3

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

4

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

6

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

7

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

8

86508813

NUT,M5, Cl 8

4шт.

9

86566989

CABLE TIE,208mm L

12шт.

10

86837775

RESISTOR

1шт.
