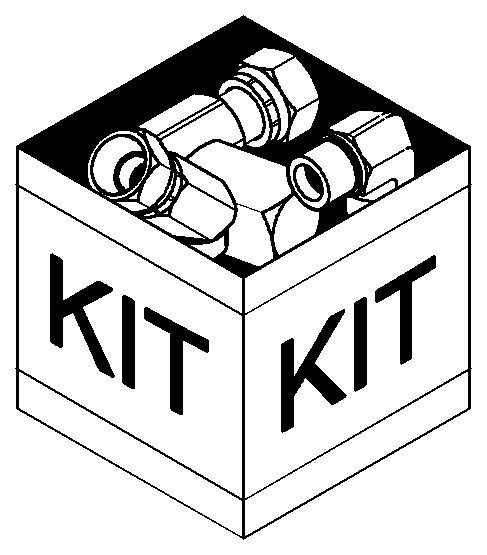

Запчасти Case IH 3020-30 (88.058.13[01]) - CUTTER BAR REBUILD KIT STD GUARD SINGLE DR 30FT W/O KNIFE (88) - ACCESSORIES

1

47761085

KIT

Includes 2 - 14

1шт.

2

84245171

GUARD

3"

1шт.

3

87702974

GUARD

3"

4шт.

4

84422134

KNIFE CLIP

2шт.

5

87702973

GUARD

3"

56шт.

6

86630786

KNIFE CLIP,Heat Treated

28шт.

7

86630787

KNIFE CLIP

28шт.

8

84422992

ADJUSTING PLATE

2шт.

9

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

60шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

122шт.

11

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

60шт.

12

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

30шт.

13

86619802

FLANGE NUT,M10 x 1.5, Cl 8

30шт.

14

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.
