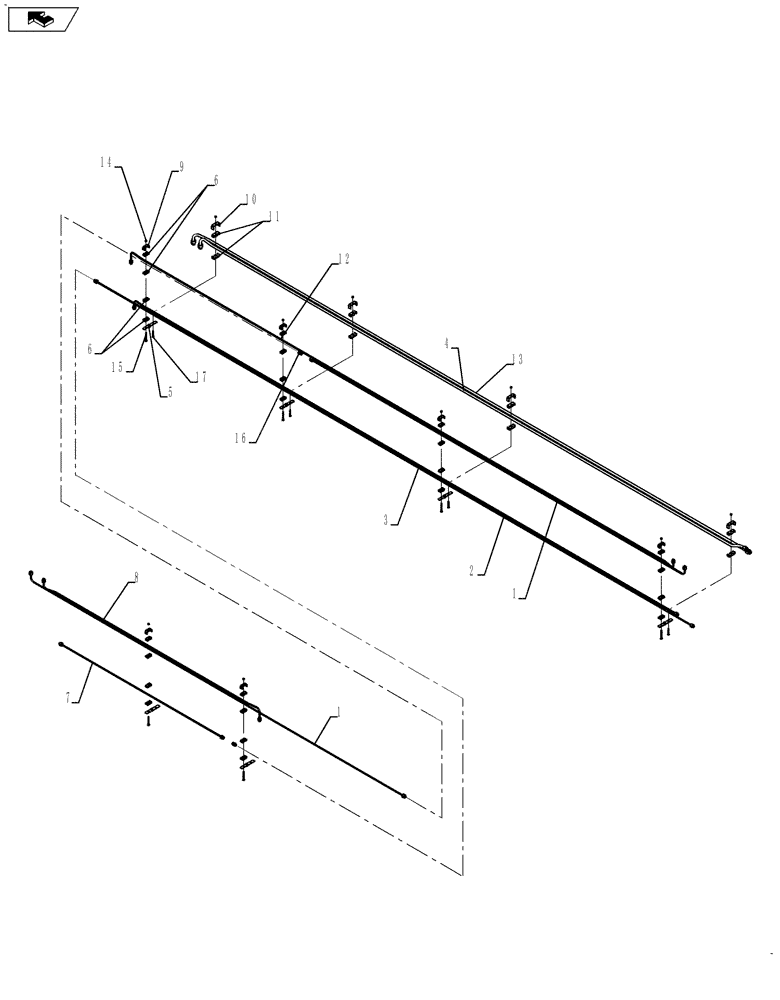

Запчасти Case IH 3020-25 (35.410.02[01]) - STANDARD HYDRAULIC SYSTEM, 25 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

87654196

HYD TUBE,.375" OD

Header Hydraulic System

2шт.

2

84139195

HYD TUBE,8.00 mm OD x 5989.80 mm L

Header Hydraulic System

1шт.

3

84139193

HYD TUBE,8.00 mm OD

Header Hydraulic System

1шт.

4

84146810

HYD TUBE,16 mm OD

Header Hydraulic System

1шт.

5

84140859

BRACKET

Hydraulic Tube Clamps

6шт.

6

430357

CLAMP

Hydraulic Tubes

24шт.

7

84146790

HYD TUBE,8 mm OD x 1641.20 mm L

Header Hydraulic System

1шт.

8

84146787

HYD TUBE,8 mm OD

Header Hydraulic System

1шт.

9

431941

SUPPORT

Hydraulic Tube Clamps

6шт.

10

84814948

SUPPORT

Hydraulic Tube Clamps

4шт.

11

430356

CLAMP

Hydraulic Tubes

8шт.

12

84146803

HYD TUBE,8 mm OD

Header Hydraulic System

1шт.

13

84139174

HYD TUBE,16.00 mm OD

Header Hydraulic System

1шт.

14

353308

NUT,M6 x 1.0, Cl 8

10шт.

15

86512419

CARRIAGE BOLT,Sq Nk, M6 x 70mm, Cl 8.8

6шт.

16

84431546

UNION,11/16"-16 ORFS

4шт.

17

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

4шт.
