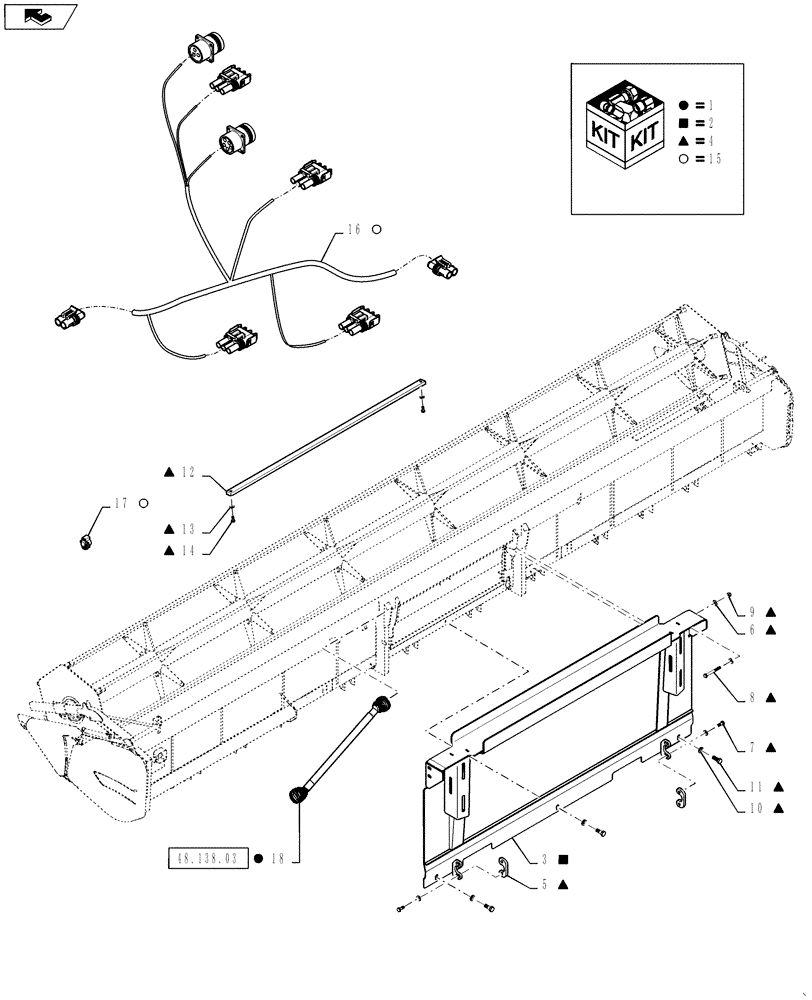

Запчасти Case IH 3020-25 (88.058.02) - KIT, CONVERSION FOR 21/23/2500 COMBINES (88) - ACCESSORIES

1

84480201

CONVERSION KIT

21/23/2500 Combines, Inc. 2, 15, 18

1шт.

2

84478408

SERVICE KIT

Frame, Adapter, Inc. 3 And 4

1шт.

3

84192170

ADAPTER

1шт.

4

84423629

SERVICE KIT

Adapter Kit Hardware, Inc. 5 - 14

1шт.

5

87061093

LATCH

Header Adapter

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

7

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

8

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

4шт.

9

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

10

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

4шт.

11

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

3шт.

12

84478409

BRACKET

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

84480170

SERVICE KIT

Adapter, Electrical, Inc. 16 And 17

1шт.

16

84473623

WIRE HARNESS

Adapter Kit

1шт.

17

86616380

SENSOR

Field Tracker

2шт.

18

84479134

PTO SHAFT

Inc. 19

1шт.

19

84481701

YOKE

4-S4 RT Ball 1-1/8 Hex, (Not Shown)

1шт.
